CTS - TT-70/500 - 2004 - Refrigeration system
- Current bid
- Status
Total bid amount
See total breakdown
Total bid amount
See total breakdown
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- CTS
- Own weight
- 800kg
- Type of refrigerant
- R404A
- Total dimension W
- 1100mm
- Total dimension Height
- 1200mm
- Total dimension L
- 2600mm
- Type
- TT-70/500
- Year of build
- 2004
Description

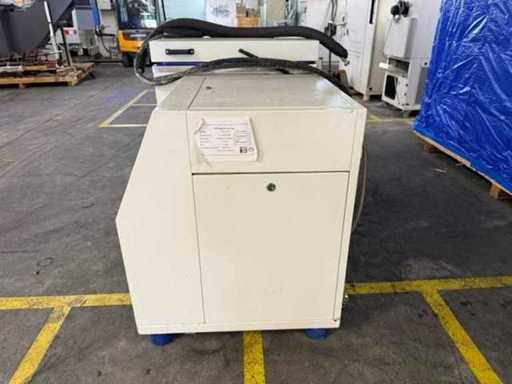

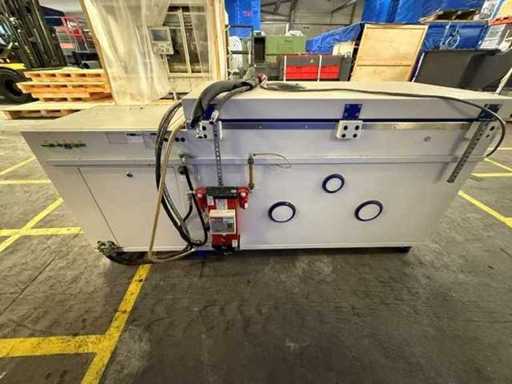

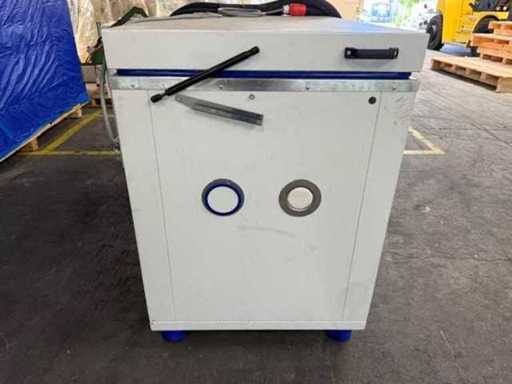

CTS Temperature Test Chamber TT-70/500 | Climatic Test Chamber | -70 °C to +180 °C | 500 litres
For sale is a high-quality CTS temperature test chamber TT-70/500.
The test chamber is ideal for temperature testing of components, materials, electronics, automotive components, and research and development applications.
Due to the wide temperature range of -70 °C to +180 °C, both cold and heat tests can be carried out under reproducible conditions.

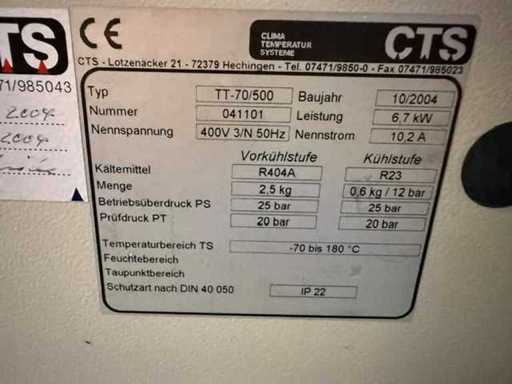

Technical data
Manufacturer: CTS – Clima Temperature Systems
Model No.: TT-70/500
Year of manufacture: 10/2004
Test room volume: approx. 500 litres
Temperature range: -70 °C to +180 °C
Operating voltage: 400V/3N/50Hz
Connected load: 6.7 kW
Rated current: 10.2 A
Degree of protection: IP22
Refrigerants
Pre-cooling:
R404A
2.5 kg
Cooling level:
R23
0.6 kg
Facilities

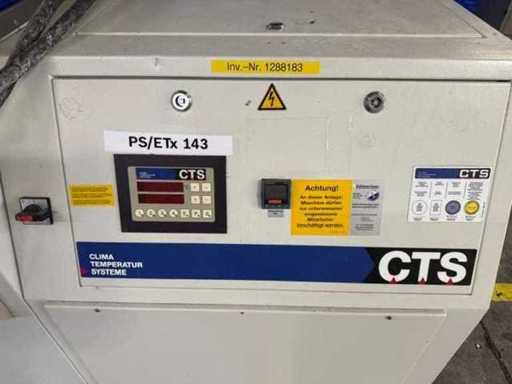

Digital CTS control panel
Stainless steel test chamber
Multiple slide-in levels
Cable grommets in the test room
Powerful two-stage refrigeration system
Temperature tests in the range of -70 °C to +180 °C
Condition
The test chamber comes from an industrial company and is in used condition with usual signs of use.

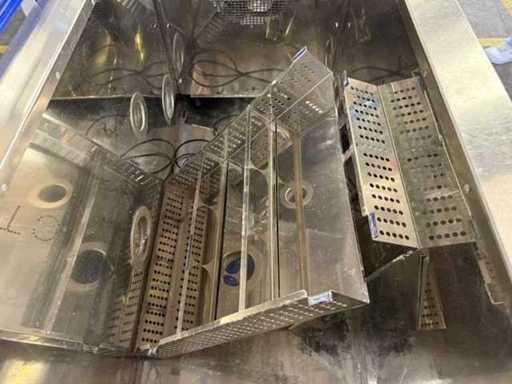

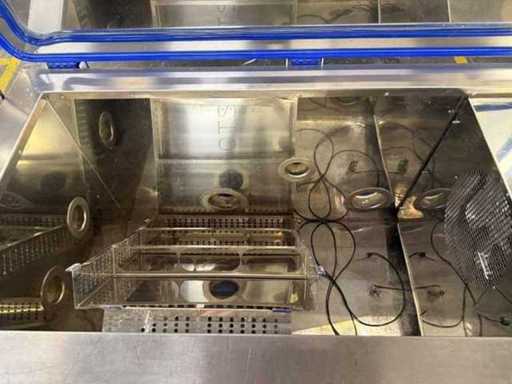

The stainless steel interior is clean and equipped with several inserts.
Functionality untested.
Additional details
For loading conditions, see item specification.
Pick-up 19.08. and 20.08.2026 from 09:00 - 14:00.
For contact, see invoice (last page).
