DREISBACH & JUNGMANN - 2020 - Automated production line
- Current bid
- Status
Total bid amount
See total breakdown
Total bid amount
See total breakdown
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- DREISBACH & JUNGMANN
- Type
- Hydrobox
- Year of build
- 2020
- Serial number
- 010820
- CNC control, brand, type
- SPS Steurung Siemens TIA
- Electric connection
- 400V
- Manual present
- Yes
- Terms of delivery
- Ex foundation-unpackaged
Description

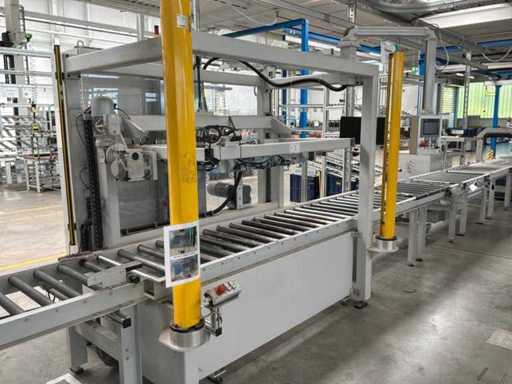

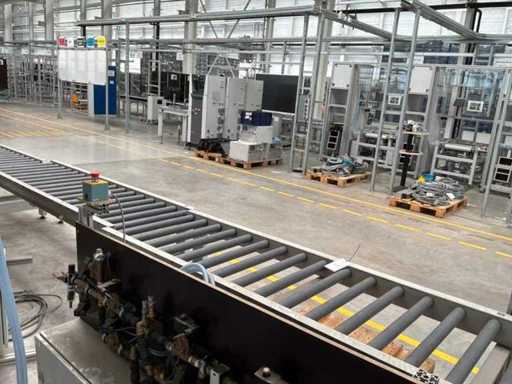

Fully automatic assembly and packaging line for the production of Hydrobox assemblies. The special system consists of extensive conveyor technology with roller and belt conveyors, separation and buffer systems, automated packaging stations, test modules as well as safety and control technology. The system is specifically designed for a continuous production process and is suitable for industrial assembly, packaging and material handling applications.
Technical data

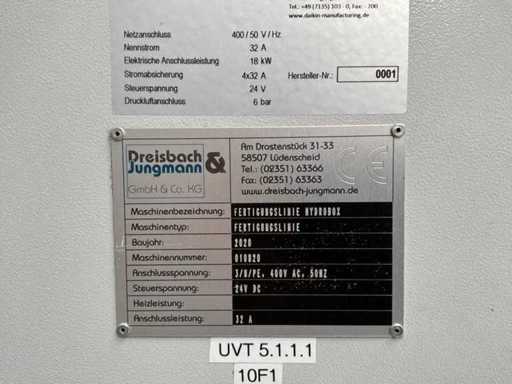

* Manufacturer of the entire system: Dreisbach & Jungmann GmbH & Co. KG
* Machine name: Hydrobox
production line * Plant type: Assembly and packaging line
* Year of construction: 2020
* Machine number: 010820
* Mains connection: 3/N/PE, 400 V AC, 50 Hz
* Connected load: 18 kW
* Connection current: 32 A
* Control voltage: 24V DC
* Compressed air connection: 6 bar
Plant components

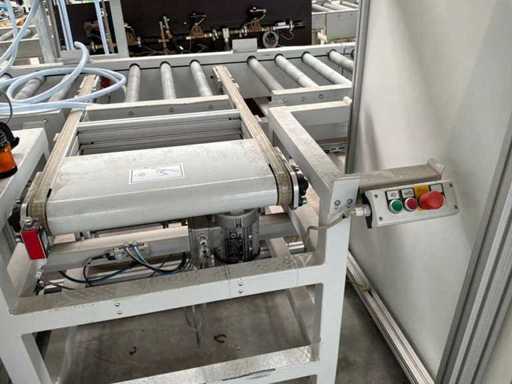

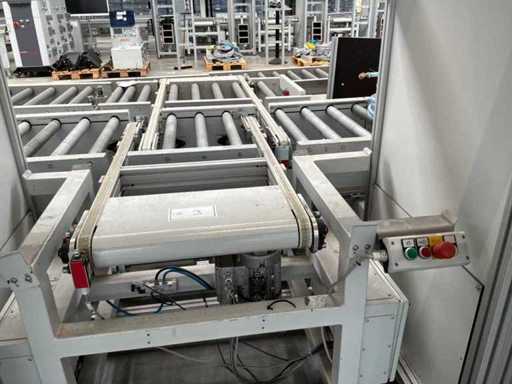

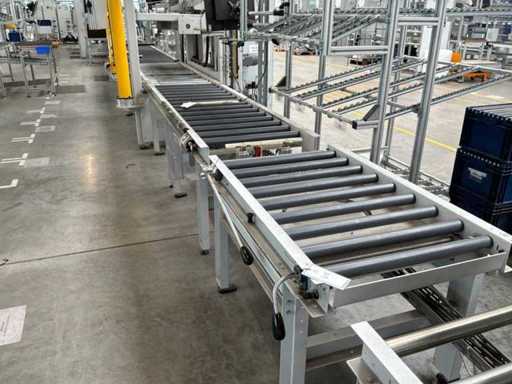

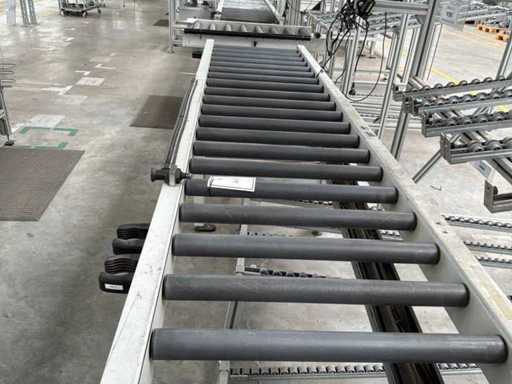

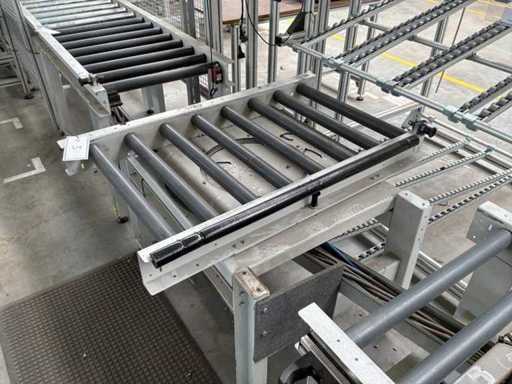

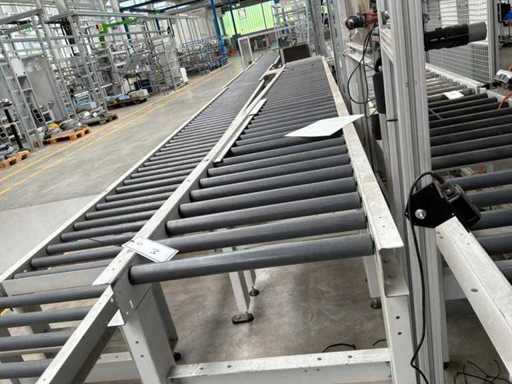

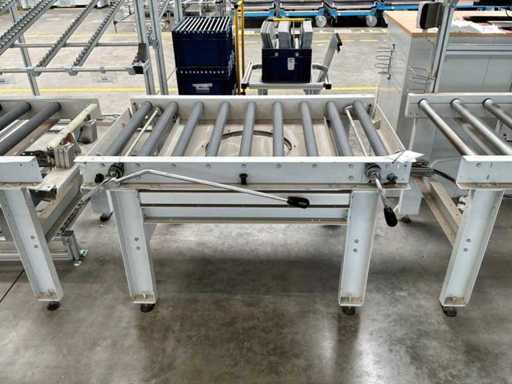

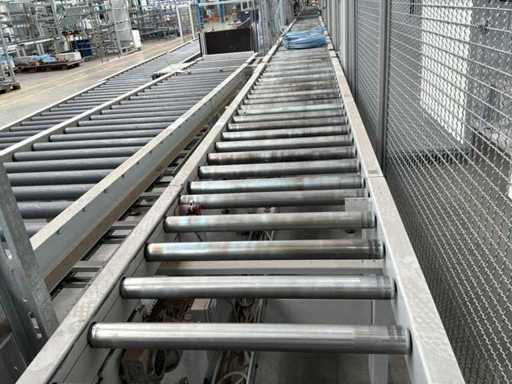

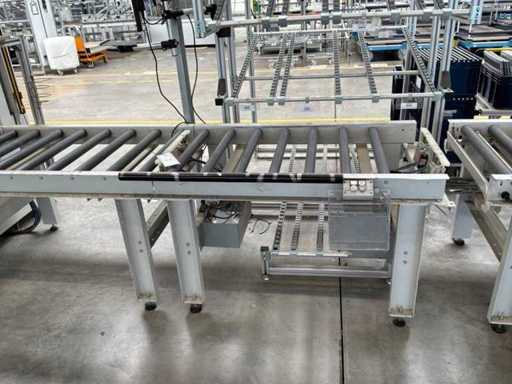

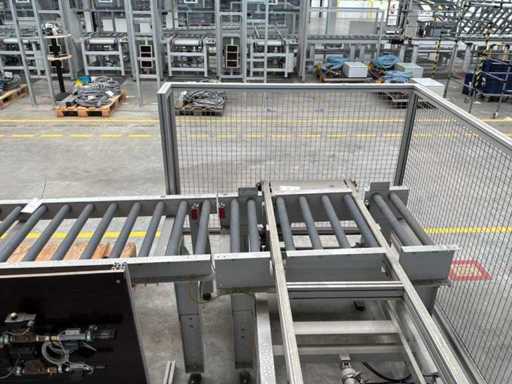

* Fully automatic roller conveyor technology

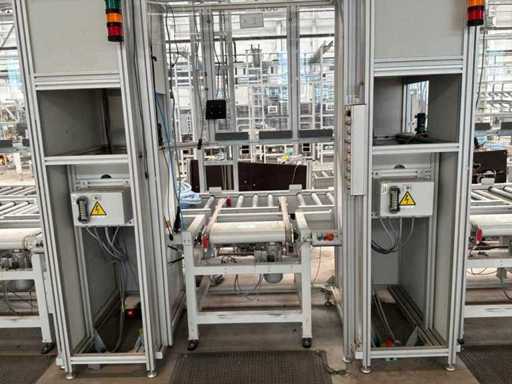

* 3x separation and separation station
* Several buffer sections

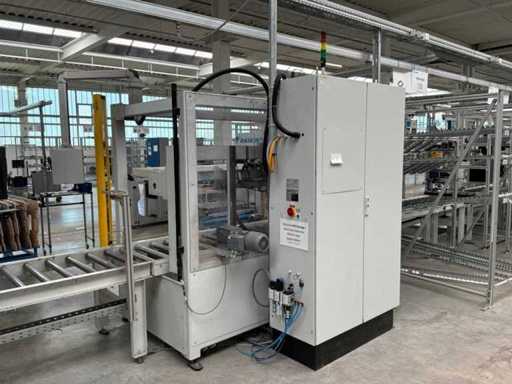

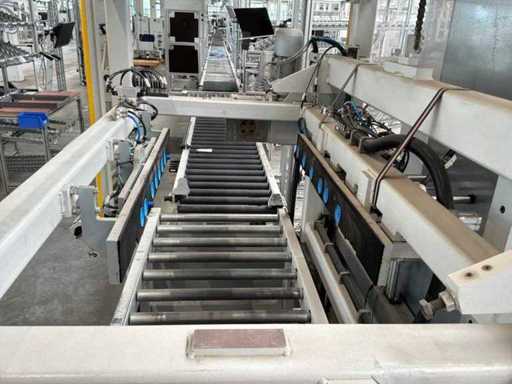

* Automatic packing station
* Approx. 30 meters of partially automated belt conveyors

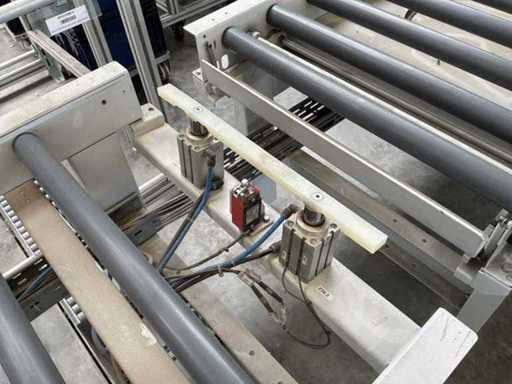

* 4x Workpiece Transfer Conveyor

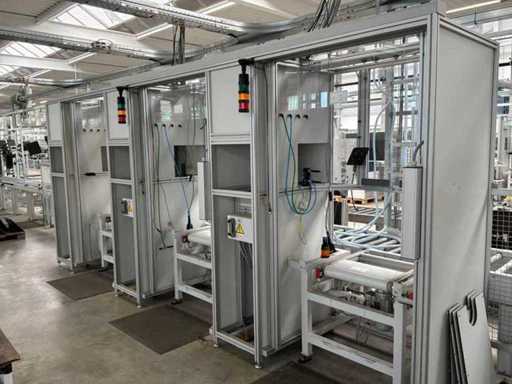

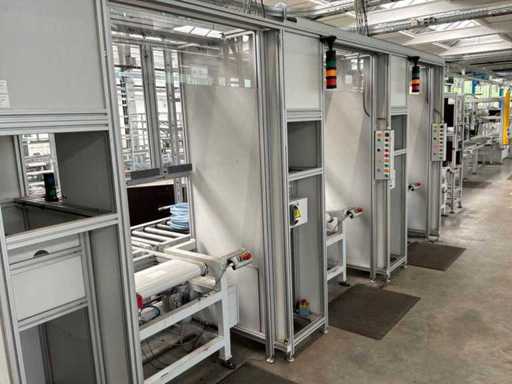

* Safety enclosures
* Light barriers and protective devices
* TIA Siemens PLC controlled automation

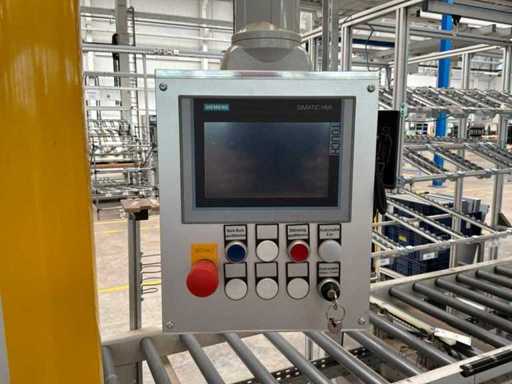

* Control panels and control panels

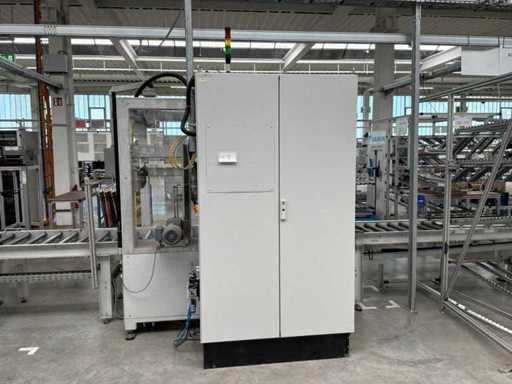

* Control cabinet system
* Signal and status lights
Transport dimensions approx. (L x W x H):
Packing station: 2200 x 1500 x 2200 mm
Per separation and separation station: 1900 x 1100 x 2350 mm
Control cabinet: 1200 x 500 x 2200mm
Belt conveyor multi-part : L = 30000 x 800 x 800 mm
Technical data
* Manufacturer of the entire system: Dreisbach & Jungmann GmbH & Co. KG
* Machine name: Hydrobox
production line * Plant type: Assembly and packaging line
* Year of construction: 2020
* Machine number: 010820
* Mains connection: 3/N/PE, 400 V AC, 50 Hz
* Connected load: 18 kW
* Connection current: 32 A
* Control voltage: 24V DC
* Compressed air connection: 6 bar
Plant components
* Fully automatic roller conveyor technology
* 3x separation and separation station
* Several buffer sections
* Automatic packing station
* Approx. 30 meters of partially automated belt conveyors
* 4x Workpiece Transfer Conveyor
* Safety enclosures
* Light barriers and protective devices
* TIA Siemens PLC controlled automation
* Control panels and control panels
* Control cabinet system
* Signal and status lights
Transport dimensions approx. (L x W x H):
Packing station: 2200 x 1500 x 2200 mm
Per separation and separation station: 1900 x 1100 x 2350 mm
Control cabinet: 1200 x 500 x 2200mm
Belt conveyor multi-part : L = 30000 x 800 x 800 mm
