EFS - RatioLift L150 - 2020 - Lift System
- Current bid
- Status
Total bid amount
See total breakdown
Total bid amount
See total breakdown
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- EFS
- Type
- RatioLift L150
- Year of build
- 2020
- Serial number
- 20022010-M1
- Platform size l
- 7000mm
- Platform size w
- 5500mm
- Capacity
- 60kg
- Lifting height
- 2800mm
- Total dimension L
- 8000mm
- Total dimension W
- 6500mm
- Total dimension Height
- 3100mm
- Terms of delivery
- Ex foundation-unpackaged
Description
Technical data

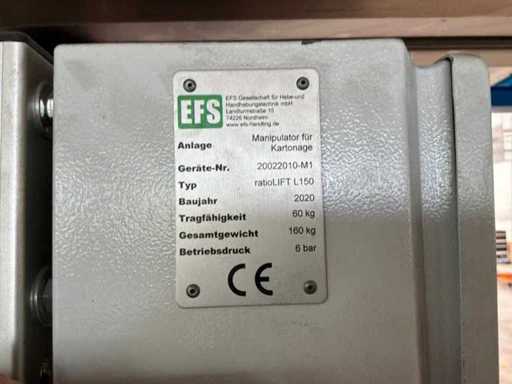

* Manufacturer: EFS Gesellschaft für Hebe- und Handhabungstechnik mbH

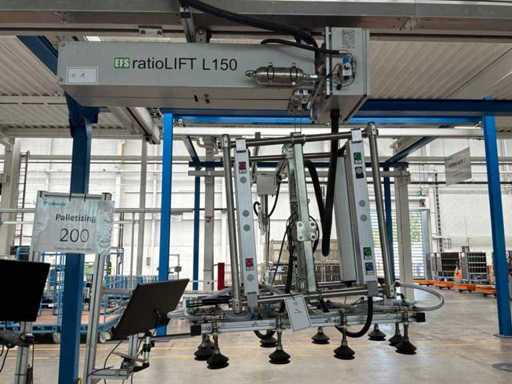

* Model: ratioLIFT L150
* System type: Manipulator * Device No.: 20022010-M1
* Year of construction: 2020
* Load capacity: 60 kg
* Weight manipulator: 160 kg
* Operating pressure: 6 bar

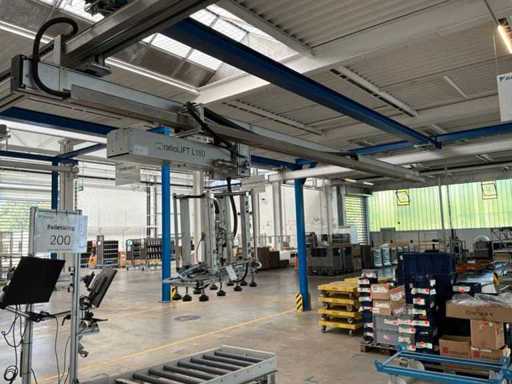

* Lifting System: Pneumatic Vacuum Lifter

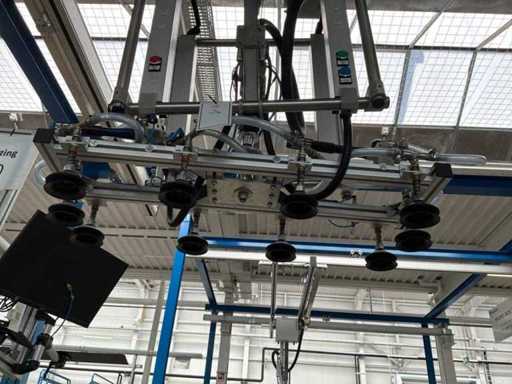

* Pick-up system: Multi-suction cup

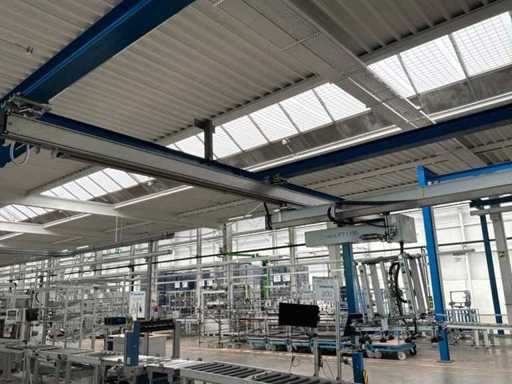

* Guide: Aluminum low-friction crane runway
Scope of Delivery
* EFS ratioLIFT L150
* Vacuum suction cup
* Aluminum running rail
* Carriage
* Pneumatic regulator unit
* Control handle

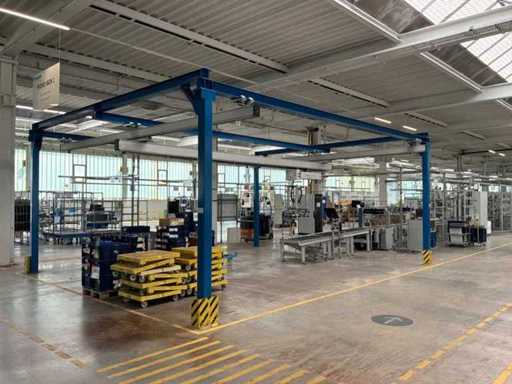

* Complete crane runway system
Overall dimensions approx. (L x W x H) 8000 x 6500 x 3100 mm
Total weight is unknown
* Manufacturer: EFS Gesellschaft für Hebe- und Handhabungstechnik mbH
* Model: ratioLIFT L150
* System type: Manipulator * Device No.: 20022010-M1
* Year of construction: 2020
* Load capacity: 60 kg
* Weight manipulator: 160 kg
* Operating pressure: 6 bar
* Lifting System: Pneumatic Vacuum Lifter
* Pick-up system: Multi-suction cup
* Guide: Aluminum low-friction crane runway
Scope of Delivery
* EFS ratioLIFT L150
* Vacuum suction cup
* Aluminum running rail
* Carriage
* Pneumatic regulator unit
* Control handle
* Complete crane runway system
Overall dimensions approx. (L x W x H) 8000 x 6500 x 3100 mm
Total weight is unknown
Remarks
Unaudited
Brought
Additional details
Verladebedingungen: siehe Artikelspezifikationen.
Abholtermine und Kontakt: siehe Rechnung (letzte Seite).
Eine Verladung durch den Verkäufer kann nur bei einzelnen Artikeln und nur nach Rücksprache mit dem Verkäufer erfolgen. Ansonsten werden die Artikel ab Fundament verkauft.
Geschäftskäufer aus der Europäischen Union (EU) und Nicht-EU-Ländern (Drittländer) sind verpflichtet, auf ihren Gesamtkauf eine Kaution an Troostwijk Deutschland zu zahlen. Diese Kaution wird auf Grundlage des in der Bundesrepublik Deutschland geltenden Mehrwertsteuersatzes berechnet. Nach Bestätigung, dass die erworbene Position die EU verlassen hat, wird die Kaution an den Käufer zurückerstattet:
• EU-Käufer müssen Troostwijk Deutschland eine sog. Gelangsbestätigung [laden Sie dafür die hier beigefügte Vorlage „Template_Intra-Community Supply (DE-EN)” herunter] ausgefüllt an export.de@troostwijkauctions.com zurückschicken, um die Kaution zurückerstattet zu bekommen.
• Nicht-EU-Käufer müssen eine Kopie der elektronischen Ausfuhrmeldung (EX-A mit MRN - nur zur Prüfung) oder bei niedrigerem Warenwert einer abgeschlossenen Ausfuhrerklärung mit einem Stempel von der EU-Grenzzollstelle an export.de@troostwijkauctions.com zurückschicken, um die Kaution zurückerstattet zu bekommen.
