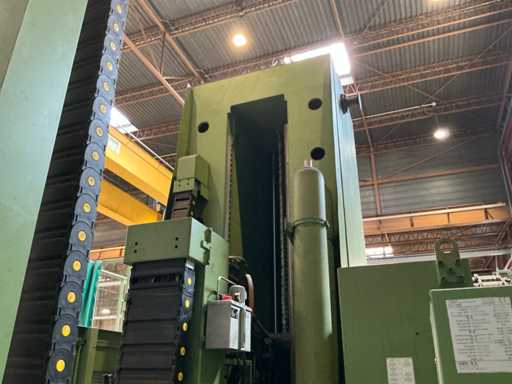

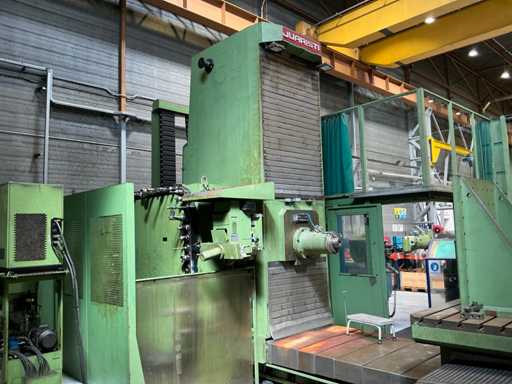

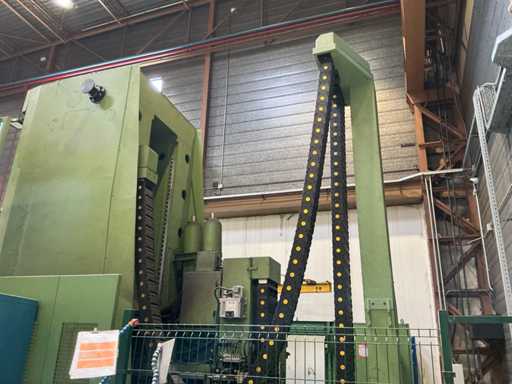

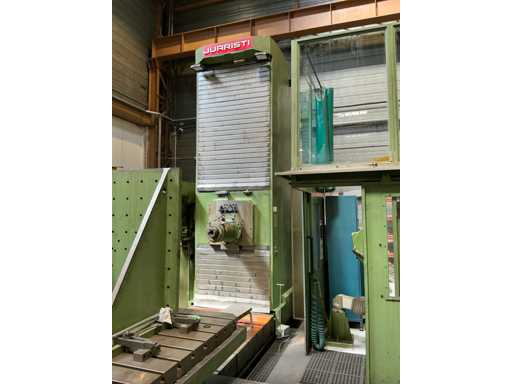

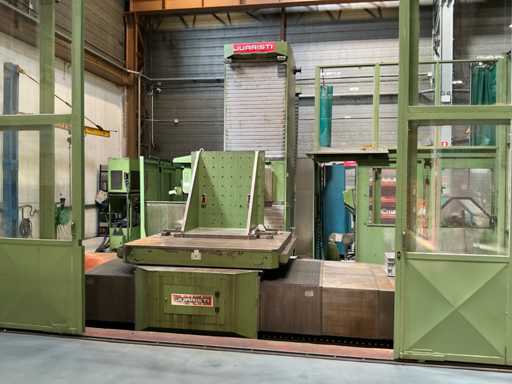

JUARISTI TS 5 Sliding column milling machine - 2009
- Current bid
- Status
Total bid amount
See total breakdown
Total bid amount
See total breakdown
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- JUARISTI
- Type
- TS 5
- Year of build
- 2009

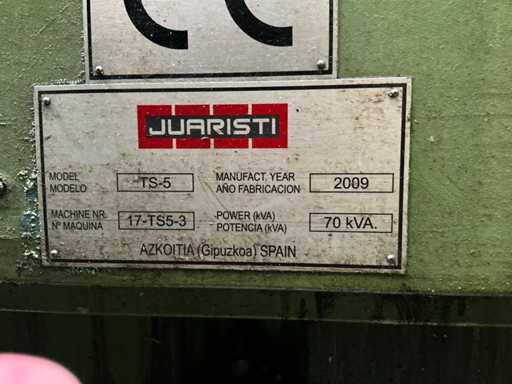

- Serial number
- 17-TS5-3
- Machine weight
- 60000kg
- Dimension l
- 10500mm
- Dimension w
- 9000mm
- Dimension h
- 5200mm
- Terms of delivery
- Ex foundation-unpackaged
Description
- Total installed power 70 kVA.

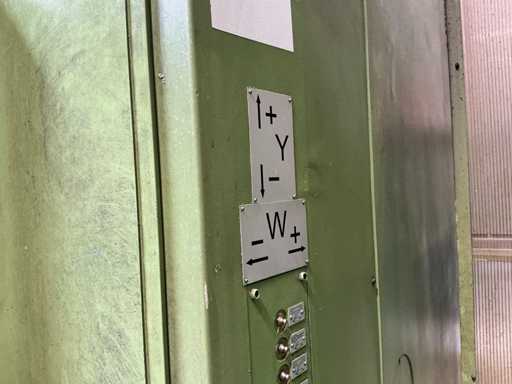

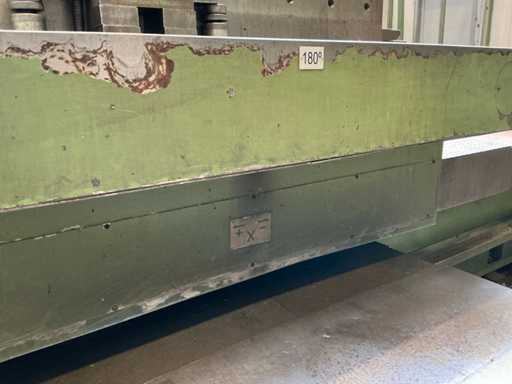

- 5 axes: X, Y, Z, W (axial movement of the axis), B (180° rotary table).
- Approximate travel (X,Y,Z): 5200 x 2700 x 1900 mm.

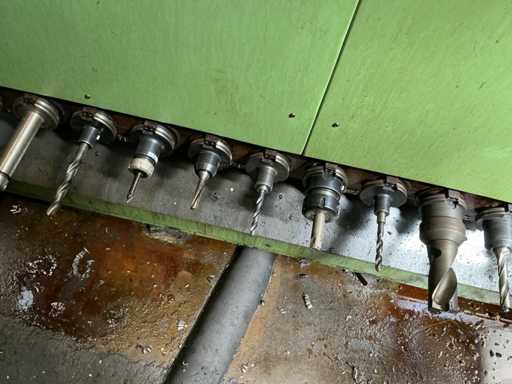

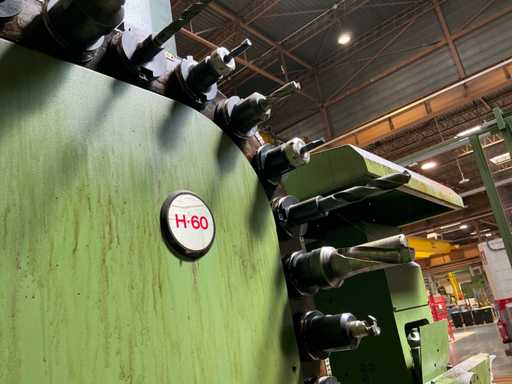

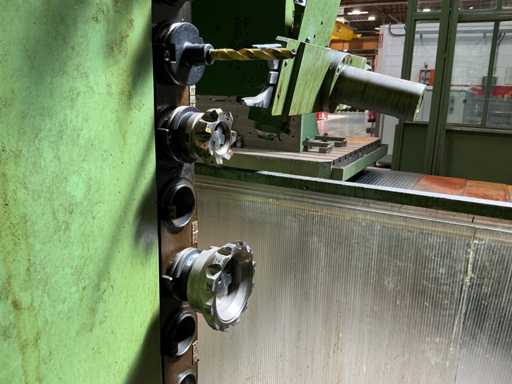

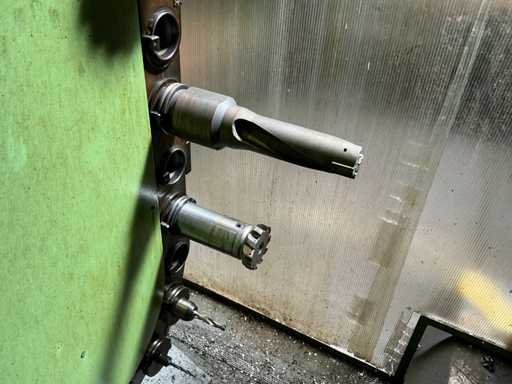

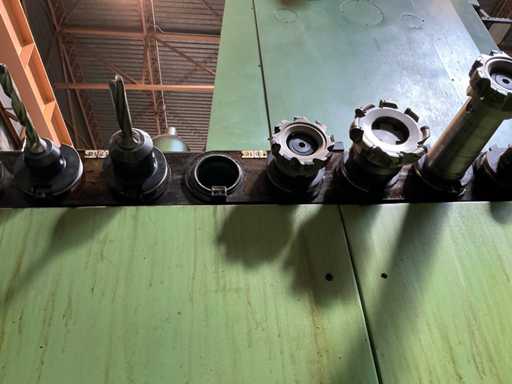

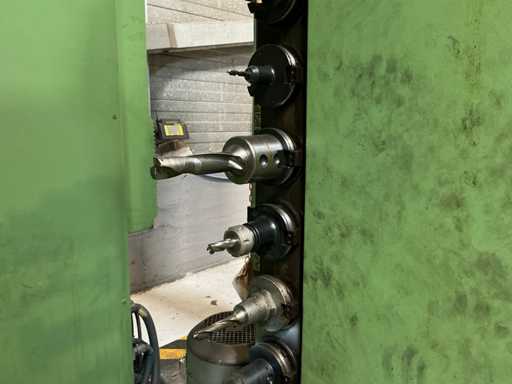

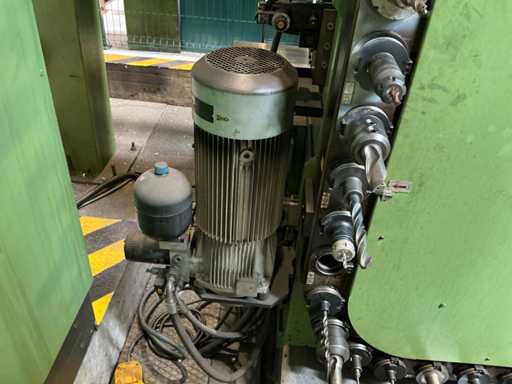

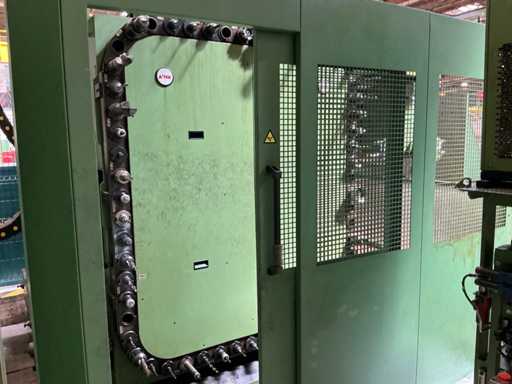

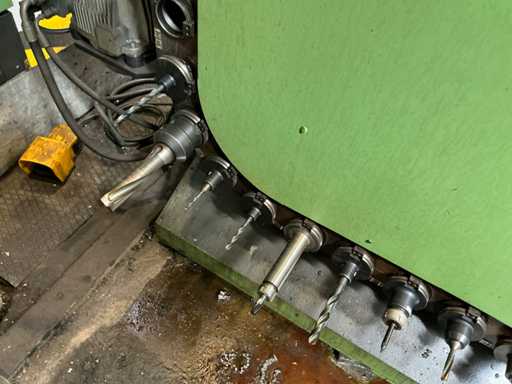

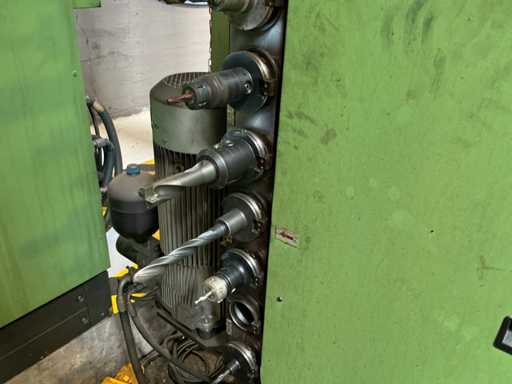

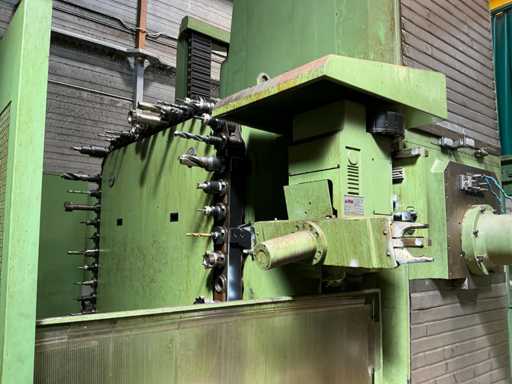

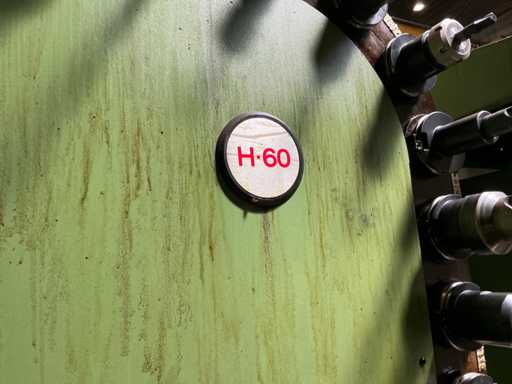

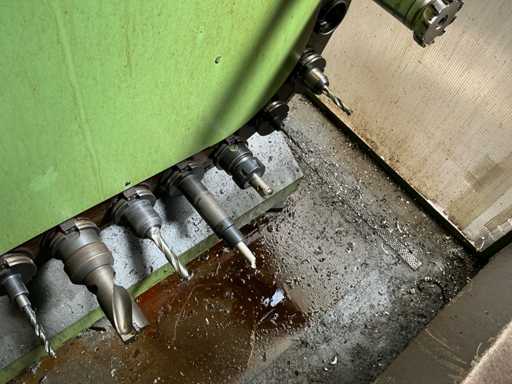

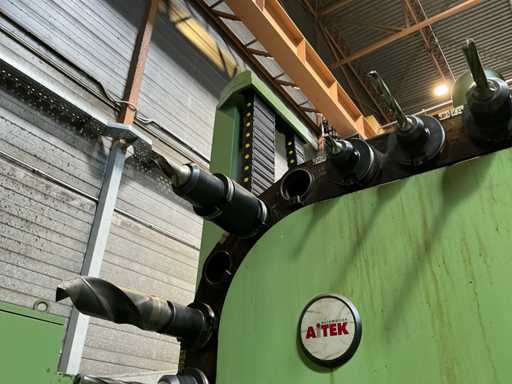

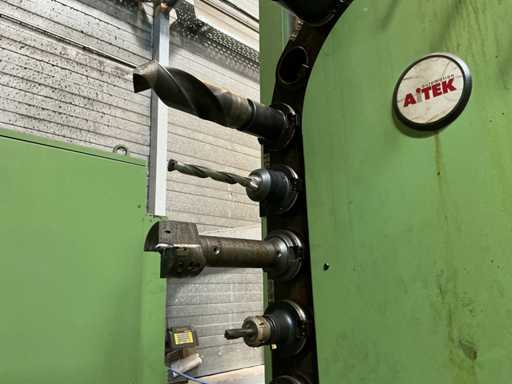

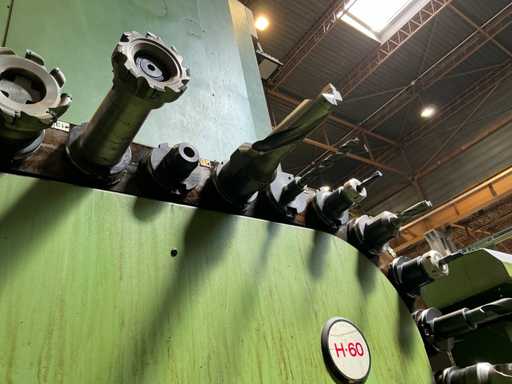

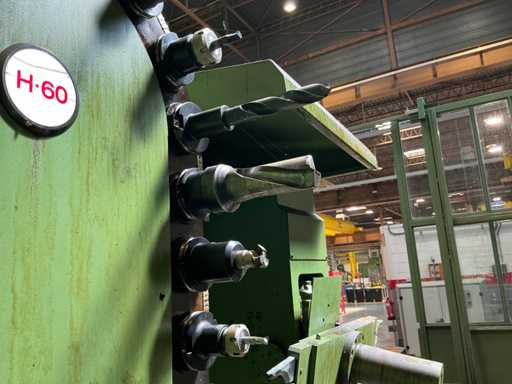

- Tool changer with 60 positions, tools that are mounted on the changer are included.

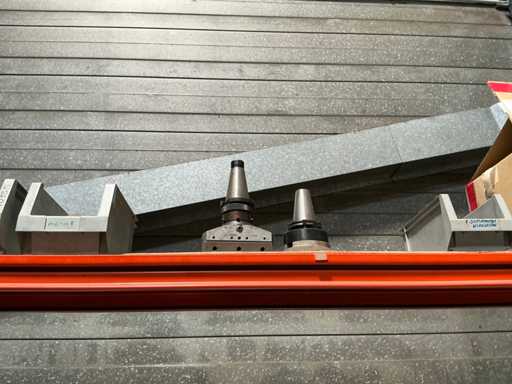

- ISO 50 tool type.

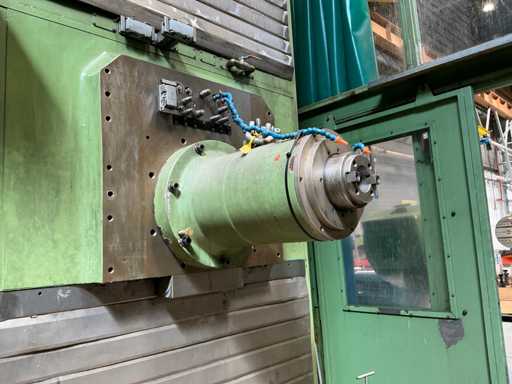

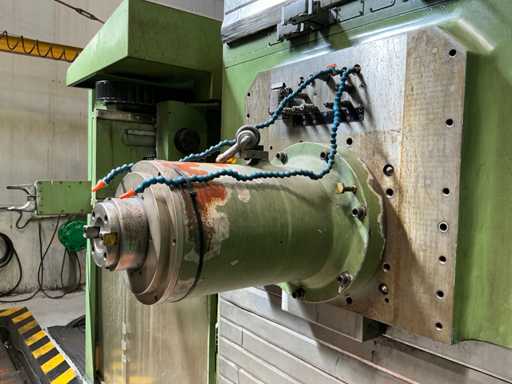

- Power of the electrospindle 37 KW.

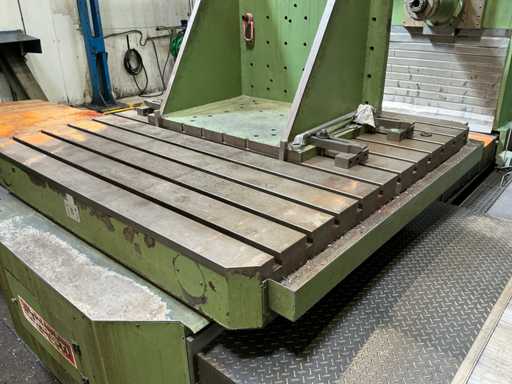

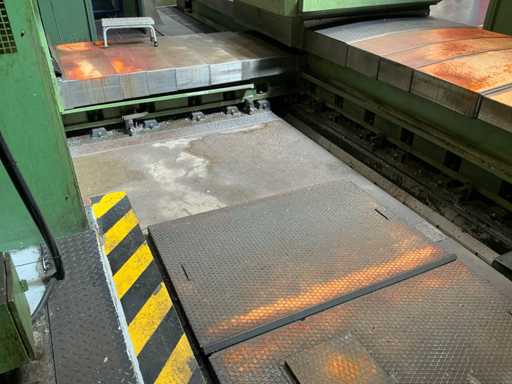

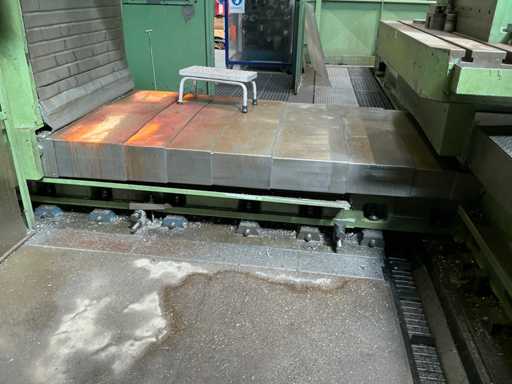

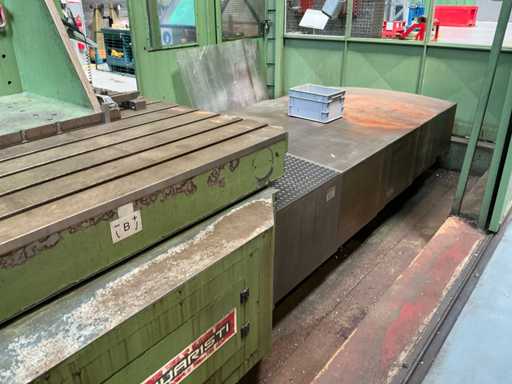

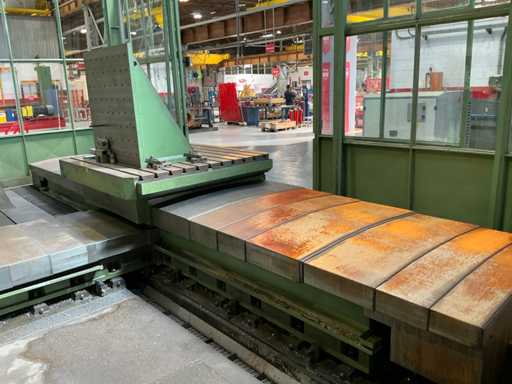

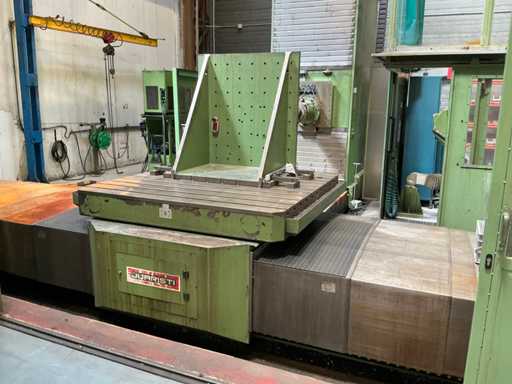

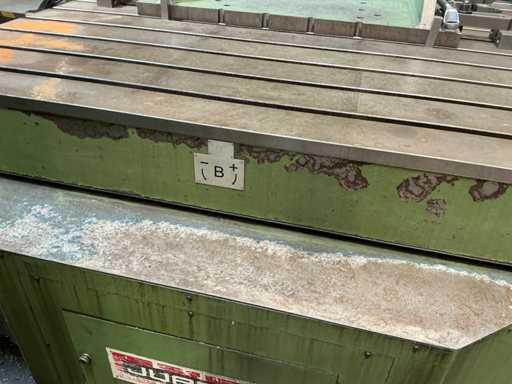

- Table dimensions 2000 x 2000 mm.
- 28mm T-grooves.

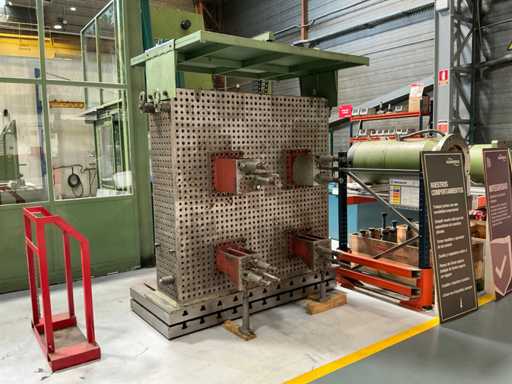

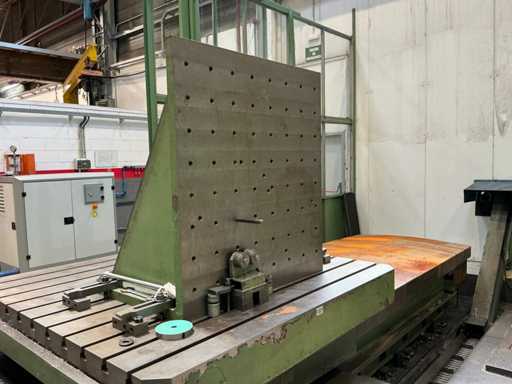

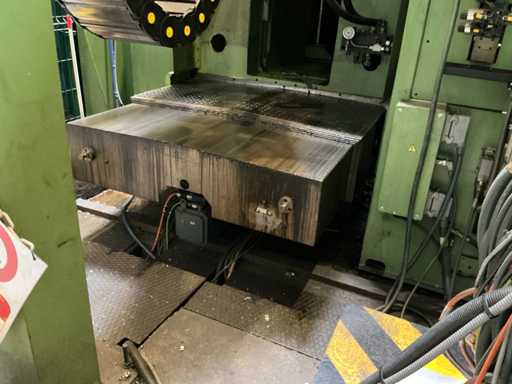

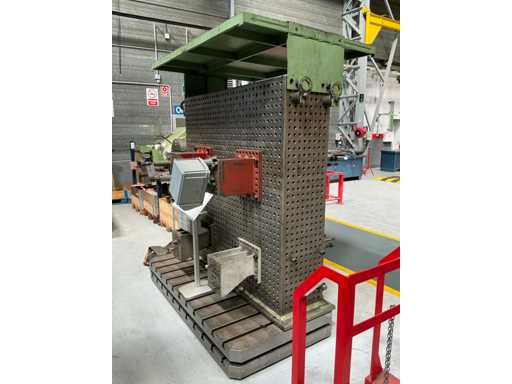

- Vertical table with dimensions 1200 x 1300 mm.

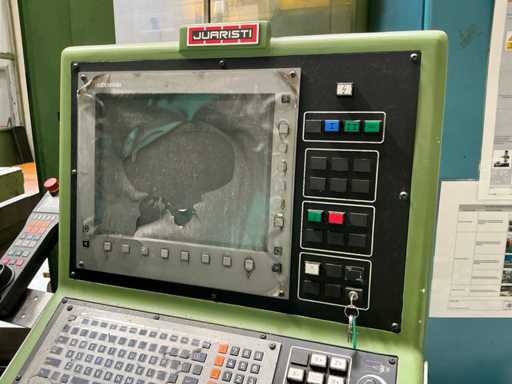

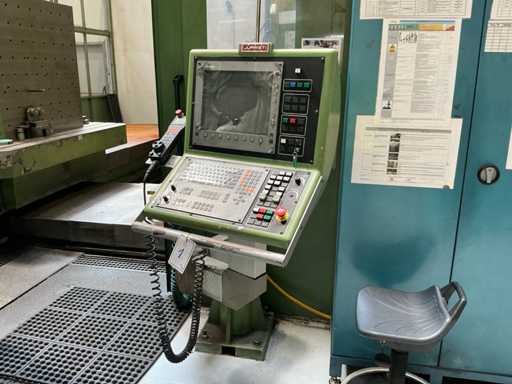

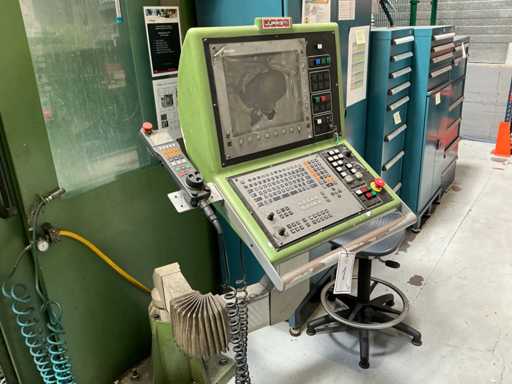

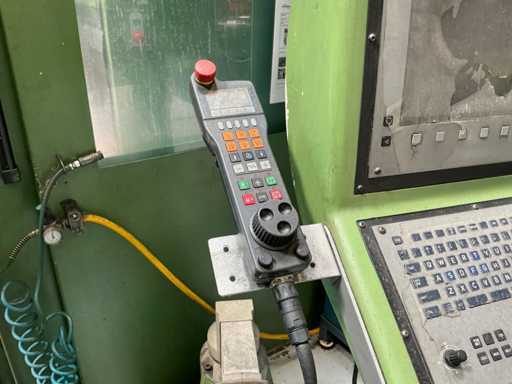

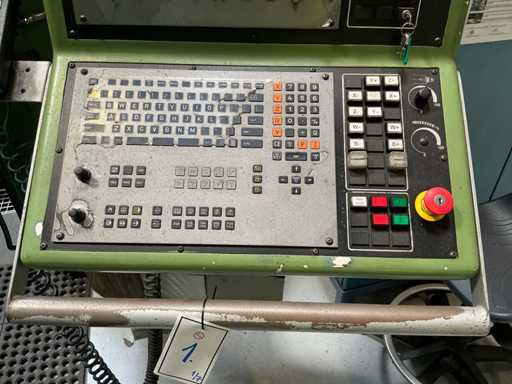

- HEIDENHAIN numerical control.

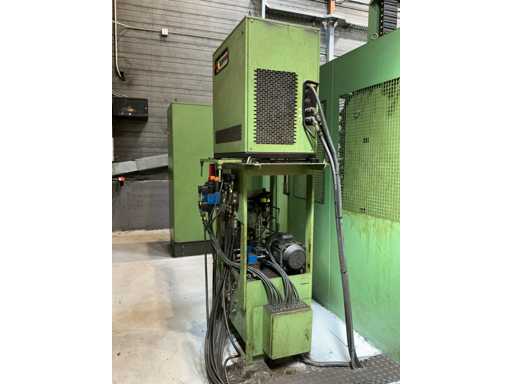

- Cooling system.

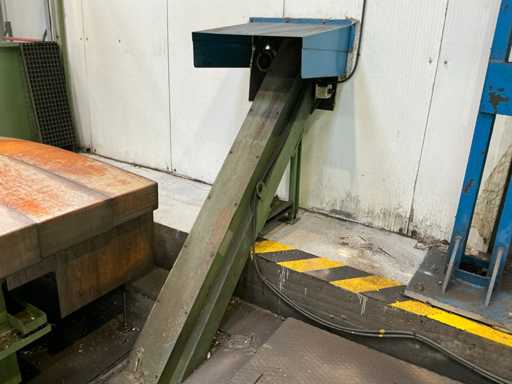

- Chip extractor.

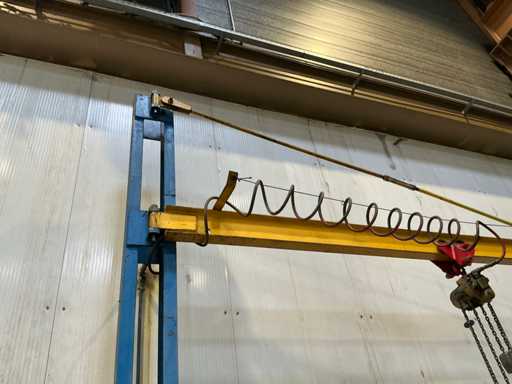

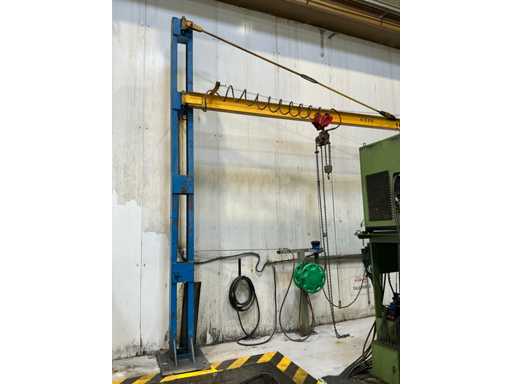

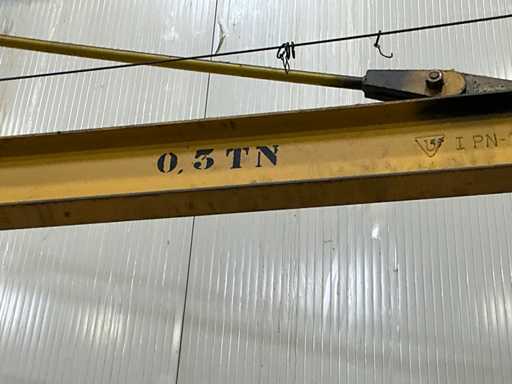

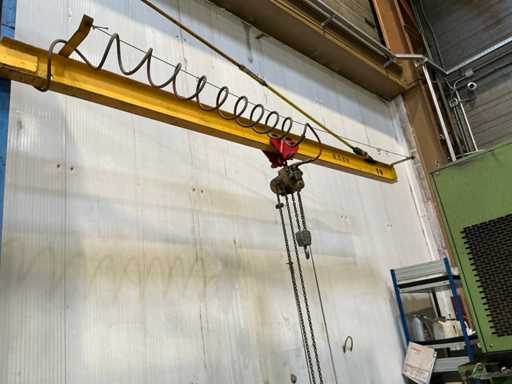

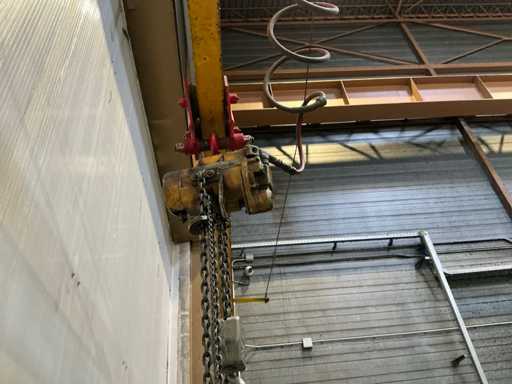

- The jib crane shown in the photographs is included.
- The following accessories and tools are included:

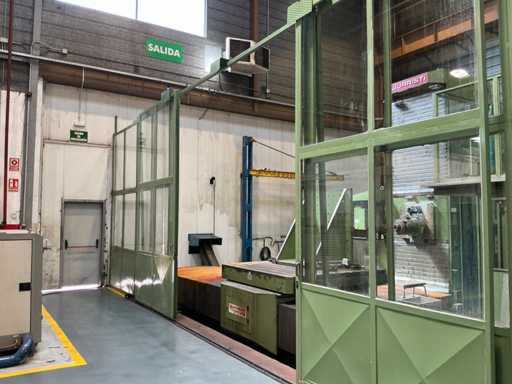

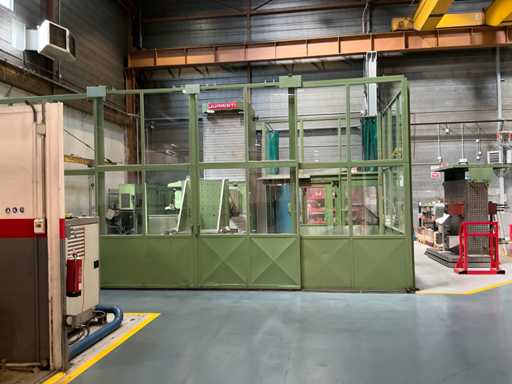

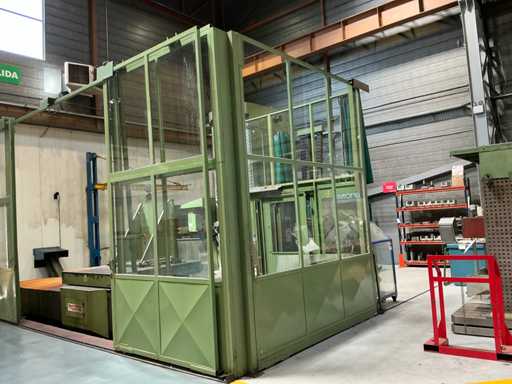

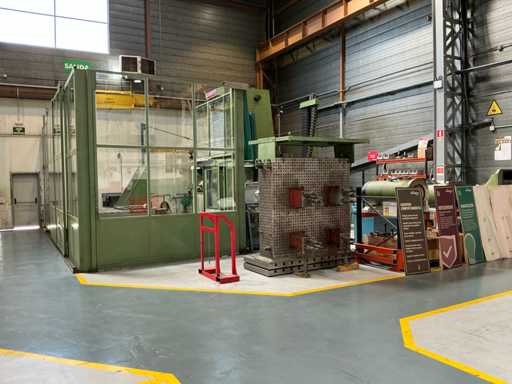

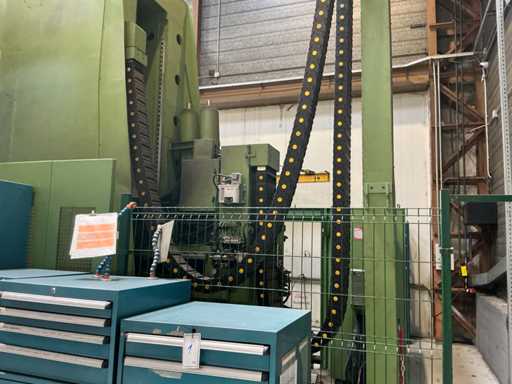

- Perimeter protection enclosure with metal structure and glazed panels.

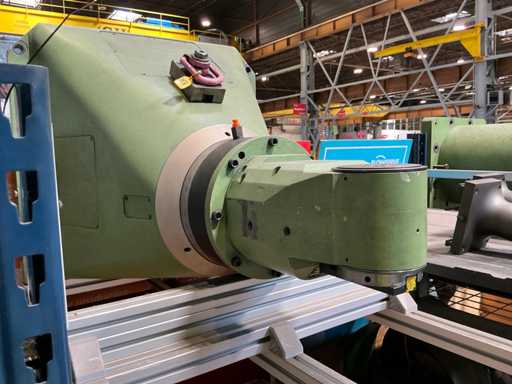

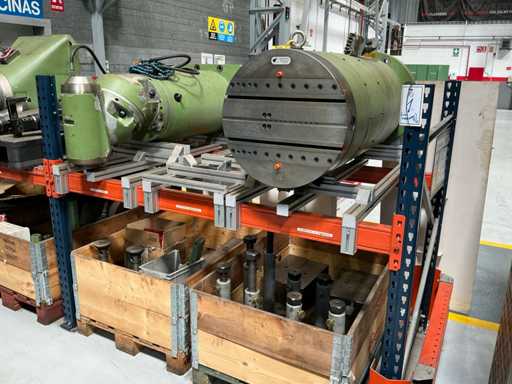

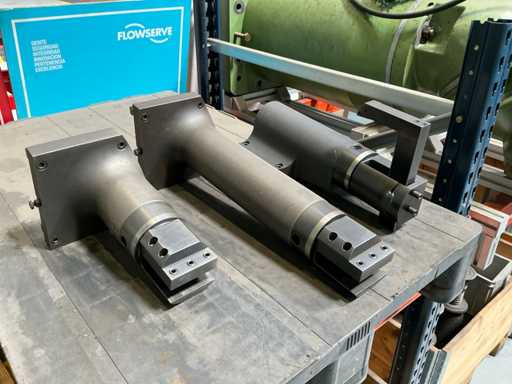

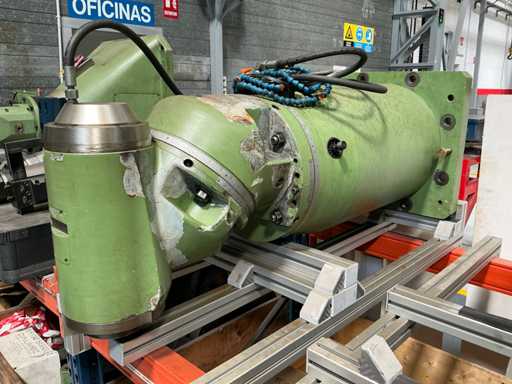

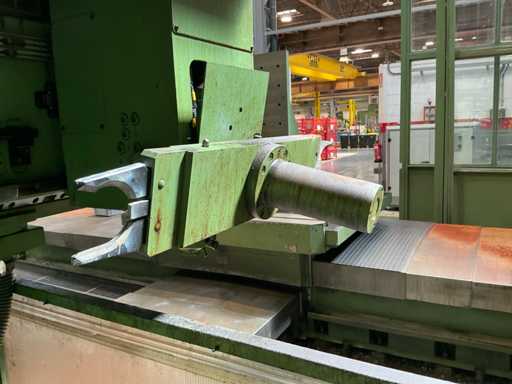

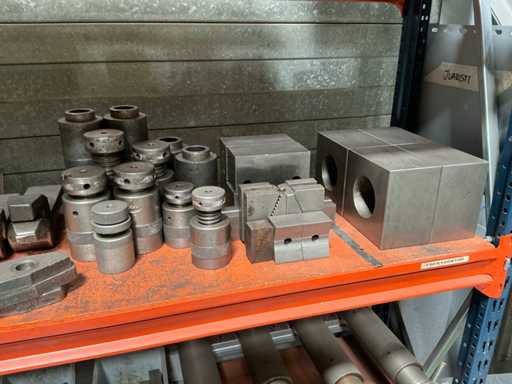

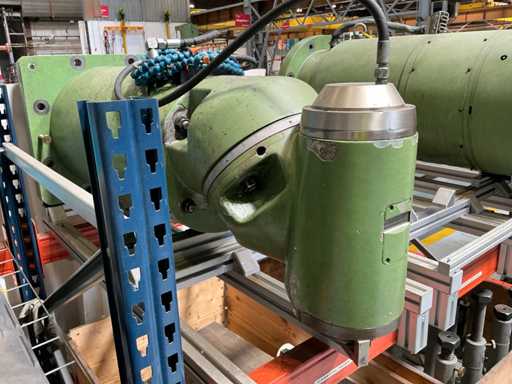

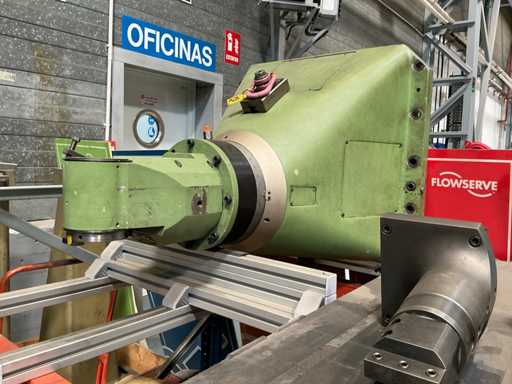

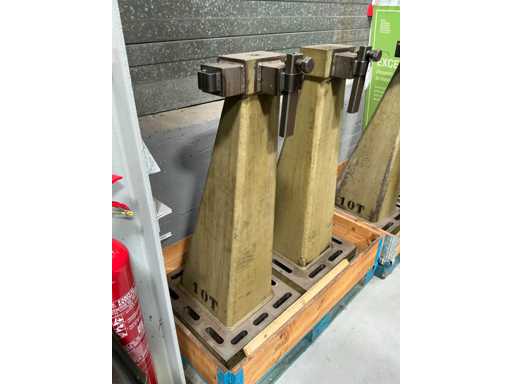

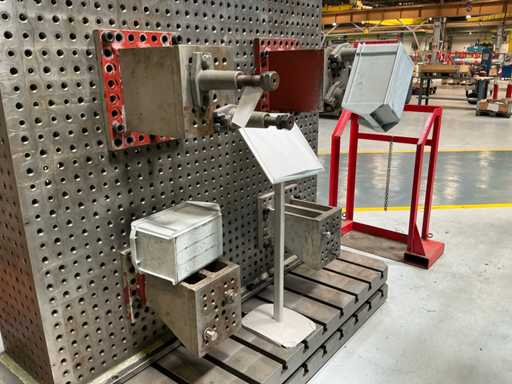

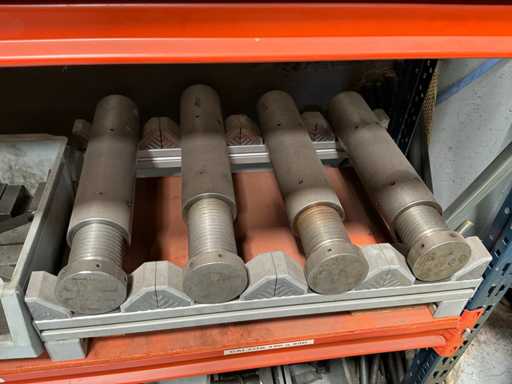

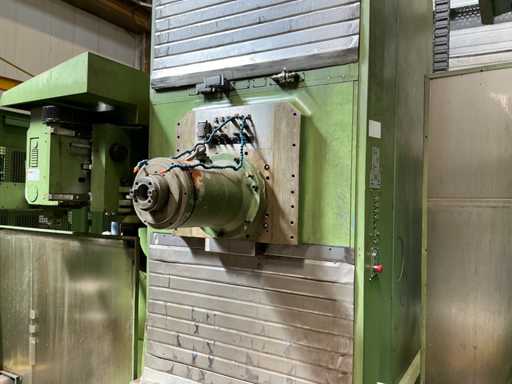

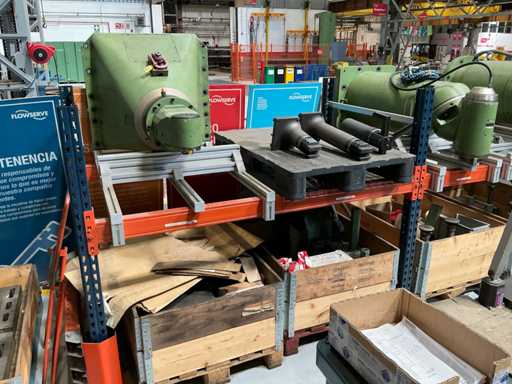

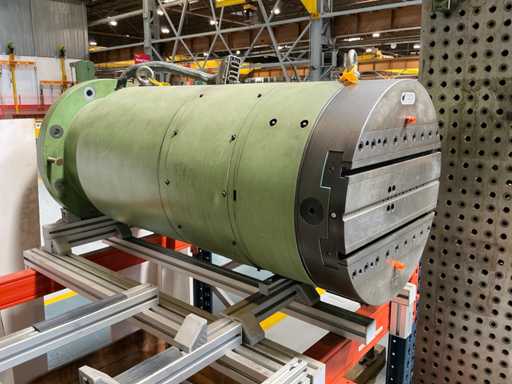

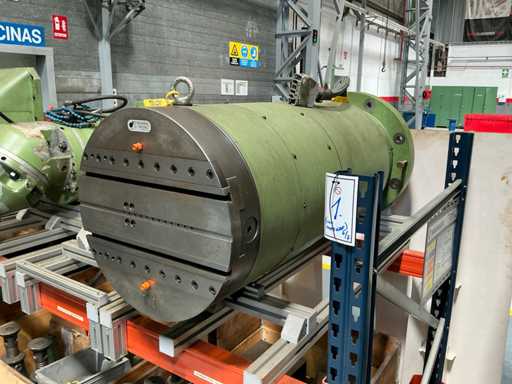

- Set of heads and special machining accessories.

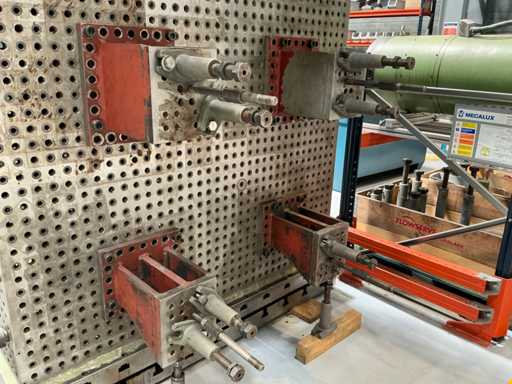

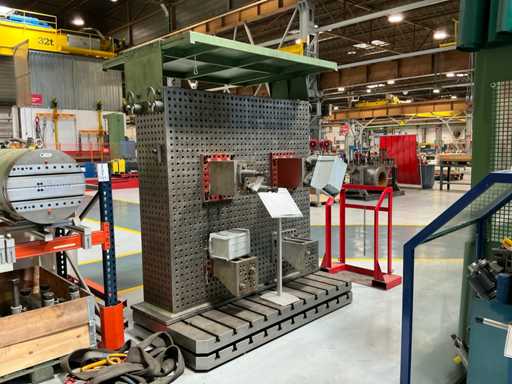

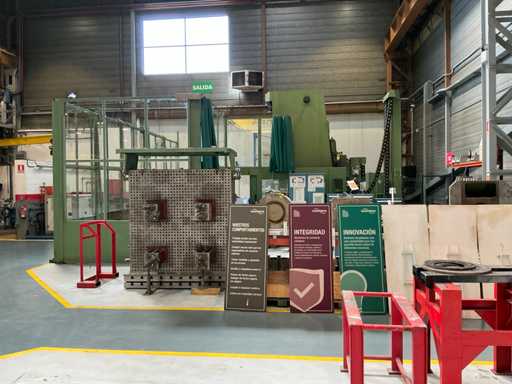

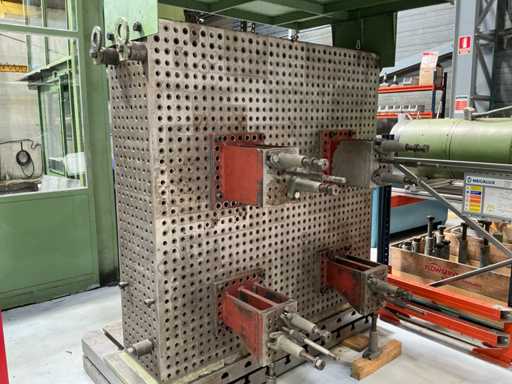

- Additional perforated table of 1800 x 1800 mm.

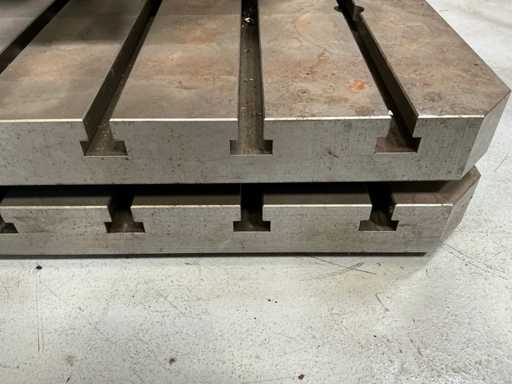

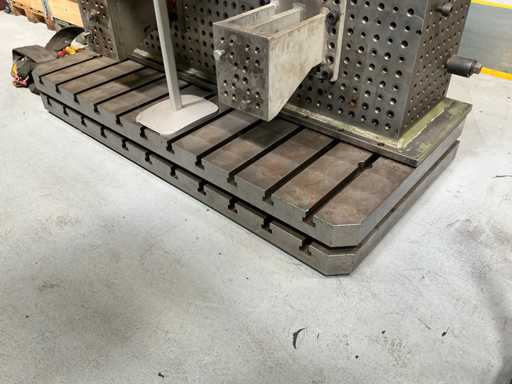

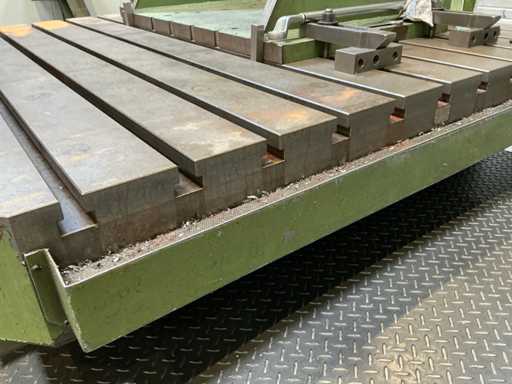

- Additional table with T-slots in dimensions 2000 x 2000 mm (in 2 pieces).

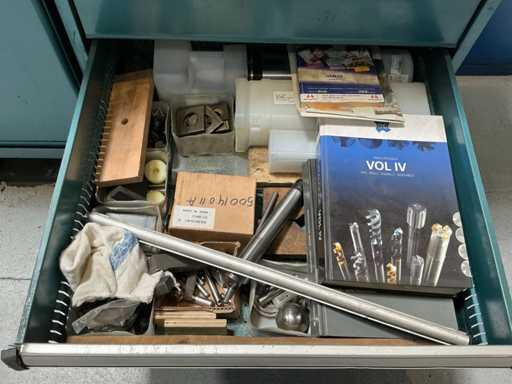

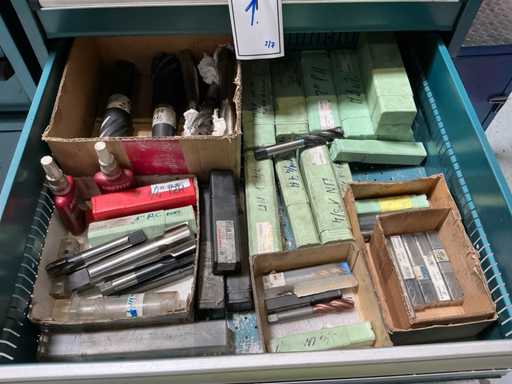

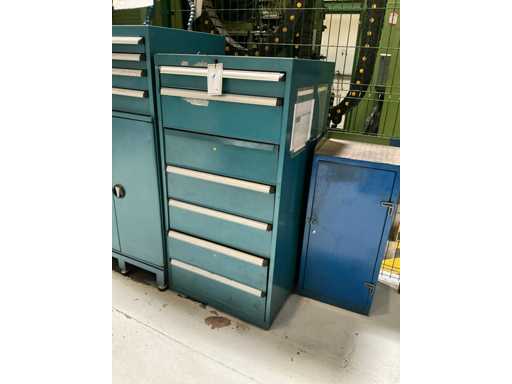

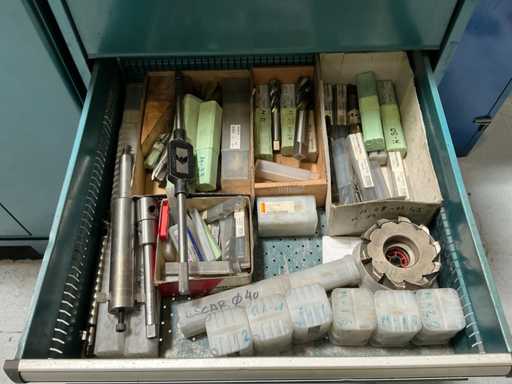

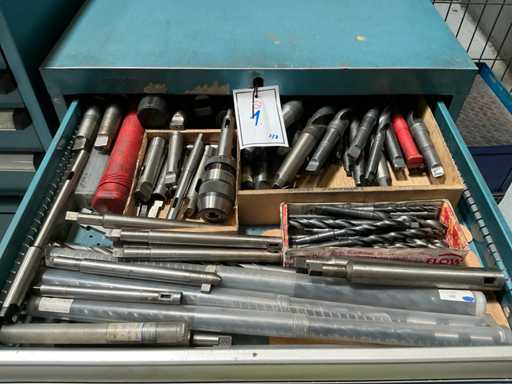

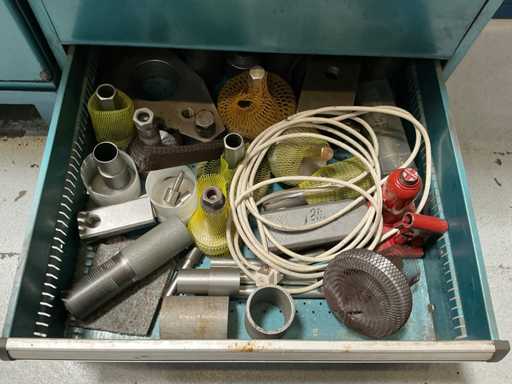

- Metal furniture with contents: accessories, tools and various elements.

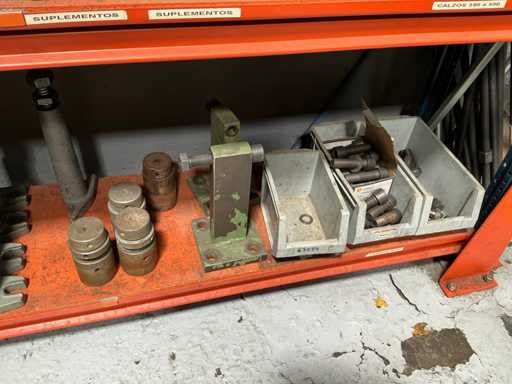

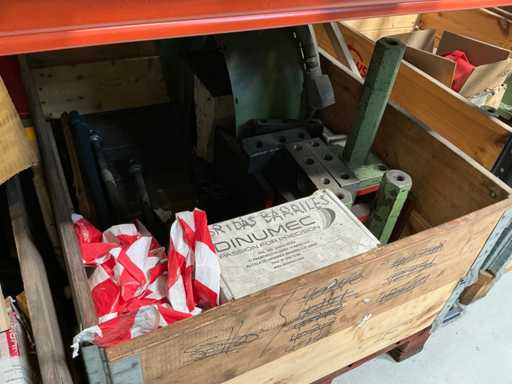

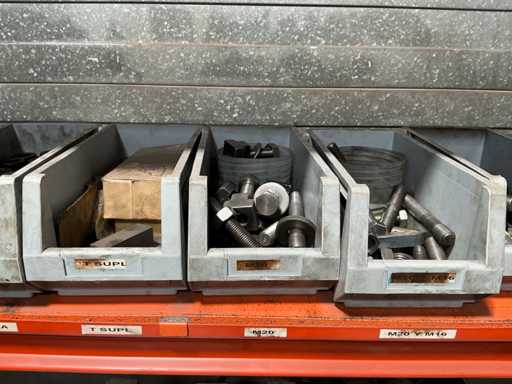

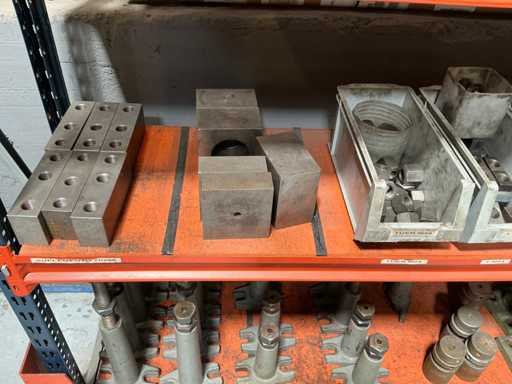

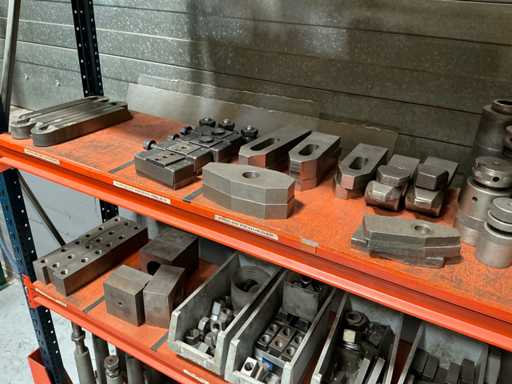

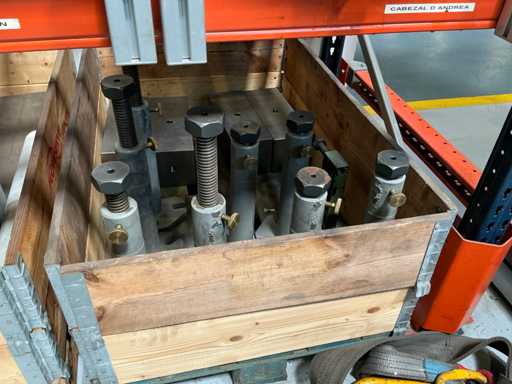

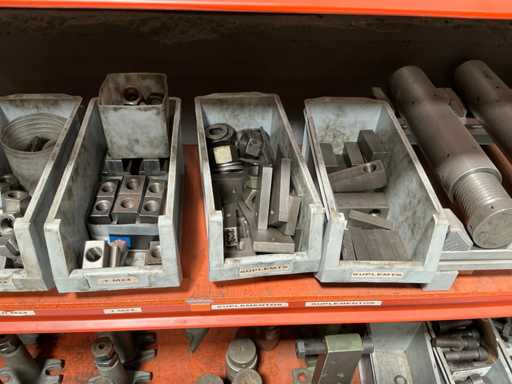

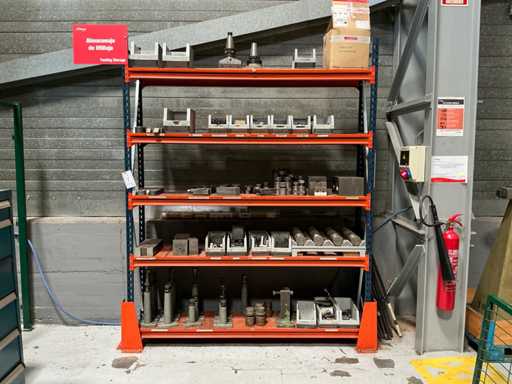

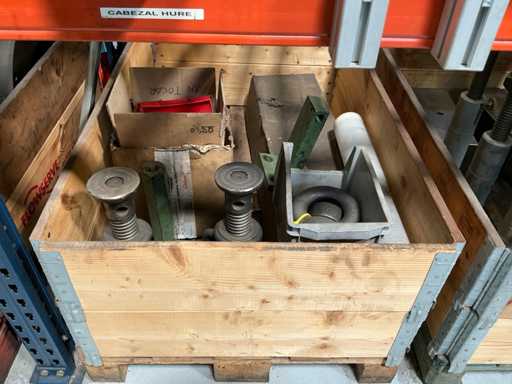

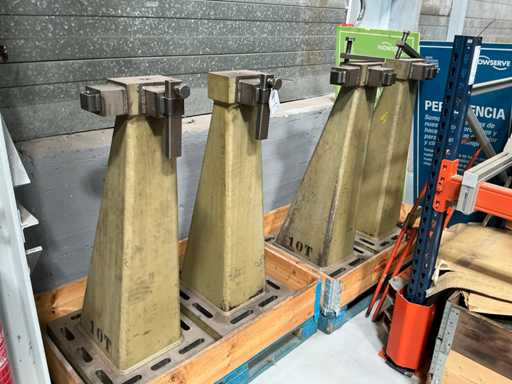

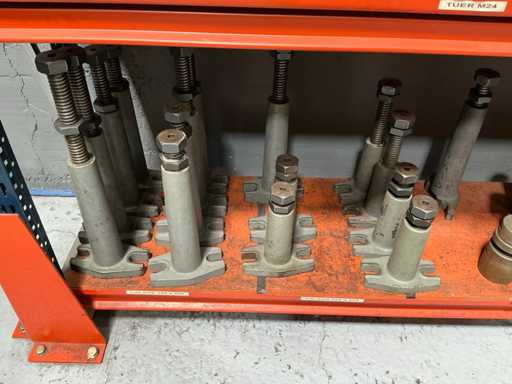

- Metal shelving with contents: accessories, jaws, supports, tools and various parts.
- Operating conditions of this machine: unchecked.
- 5 axes: X, Y, Z, W (axial movement of the axis), B (180° rotary table).
- Approximate travel (X,Y,Z): 5200 x 2700 x 1900 mm.
- Tool changer with 60 positions, tools that are mounted on the changer are included.
- ISO 50 tool type.
- Power of the electrospindle 37 KW.
- Table dimensions 2000 x 2000 mm.
- 28mm T-grooves.
- Vertical table with dimensions 1200 x 1300 mm.
- HEIDENHAIN numerical control.
- Cooling system.
- Chip extractor.
- The jib crane shown in the photographs is included.
- The following accessories and tools are included:
- Perimeter protection enclosure with metal structure and glazed panels.
- Set of heads and special machining accessories.
- Additional perforated table of 1800 x 1800 mm.
- Additional table with T-slots in dimensions 2000 x 2000 mm (in 2 pieces).
- Metal furniture with contents: accessories, tools and various elements.
- Metal shelving with contents: accessories, jaws, supports, tools and various parts.
- Operating conditions of this machine: unchecked.
Remarks
- Operating conditions of this machine: unchecked.
Additional details
Dismantling and loading will be carried out exclusively by the dismantler appointed by the seller and contracted directly by the buyer. The dismantling and loading prices for each lot will be published before the start of bidding.
All items are sold as used and unchecked.
For more detailed information, please refer to the auction terms and conditions.
Contact for technical inquiries and appointment request for visits:
Emilio Sobrado
Email: emilio.sobrado@surplex.com
All the items awarded in this auction for countries outside the European Union will be sold under the Incoterm® 2020 Ex Works (EXW), with the buyer being responsible for the management and assumption of the procedures, costs and risks associated with the transport, export and import of the goods.
The payment deadline is Monday, 28.09.2026
Pick-up is only possible by appointment with the seller.
