Kekeisen - PFW-T 4000/12 - 2011 - Portal milling machines
- Current bid
- Status
Total bid amount
See total breakdown
Total bid amount
Max bid amount
See total breakdown
Max bid amount
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- Kekeisen
- Type
- PFW-T 4000/12
- Year of build
- 2011
- Serial number
- 26007-52
- Travel x-axis
- 4000mm
- Travel y-axis
- 2700mm
- Travel z-axis
- 1200mm
- Speed till n=
- 7000rpm

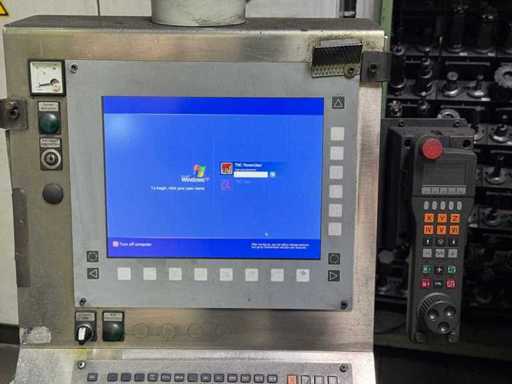

- Control, brand, type

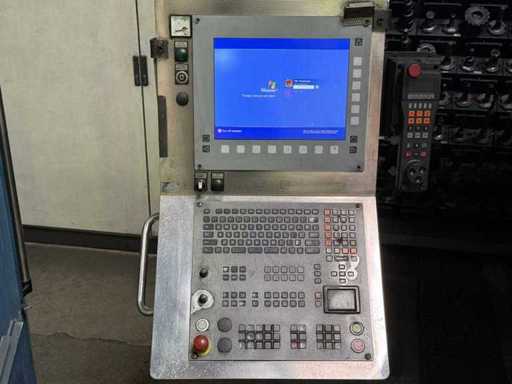

- Heidenhain TNC 530
- Engine power (kW)
- 30kW
- Machine weight
- 65.000kg
- Dimension l
- 13700mm
- Dimension w
- 10000mm
- Dimension h
- 5300mm
Description

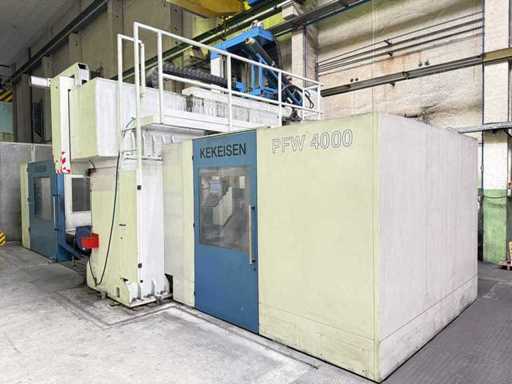

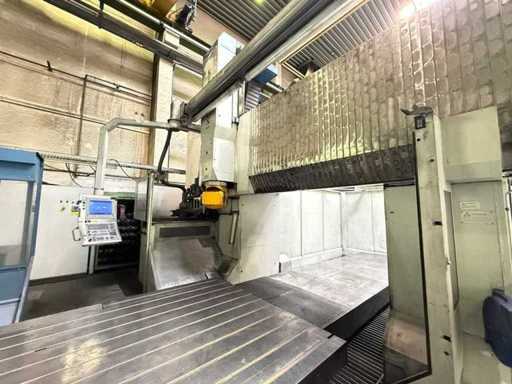

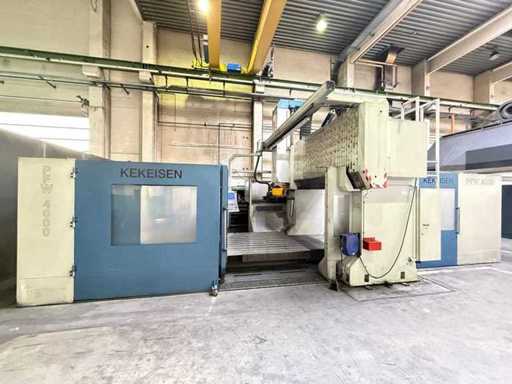

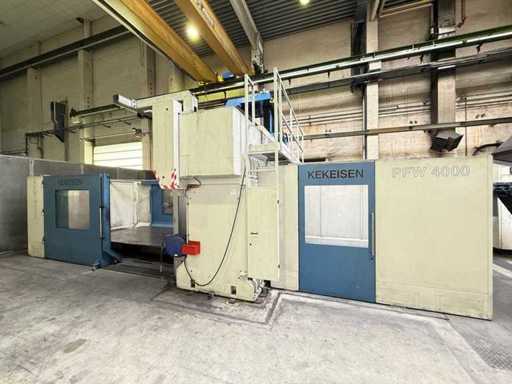

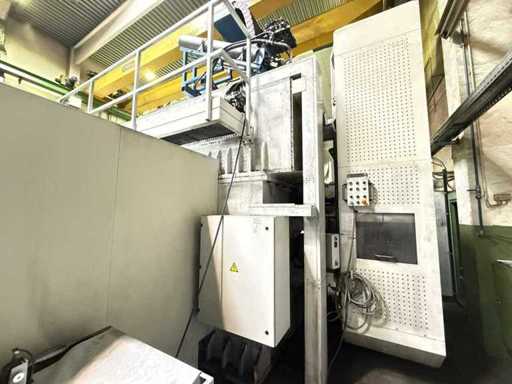

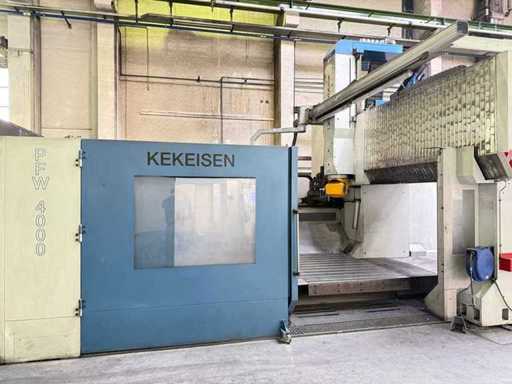

KEKEISEN PFW-T 4000/12 Portal Milling Machine
Heavy, rigid design for machining large and heavy workpieces.

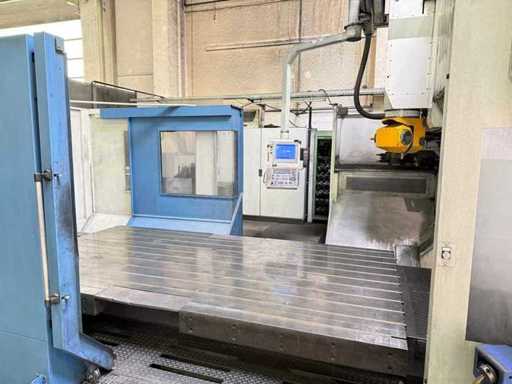

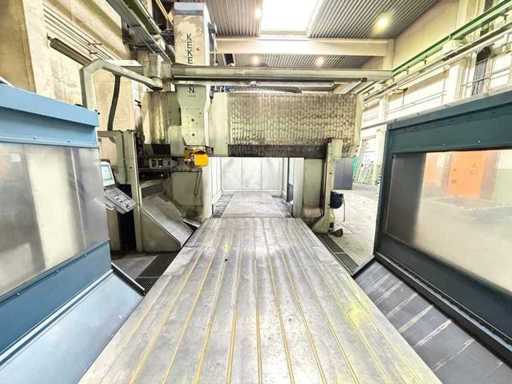

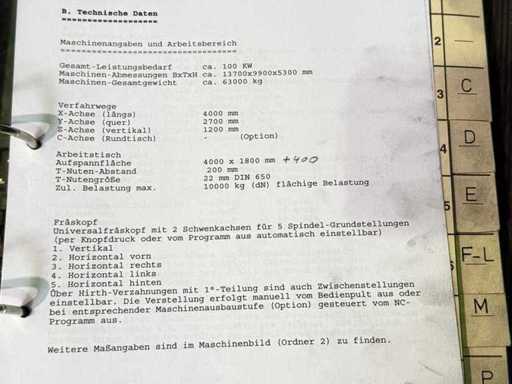

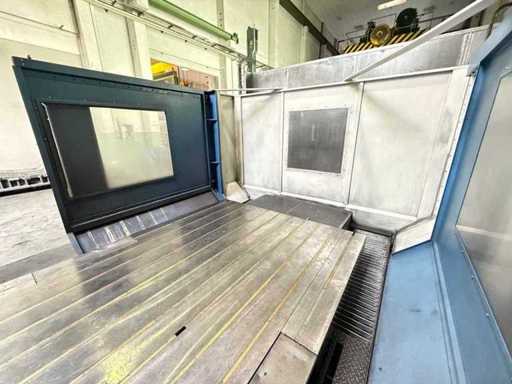

Traversing of 4,000 x 2,700 x 1,200 mm as well as a large work table of approx. 4,000 x 1,800 mm with a table load of 10,000 kg enable the machining of large-volume components.

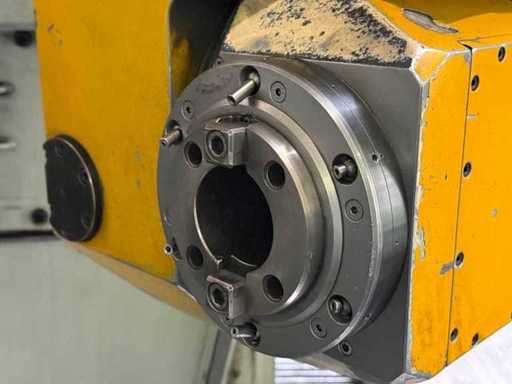

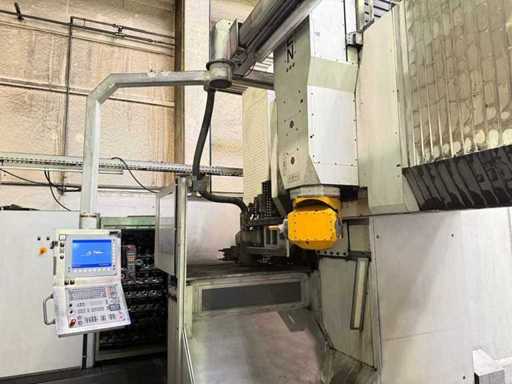

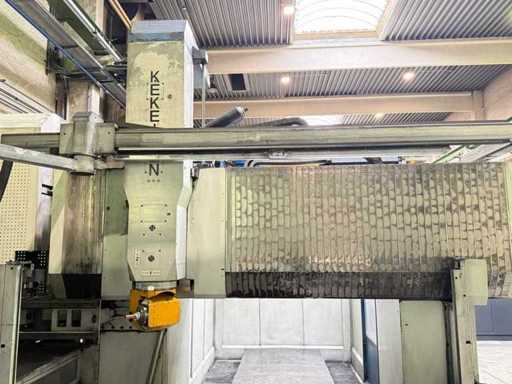

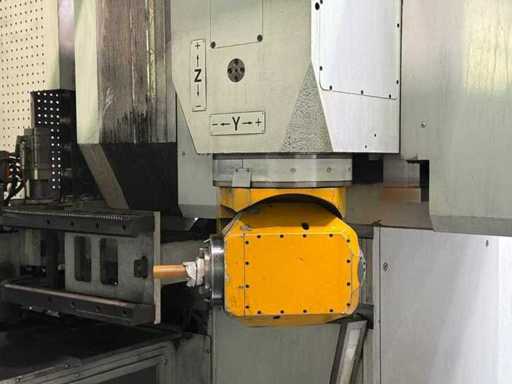

Milling head
The machine is equipped with a Universal milling head with 2 swivel axes and 5° - 1° step NC-controlled adjustable positions (manually or optionally NC-controlled).
The integrated Hirth toothing ensures precise and stable angle adjustments.
Main spindle drive
Powerful main spindle drive with approx. 30 kW.
- Speed range: 20 – 7,000 rpm
- Maximum torque: approx. 1,050 Nm

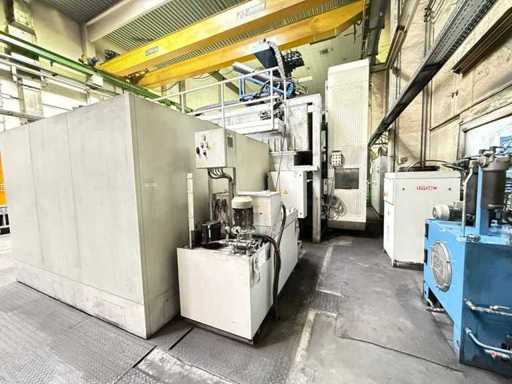

Facilities

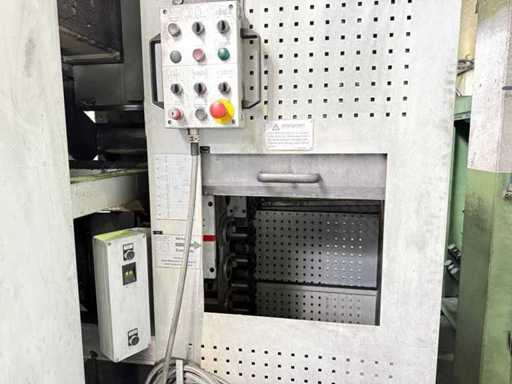

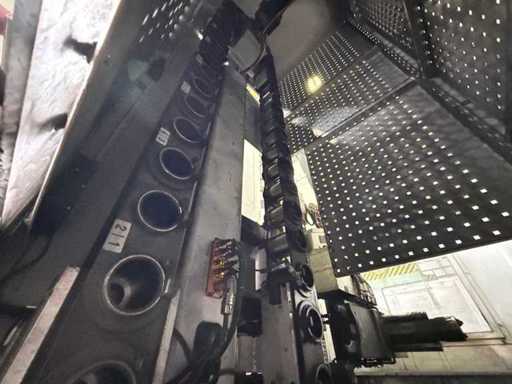

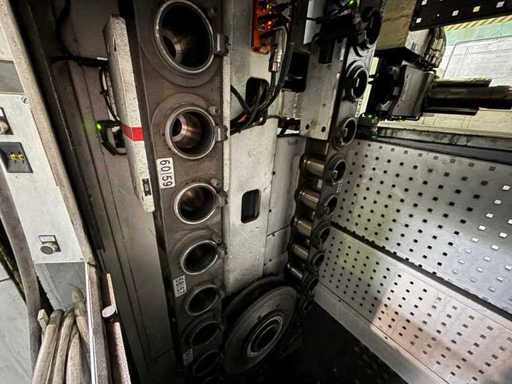

- 60-speed tool changer (KWE60)
- Chip conveyor

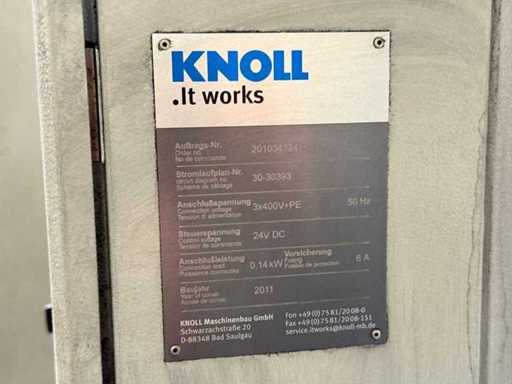

- KNOLL filter system

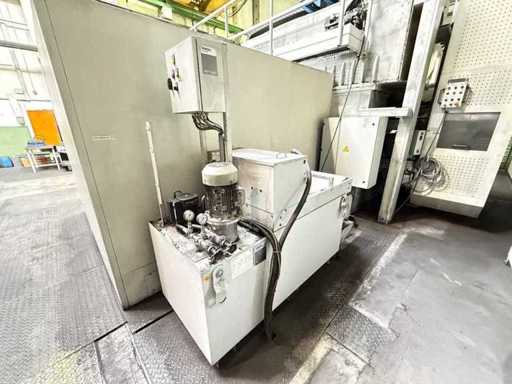

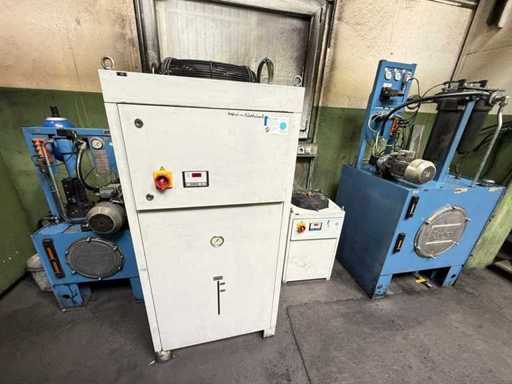

- Hydac Refrigeration Units
- Central lubrication

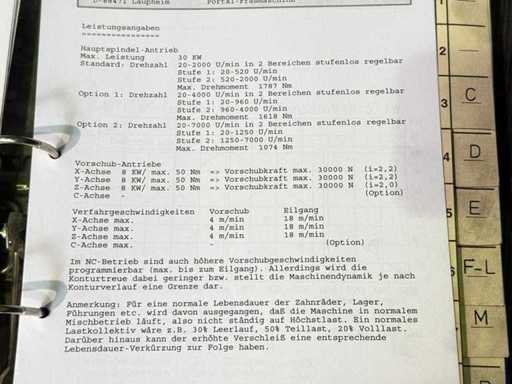

Performance data
- Feed: up to 4 m/min
- Rapid traverse: up to 18 m/min
- Feed forces: approx. 30,000 N per axis
The robust design of the machine enables reliable machining of large-volume and heavy workpieces with high precision.
