Rimas - 2018 - L17000042 - 2-component bonding machine
Collection
Collection by appointment
Contact details will be shared on the invoice after payment.

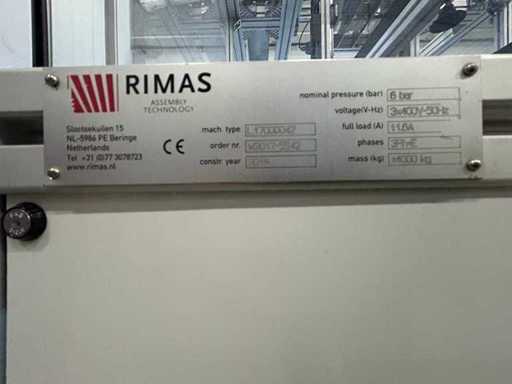

Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- Rimas
- Electric connection
- 380V
- Digital control
- Yes
- Total dimension Height
- 2500mm
- Working width
- 1600mm
- Total dimension L
- 10000mm
- Total dimension W
- 5000mm
- Type
- L17000042
- Year of build
- 2018
Description

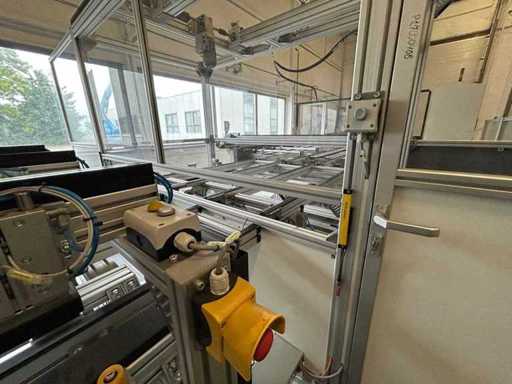

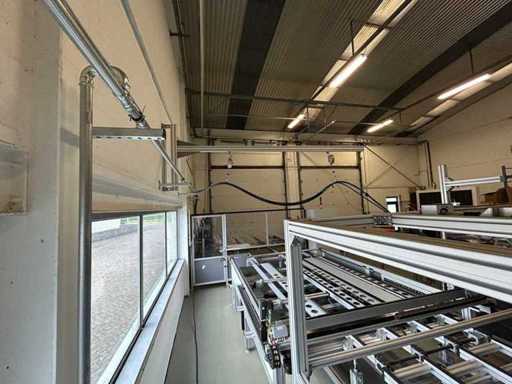

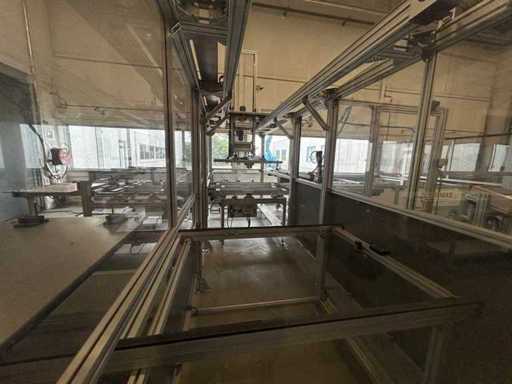

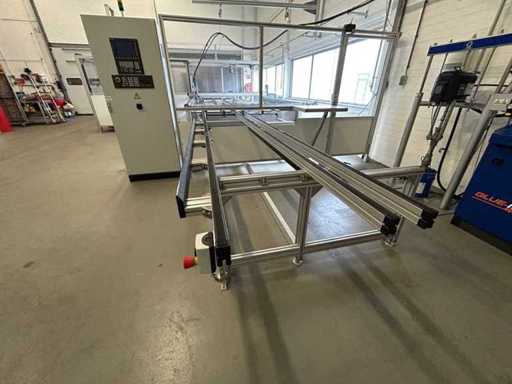

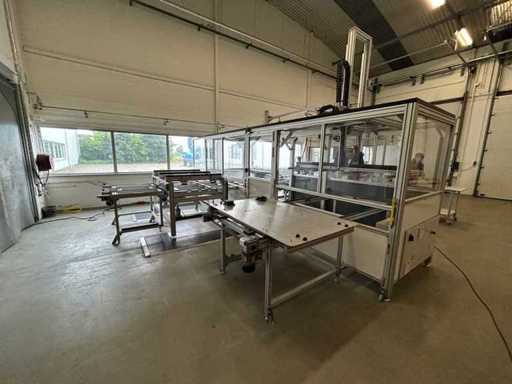

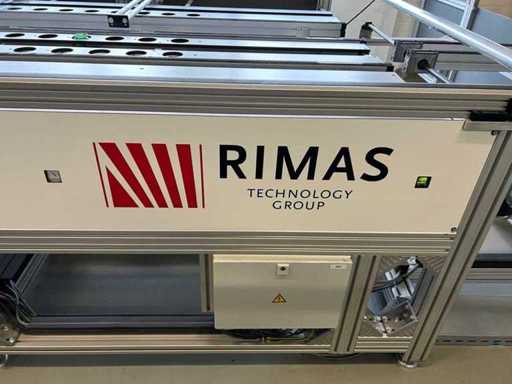

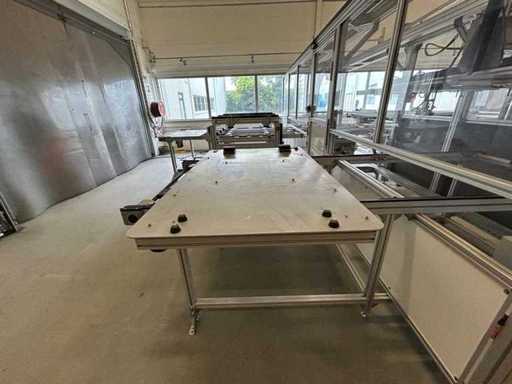

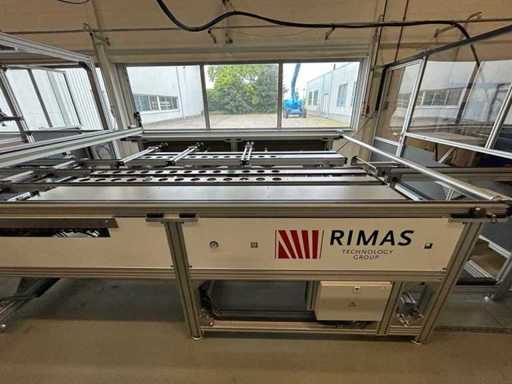

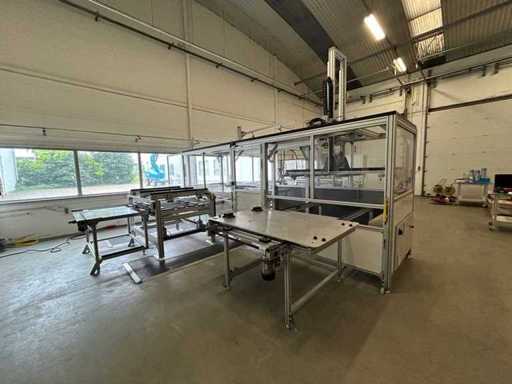

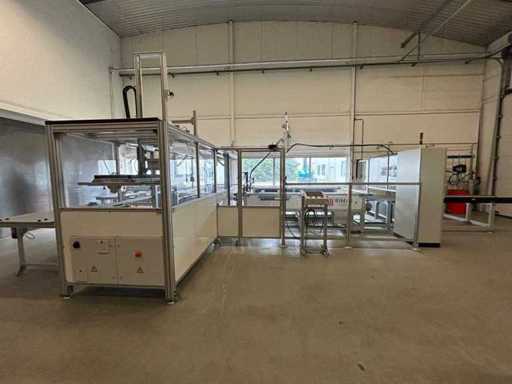

This industrial bonding machine is an automated production line, developed for accurate and efficient assembly processes in which dosing, positioning and pressing come together seamlessly. The installation is built around a Siemens PLC platform and combines an advanced CNC (Siemens SINUMERIK 828D) with a glue dosing unit (Wiltec Gluemix), a high-quality transport system, a pick & place module and an automatic pressure press.

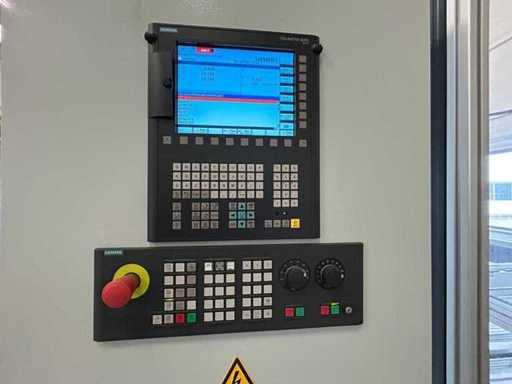

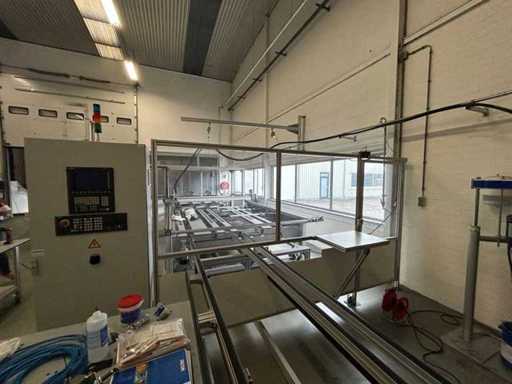

CNC control: Siemens SINUMERIK 828D
PLC control:

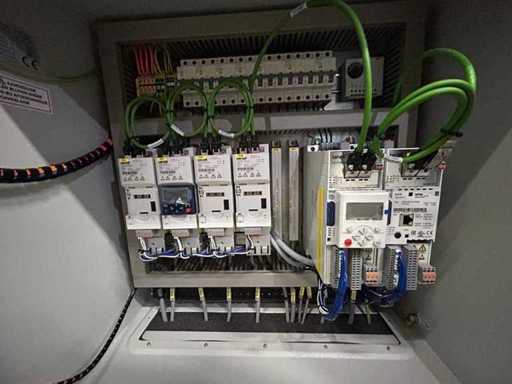

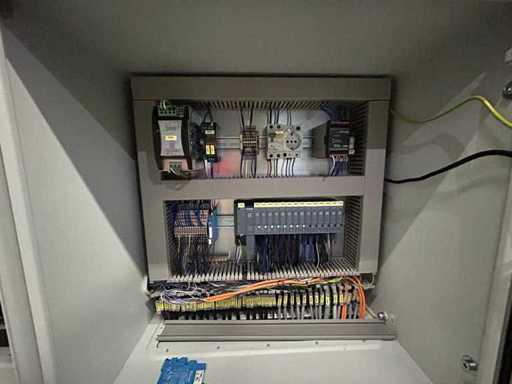

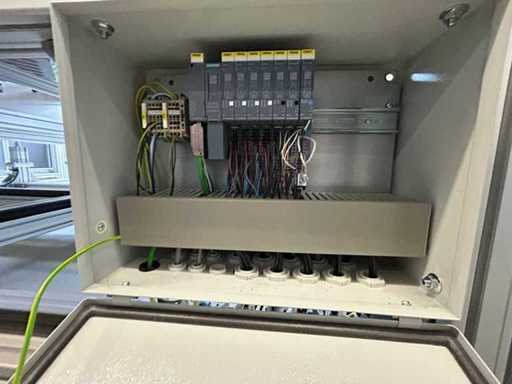

Siemens SIMATIC PLC
Profinet communication between stations
HMI:

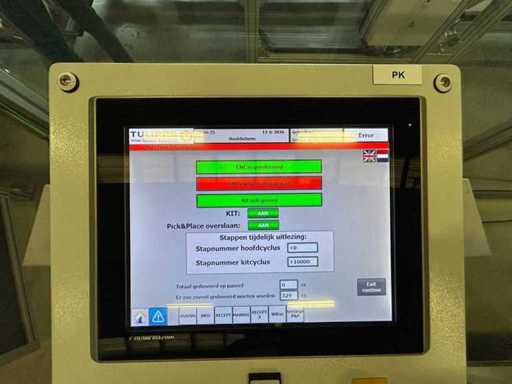

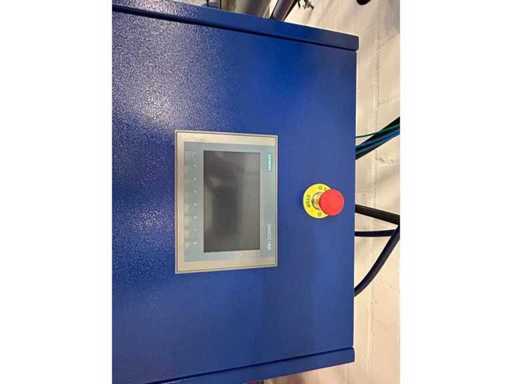

Siemens SIMATIC HMI Comfort Panel
Touchscreen control with recipe management and diagnostics
Servo drive (XY-axis):
Siemens SINAMICS servo drives
Servo motors for precise positioning XY unit

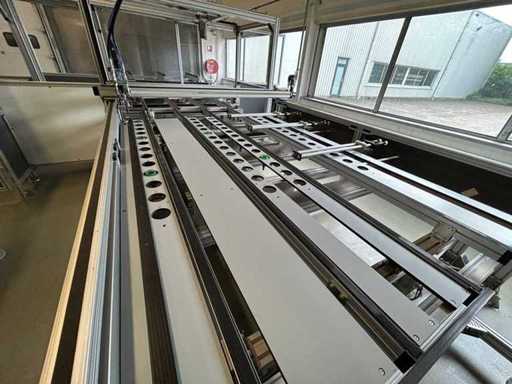

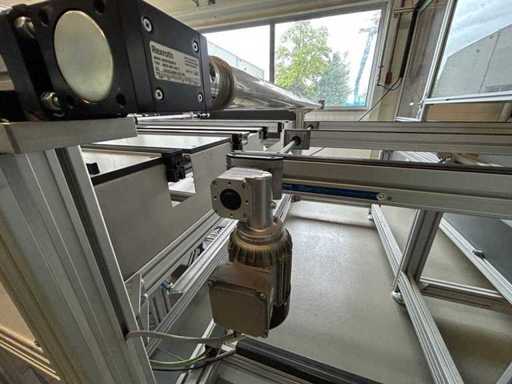

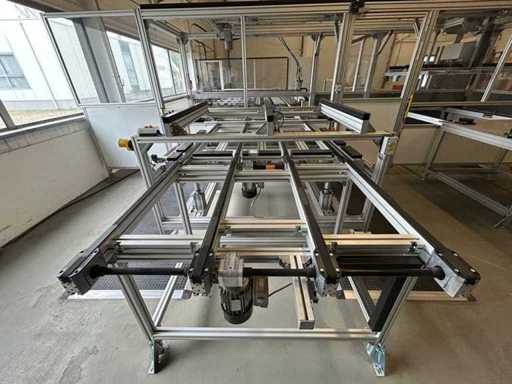

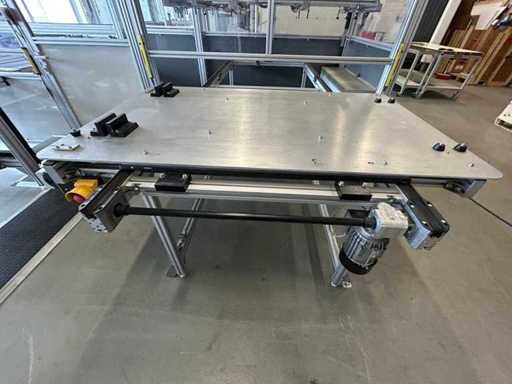

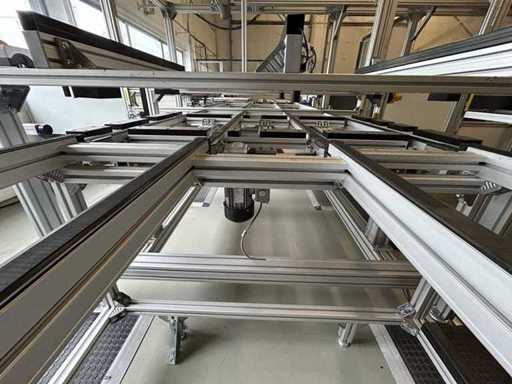

Transport drive Industrial AC motors with frequency converter

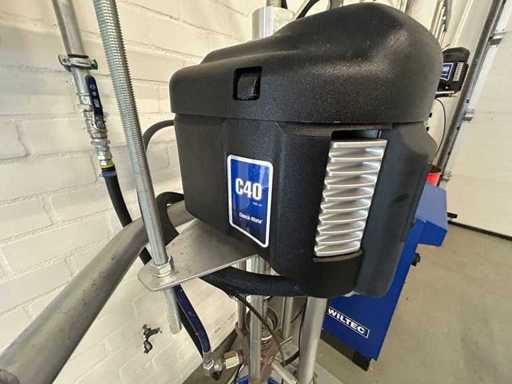

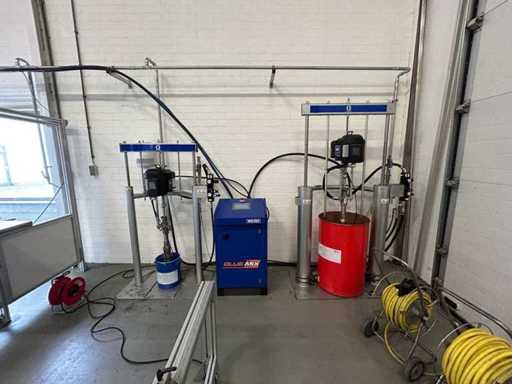

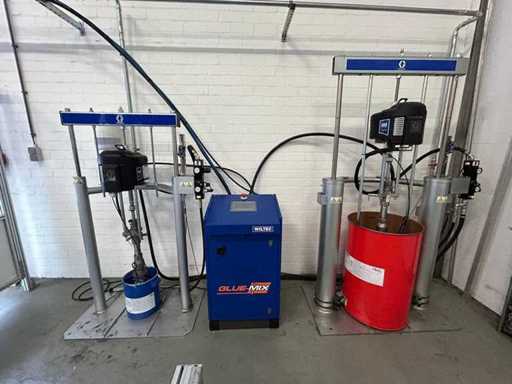

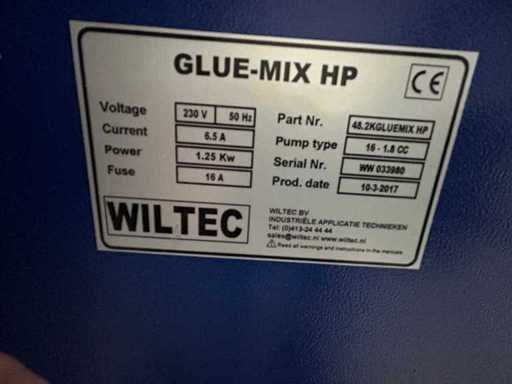

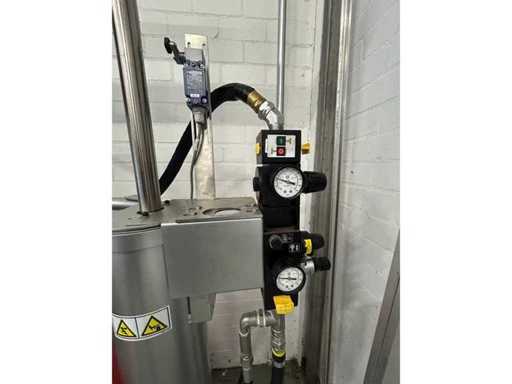

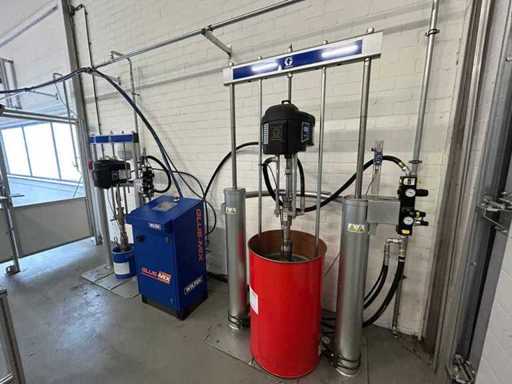

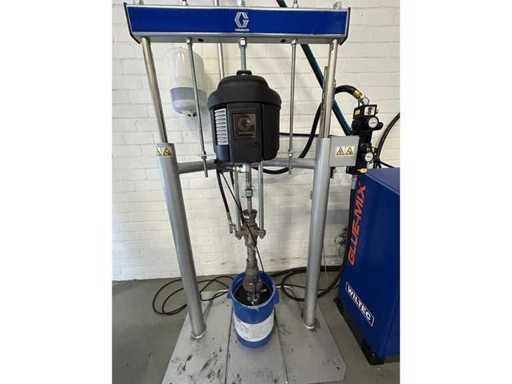

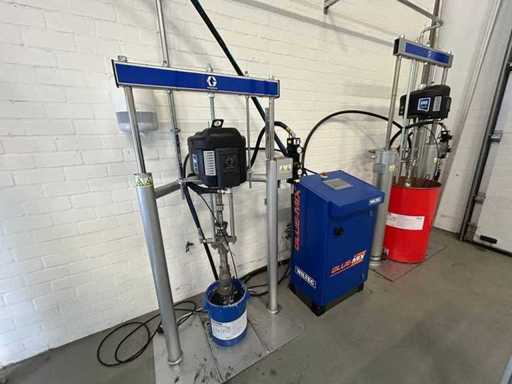

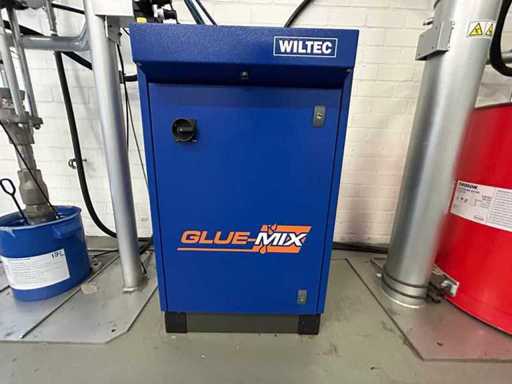

Glue dosing system GlueMix 2K dosing system

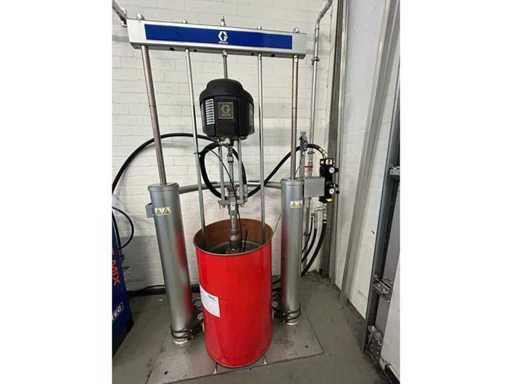

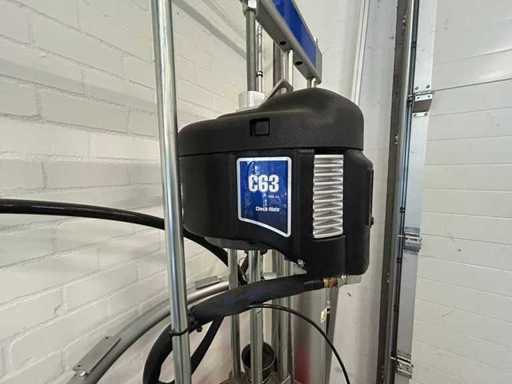

Dosing pumps Industrial gear pumps

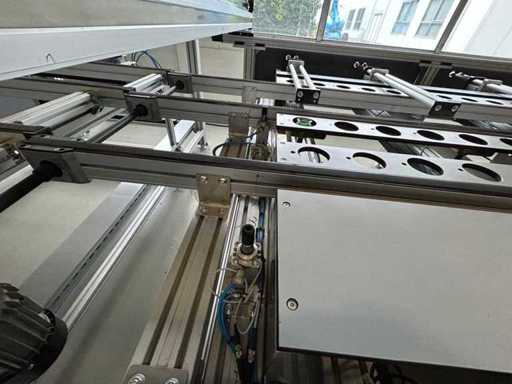

Pick & Place drive:

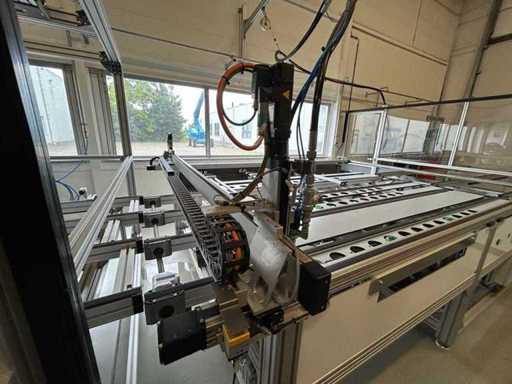

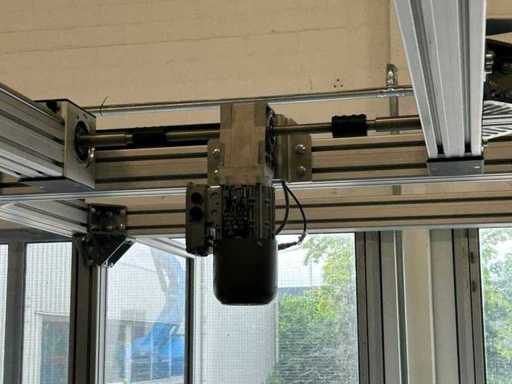

Servo or pneumatically driven XY unit
Vacuum system with ejectors from Fest
Vacuum technology:
Vacuum generators (Venturi type)
Individually switchable suction cups

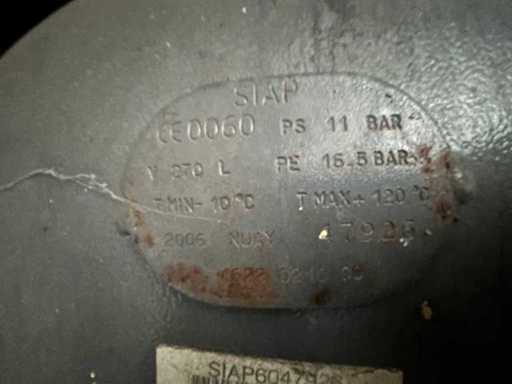

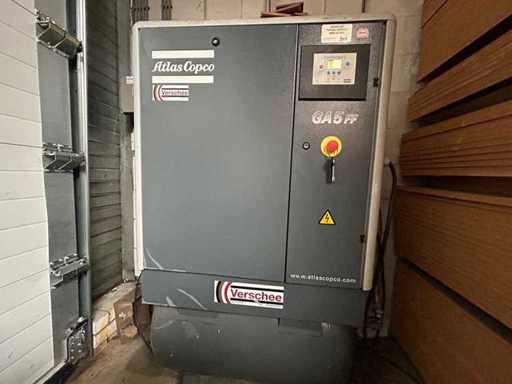

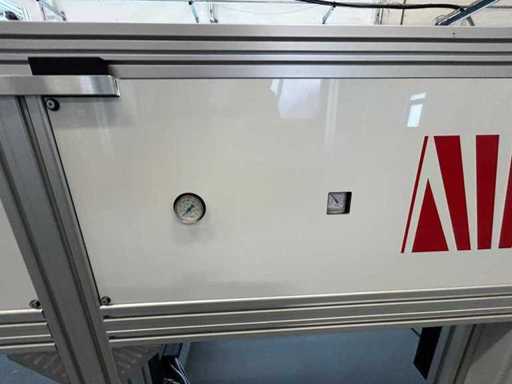

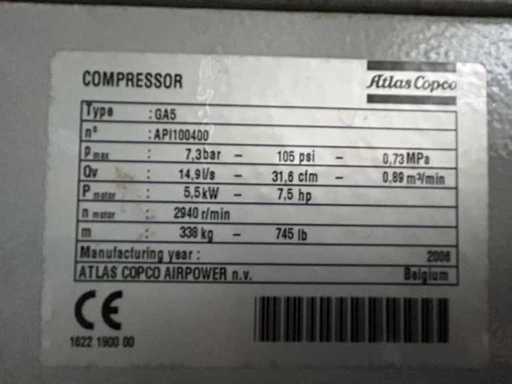

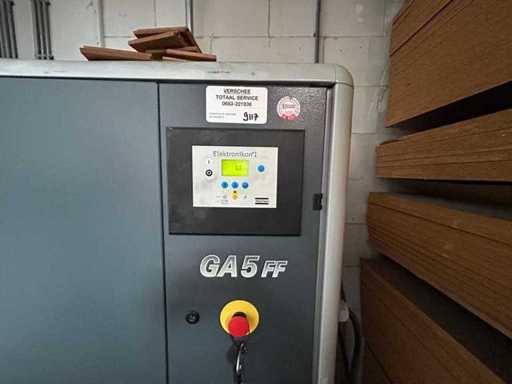

Pneumatics:
Components from Festo
Valve terminal for central control
Working pressure: 6–8 bar

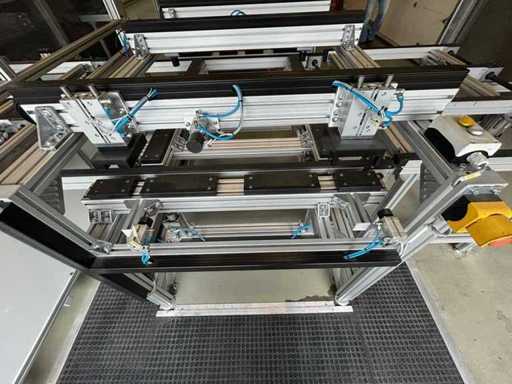

Press module:

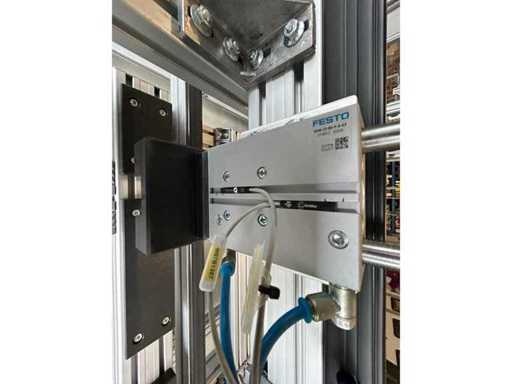

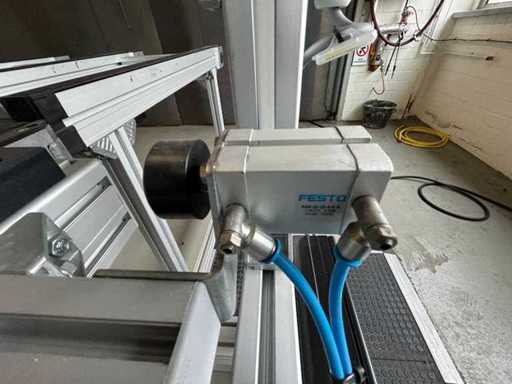

Pneumatic cylinders from Festo
Pressure control via pressure reducing valve

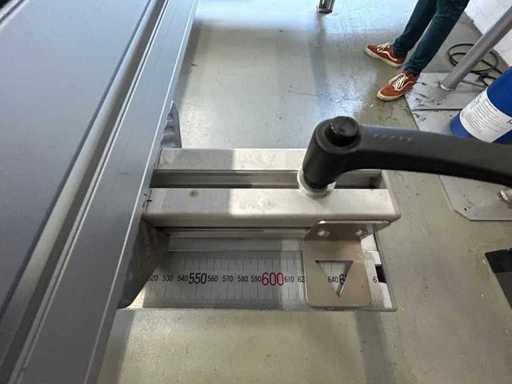

Mechanically adjustable stroke and position
Sensors:

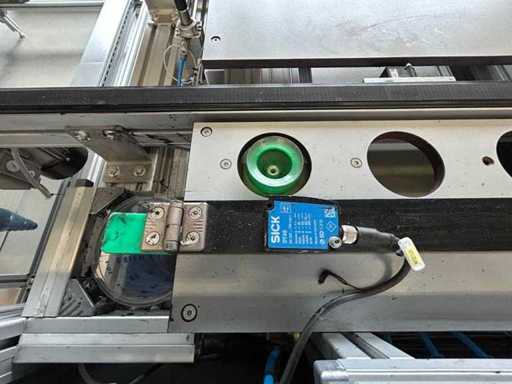

Position sensors and limit switches
Photocells for product detection

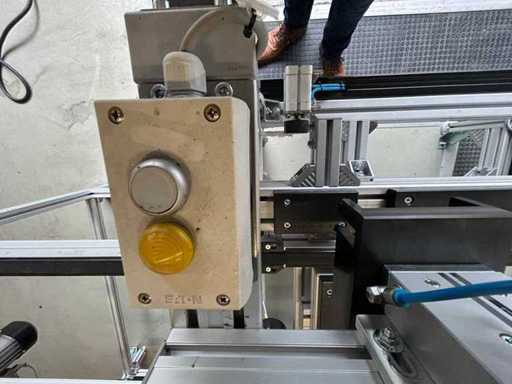

Safety systems:
Safety relays

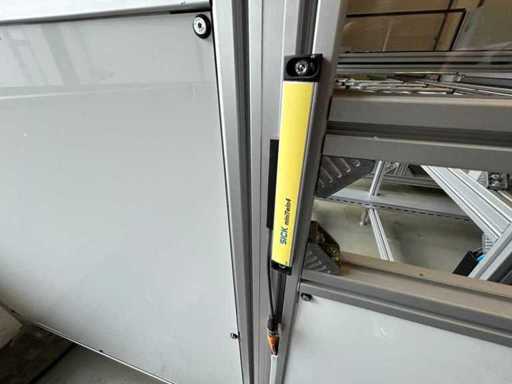

Light curtains

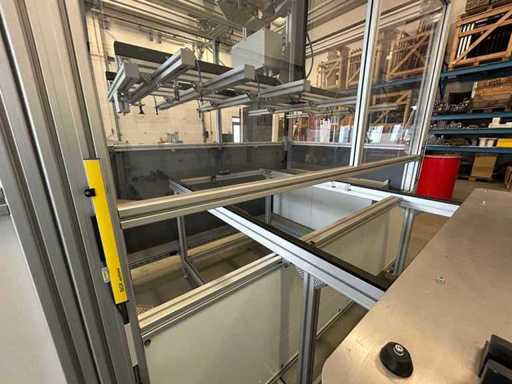

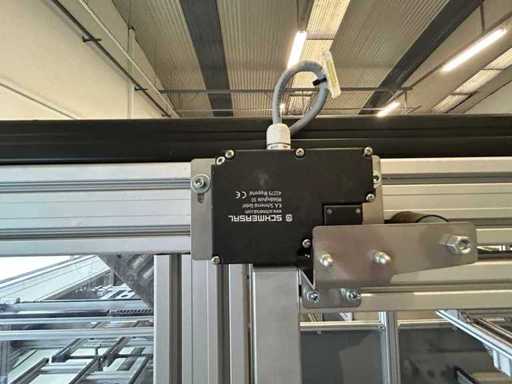

Safety mats and door interlocks

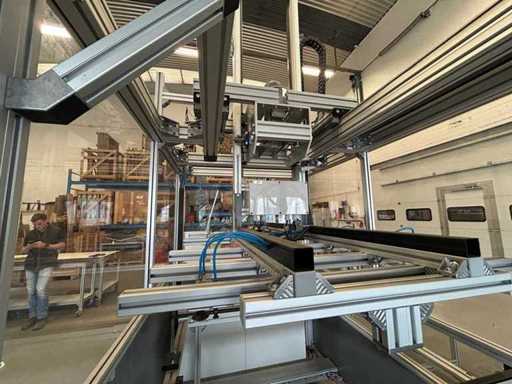

Construction:

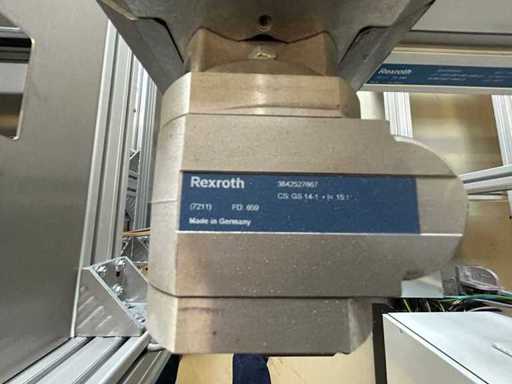

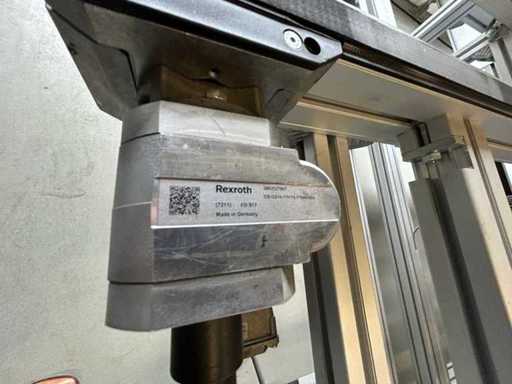

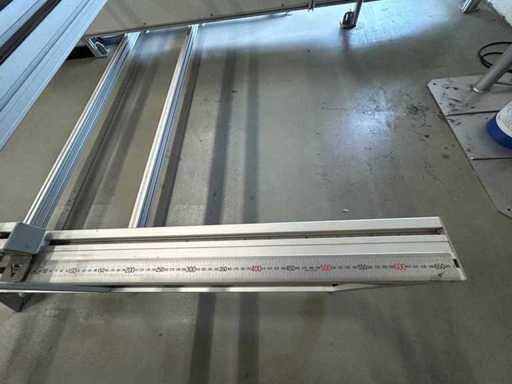

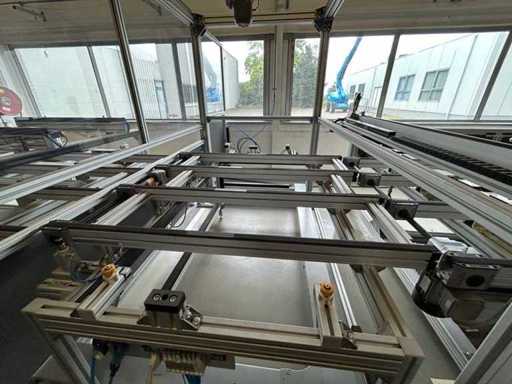

Frame based on aluminium Rexroth BSB system

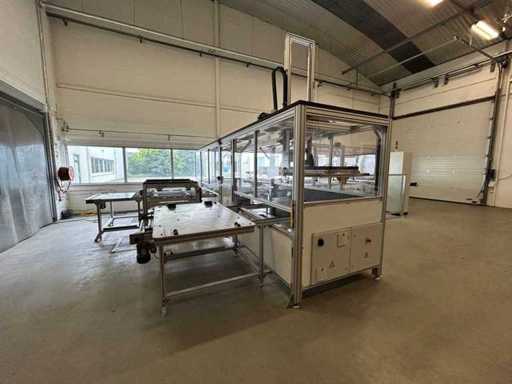

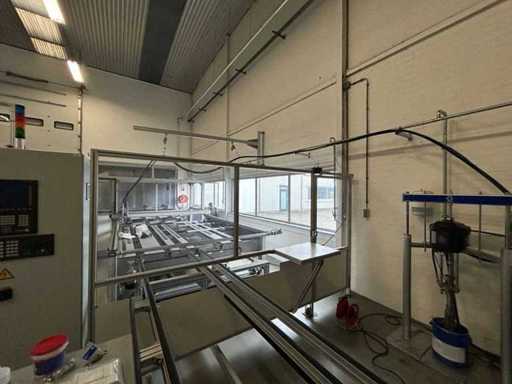

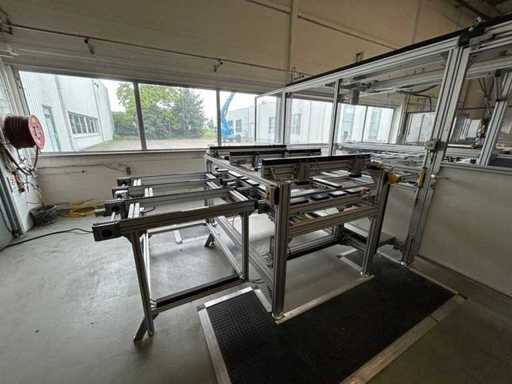

Modular line structure (infeed / glue / P&P / press / outfeed)
CNC control: Siemens SINUMERIK 828D
PLC control:
Siemens SIMATIC PLC
Profinet communication between stations
HMI:
Siemens SIMATIC HMI Comfort Panel
Touchscreen control with recipe management and diagnostics
Servo drive (XY-axis):
Siemens SINAMICS servo drives
Servo motors for precise positioning XY unit
Transport drive Industrial AC motors with frequency converter
Glue dosing system GlueMix 2K dosing system
Dosing pumps Industrial gear pumps
Pick & Place drive:
Servo or pneumatically driven XY unit
Vacuum system with ejectors from Fest
Vacuum technology:
Vacuum generators (Venturi type)
Individually switchable suction cups
Pneumatics:
Components from Festo
Valve terminal for central control
Working pressure: 6–8 bar
Press module:
Pneumatic cylinders from Festo
Pressure control via pressure reducing valve
Mechanically adjustable stroke and position
Sensors:
Position sensors and limit switches
Photocells for product detection
Safety systems:
Safety relays
Light curtains
Safety mats and door interlocks
Construction:
Frame based on aluminium Rexroth BSB system
Modular line structure (infeed / glue / P&P / press / outfeed)

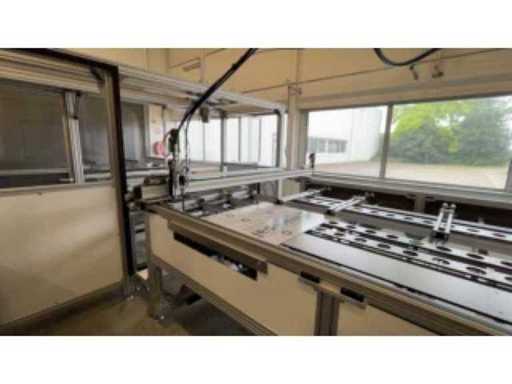

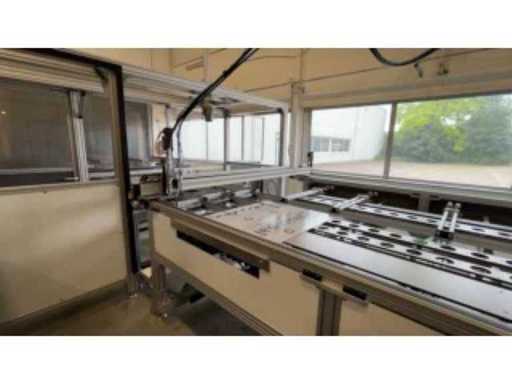

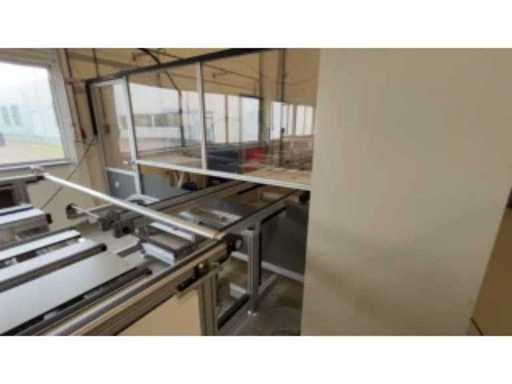

Video
See the details and take a closer look at the item in this video.
