General Description

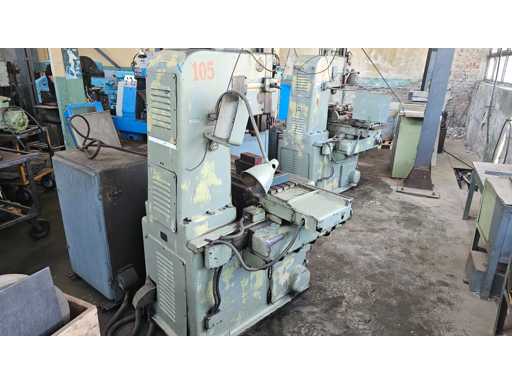

Universal vertical tool milling machine manufactured by the Kirov Machine Tool Plant, Odessa (USSR). Designed for precision milling, drilling, slotting and general toolroom machining. The machine is equipped with a geared vertical spindle, T-slot work table and heavy-duty machine vise.

Technical Details

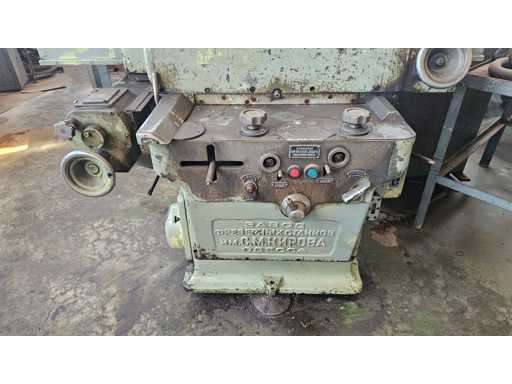

Manufacturer: Kirov Machine Tool Plant, Odessa (USSR)
Machine type: Universal vertical tool milling machine
Year: Not confirmed
Spindle speeds: 145 / 290 / 580 / 725 / 1,450 / 2,900 rpm

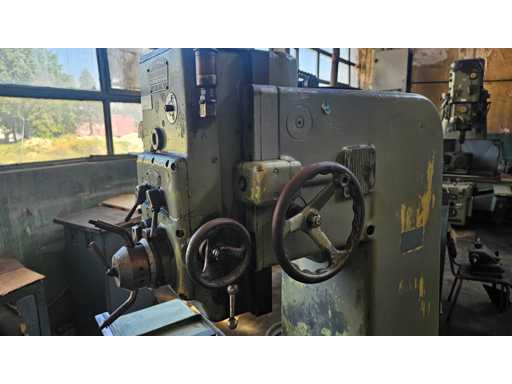

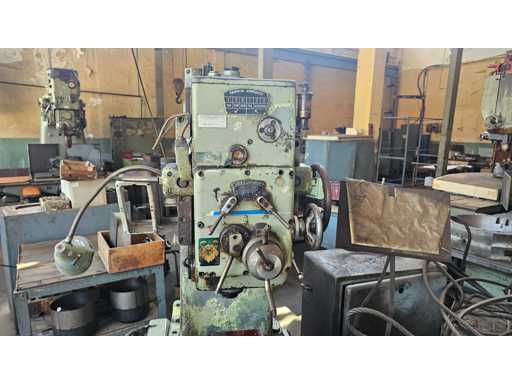

Vertical spindle head

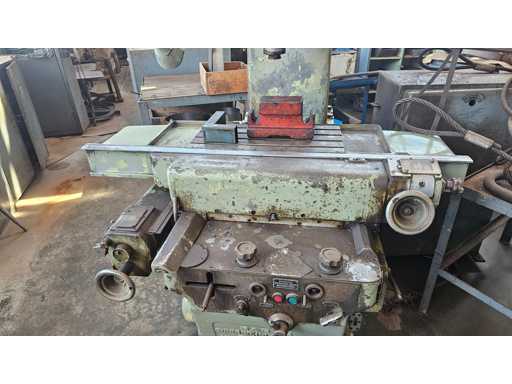

T-slot machine table
Heavy-duty machine vise included
Longitudinal power feed

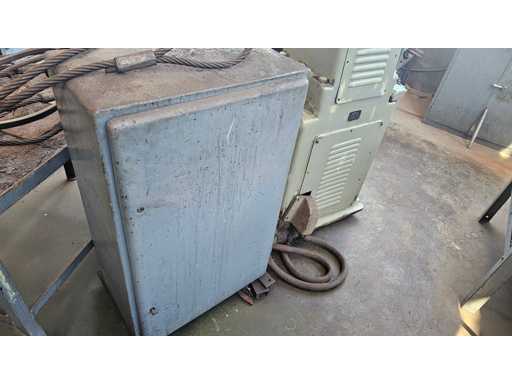

Separate electrical cabinet
Machine work light

Condition
Fair to good used condition. The machine appears mechanically complete with spindle gearbox, T-slot table, heavy-duty vise and electrical cabinet installed. Cosmetic paint wear, industrial staining and light surface oxidation are visible. Operational status, spindle accuracy and feed mechanisms have not been tested.

Dimensions
Length: Approx. 2,100 mm
Width: Approx. 1,800 mm
Height: Approx. 2,400 mm
Weight: Approx. 3,000 kg
