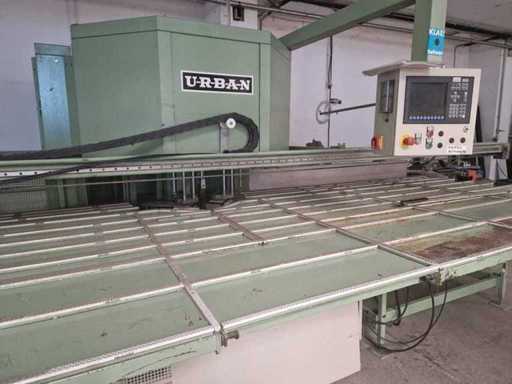

URBAN SV 530 Cordon Clearing Machine

General Description
CNC cordon (weld seam) cleaning machine manufactured by URBAN GmbH & Co., model SV 530. Designed for automatic removal of excess weld material from PVC window and door frames after welding. Suitable for integration into automated PVC window production lines.

Technical Details
Manufacturer: URBAN GmbH & Co.
Model: SV 530
Machine type: CNC cordon cleaning machine
Machine No.: 530659
Power supply: 230/400 V, 50 Hz
Installed power: 3.5 kW
Control voltage: 24 VDC
Protection class: IP54

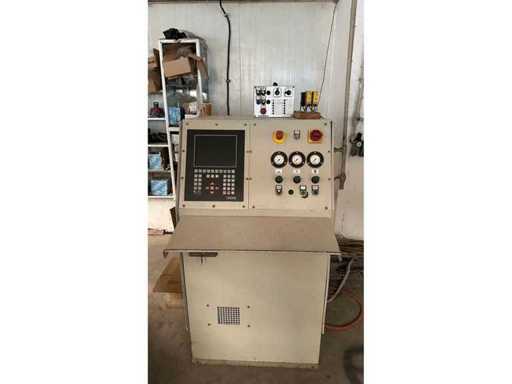

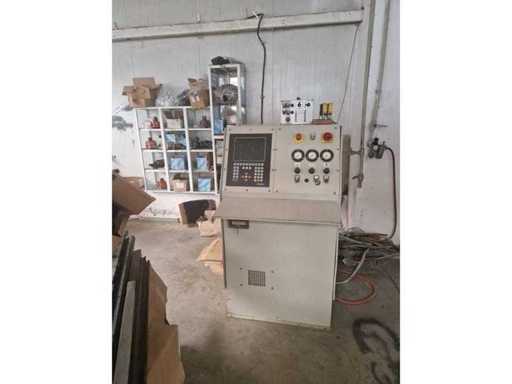

Original URBAN CNC operator panel

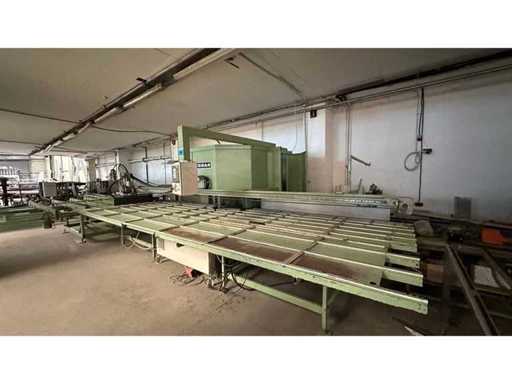

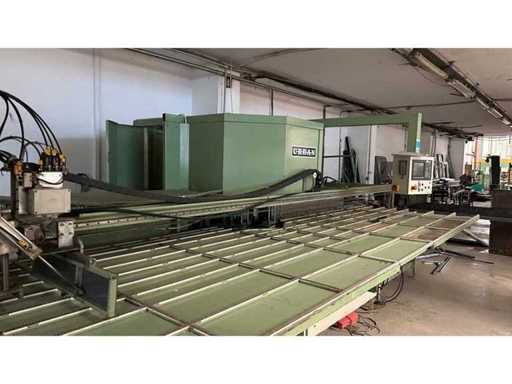

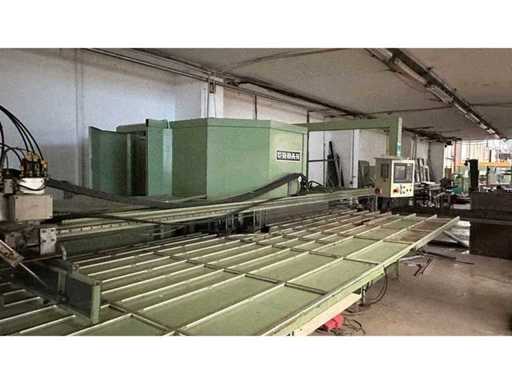

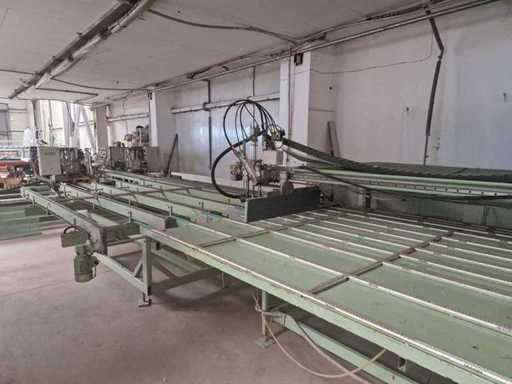

Automatic profile handling table
Pneumatic system with pressure gauges
Cleaning enclosure

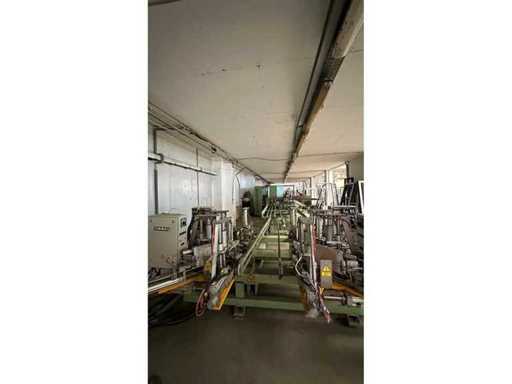

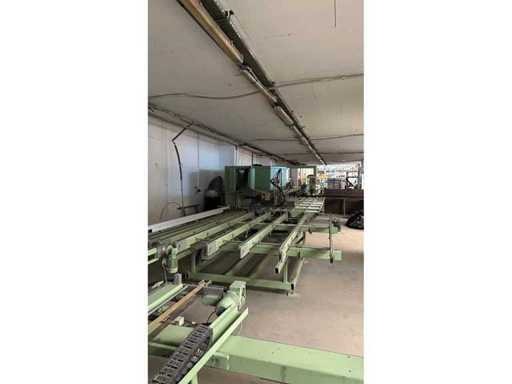

Integrated conveyor system

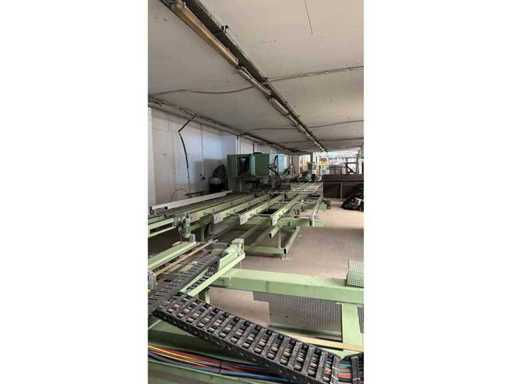

Cable chain

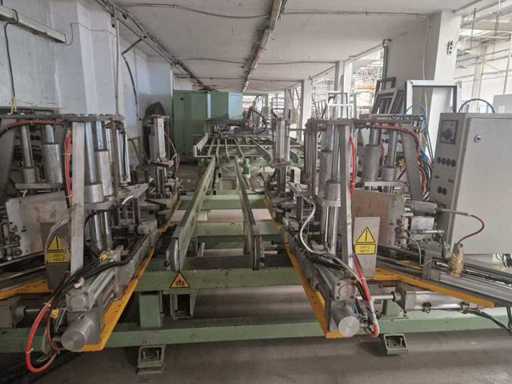

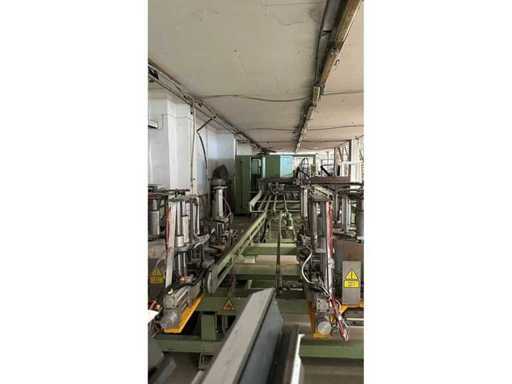

Automatic weld seam cleaning stations

Condition
Good used industrial condition. The machine appears complete with CNC control console, conveyor system, cleaning stations, pneumatic equipment and safety devices installed. It remains installed in a production environment and shows only normal cosmetic wear consistent with industrial use. Operational status has not been independently verified.

Dimensions
Length: Approx. 9,000 mm
Width: Approx. 2,500 mm
Height: Approx. 2,400 mm
Weight: Approx. 3,500 kg
