EMANUEL - Metal hall

Lot: Metal shed structure

Year of construction: 2025
Material: Steel (painted RAL 5023)
Total area: approx. 360 m²

Dimensions (L × W × H): approx. 30,000 × 12,000 × 6,500 mm
Gutter height: approx. 5,000 mm
Ridge height: approx. 6,500 mm
Roof slope: approx. 20°

Condition: Unused

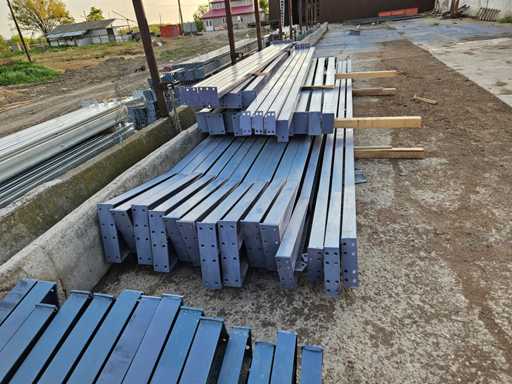

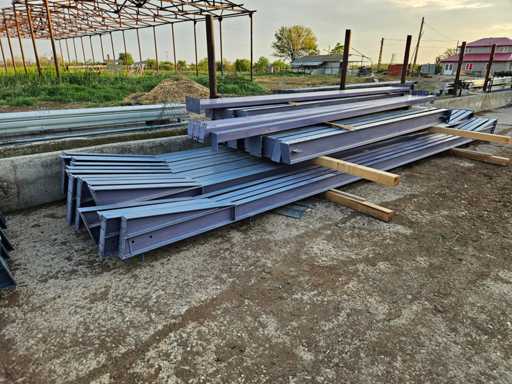

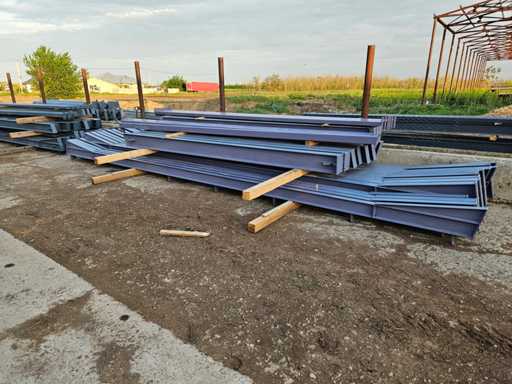

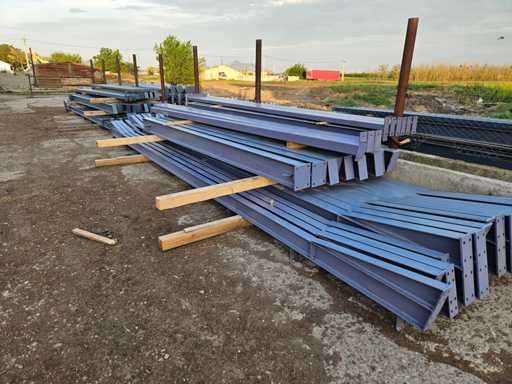

Structure includes:
- 2 end beams (trusses) made of IPE 160 profile
- 5 intermediate beams (trusses) made of IPE 200 profile
- 4 end columns made of IPE 160 profile
- 10 intermediate columns made of IPE 200 profile
- 3 door columns made of square tube 100 × 100 × 4 mm
- 6 pressure struts made of pipe Ø76 × 4 mm
- Wind bracing for beams and columns made of galvanized steel with 16 mm tensioners
- Fully bolted, dismantlable (removable) steel structure

Documentation:

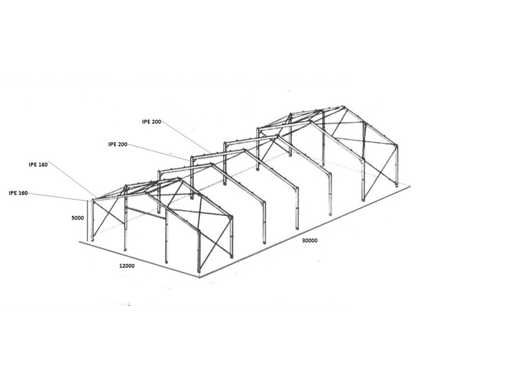

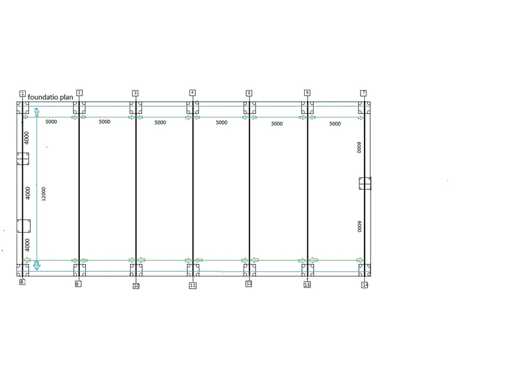

Includes certificate of conformity for materials, construction sketch and foundation plan

Loading: Free loading
