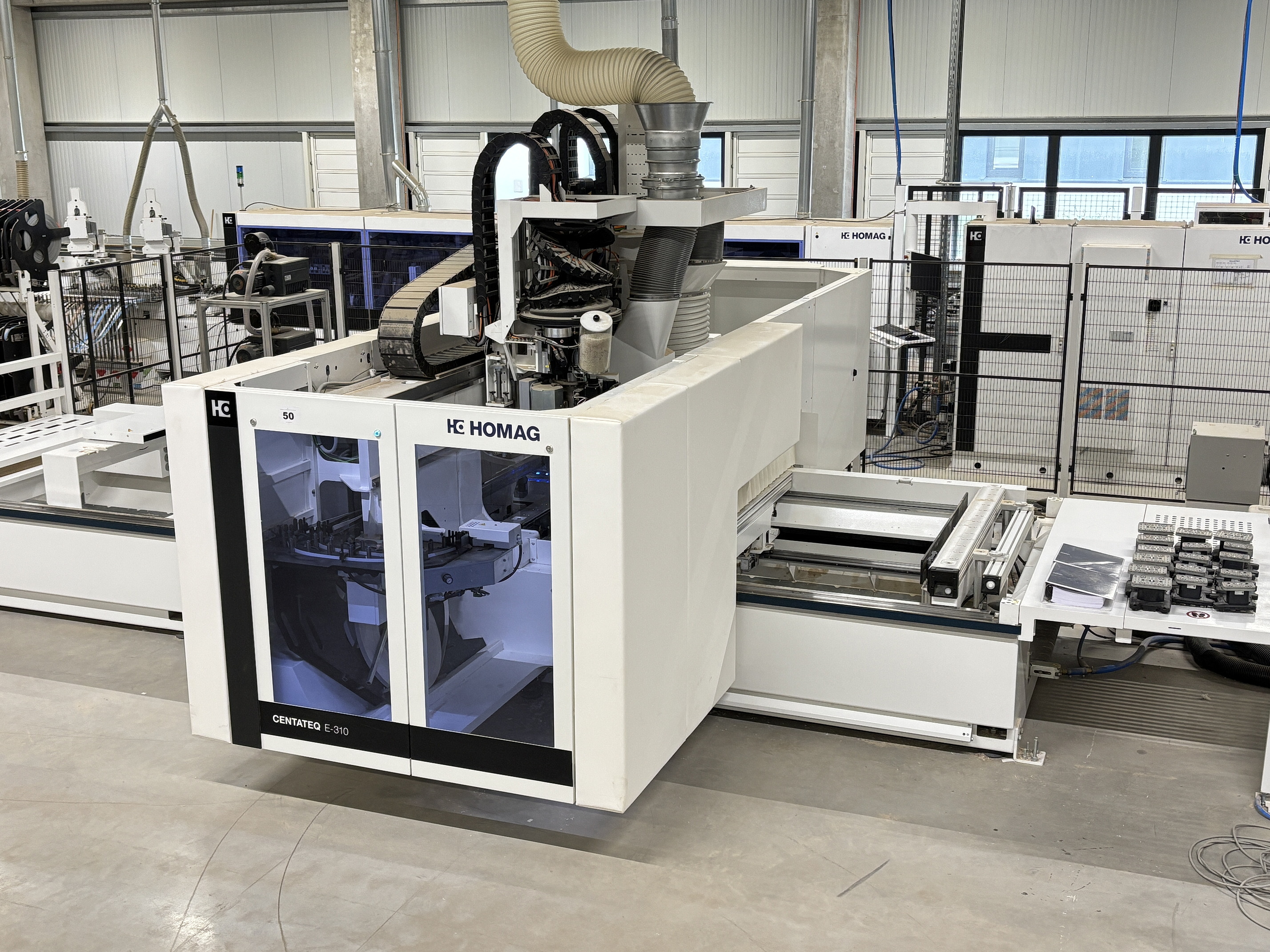

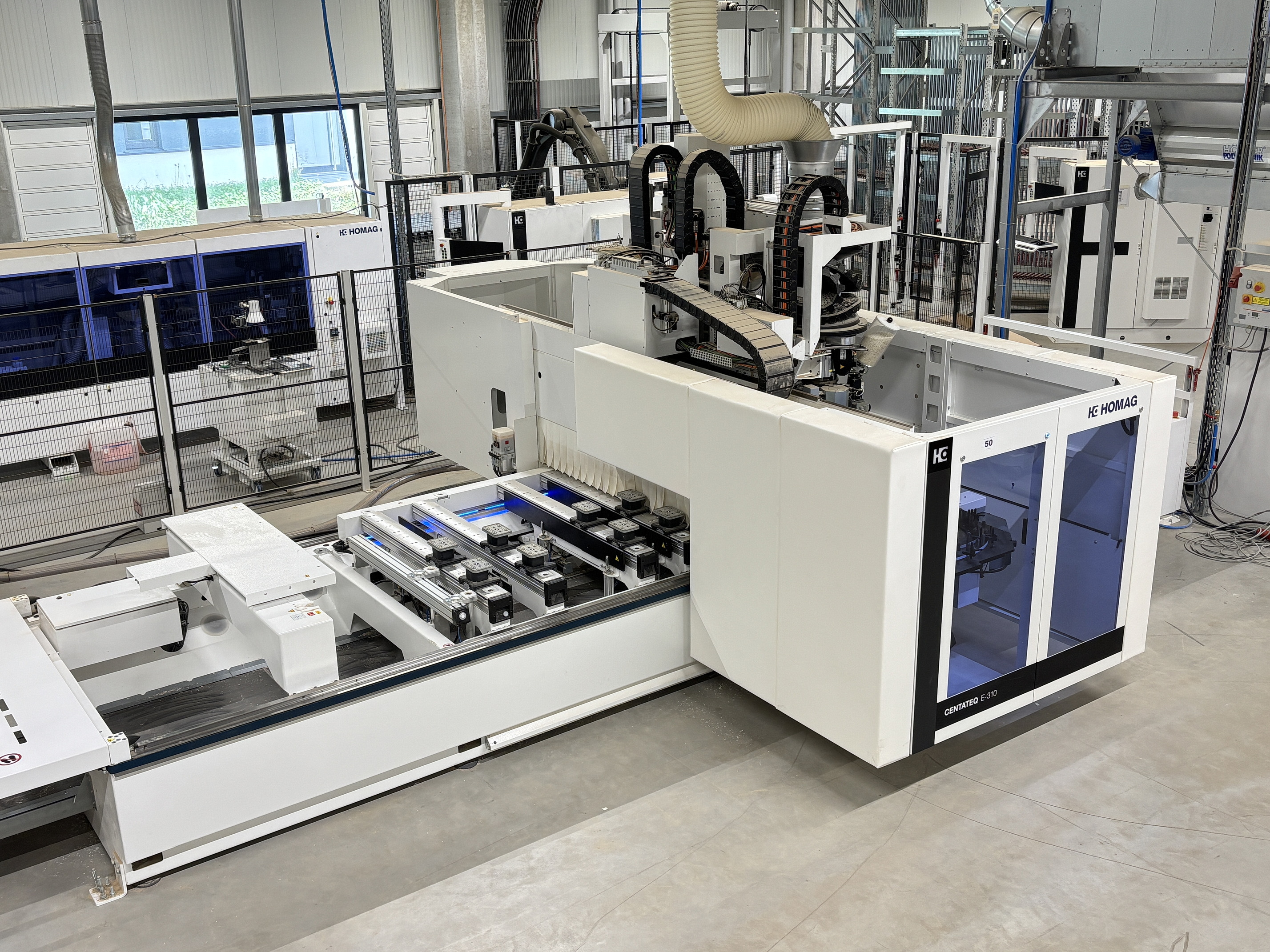

HOMAG Profi BMG 310/42/16/F/V/A Centateq 5-axis CNC machining center with Power Edge Pro Duo edge banding unit
The very well maintained and top equipped HOMAG Profi BMG 310/42/16/F/V/A Centateq 5-axis CNC machining center with edge banding unit has only a few operating hours.
Serial number: 0-201-73-6025
Year of construction: 2022
Power Control PC87 Powertouch 24” Full HD
Software WoodWOP 8.0
Speed Pack
A-Flex table with LED
Technical Data
Workpiece length of all units X-axis max. approx. 4200 mm
Workpiece length milling X-axis max. approx. 4375 mm
Workpiece width milling Y-axis stop rear max. approx. 1600 mm
Workpiece width edge Y-axis stop front max. approx. 1350 mm
Workpiece width edge Y-axis stop rear max. approx. 1600 mm
Workpiece thickness edge max. approx. 60 mm
Travel speed X-axis 80 m/min
Travel speed Y-axis 60 m/min
Travel speed Z-axis 25 m/min
Main spindle Drive5C
Motor 12 KW

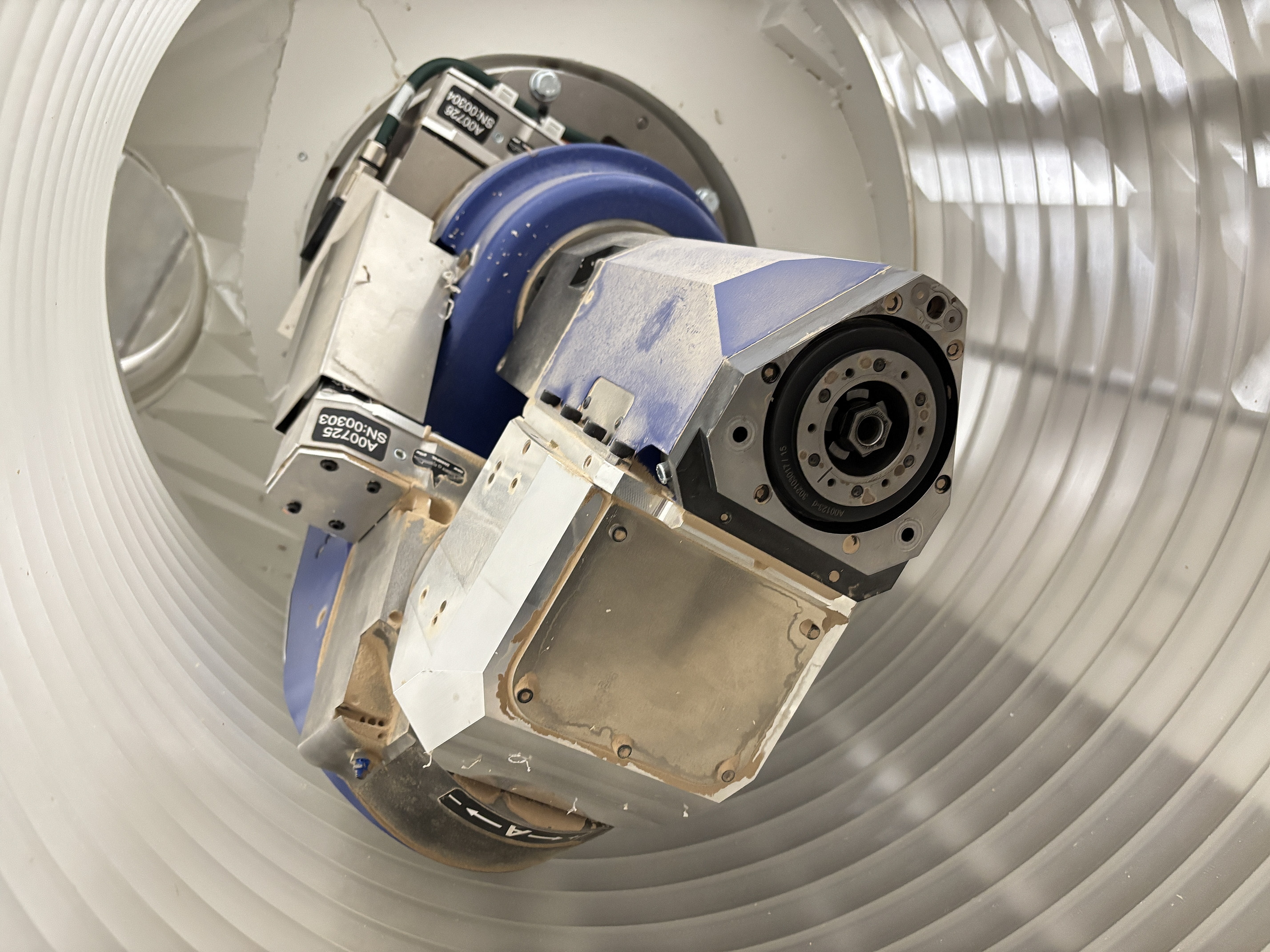

Cardanic 5-axis milling spindle
Rotation angle C-axis at A= 0 Grad +/- 361°
Rotation angle A-axis +/- 100°
Speed 500 – 24000 U/min
Vibration sensor
Tool changer plate 14-fold rear
Tool changer plate 14-fold rear
Tool changer linear 8-fold at the side
Edge banding Power Edge Pro Duo 360°
Edge thickness 0,4 – 3 mm
Edge height max. approx. 65 mm
Workpiece thickness max. approx. 60 mm
Edge magazine 2-fold with pre-cutting station
360° gluing with butt joint
Blow nozzle on the support for edge cleaning
Crosscut saw unit
Flush milling and scraping unit
Drilling head with 18 spindles V12/H4X2Y/S0/90°
Drilling vertical 12 spindle (grid 32 mm)
Drilling horizontal X-direction 4 spindle
Drilling horizontal Y-direction 2 spindle
Groove saw aggregate 0/90°
Automatic work table A-Flex
Work table with automatic positioning system
Workpiece support console 8 pieces
Lifting arms
Stops back and front row
Vacuum pumps 3 pieces each approx. 63 m³/h
Chip belt
