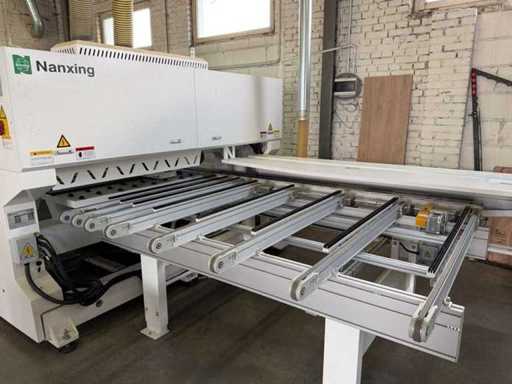

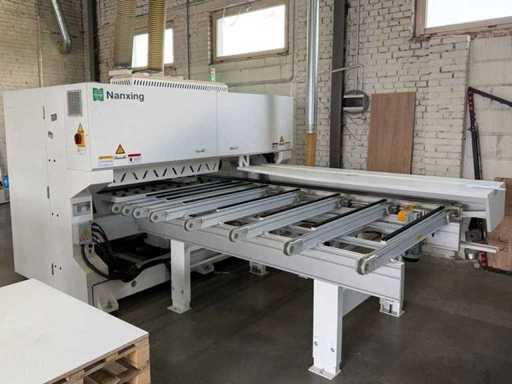

NANXING - NCB612DX - DRILLING CENTER - 2024
- Puja actual
- Estado
Importe total de la puja máxima
Ver desglose total
Importe total de la puja máxima
Ver desglose total
Importe de la puja
Ver desglose total
Importe de la puja
Ver desglose total
Especificaciones del lote
- Cantidad
- 1
- Margen
- Sí
- Marca
- NANXING
- Tipo
- NCB612DX
- Año de construcción
- 2024
- Color
- White
- Condiciones de entrega
- Ex fundación-sin empaquetar
Descripción
Type of Machining Drilling Milling
X-axis working area 3000 mm
Y-axis working area 1200 mm
Main electrospindle power 3.5 KW
Number of axes controlled 3 axes
Total number of drilling spindles 35
X-axis working area 3000 mm
Y-axis working area 1200 mm
Maximum workpiece throughput 60 mm

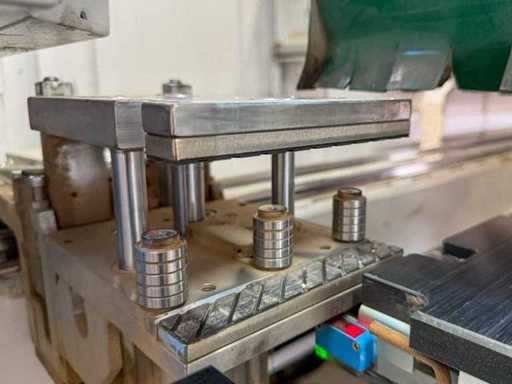

Workpiece holding pliers yes
No. of pliers 2
Automatic panel unloading system yes
With motorized
transfer Drilling operator unit 3

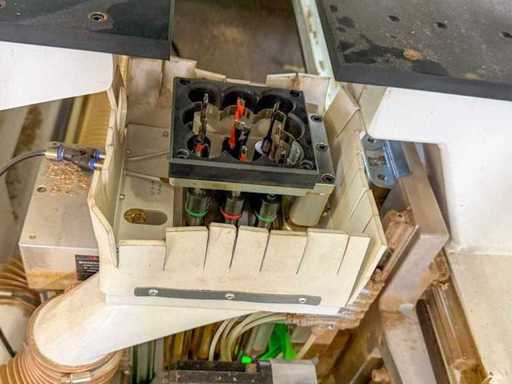

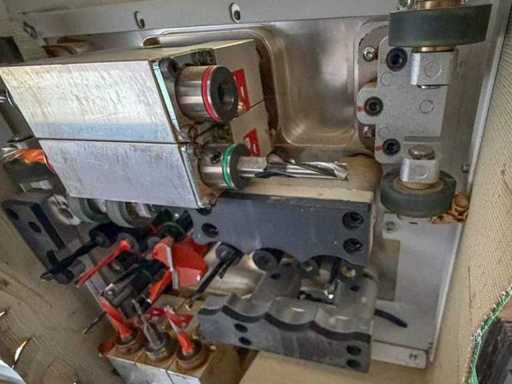

DRILLING OPERATOR UNIT 1
Group: Top
Spindles for vertical drilling: 18
Spindles for horizontal drilling in the X direction: 6
Horizontal drilling spindles in the Y direction: 4
Total number of vertical + horizontal spindles: 28
DRILLING OPERATOR UNIT 2
Group: Lower
Spindles for vertical drilling: 18
Spindles for horizontal drilling in the X direction: 6
Horizontal drilling spindles in the Y direction: 4
Total number of vertical + horizontal spindles: 28
DRILLING OPERATOR UNIT 3
Group: Lower
Spindles for vertical drilling: 9
Milling units 2

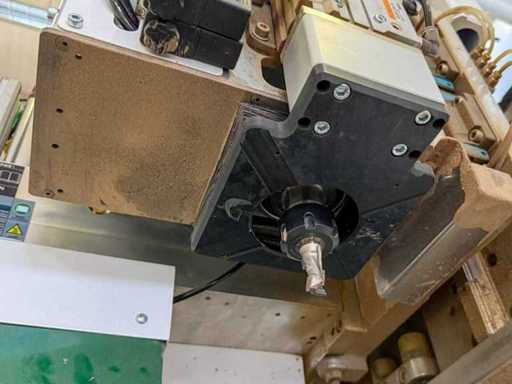

MILLING OPERATING UNITS 1
Group: Top
No. of axes checked: 3
Motor power: 3.5 kw
MILLING OPERATING UNITS 2
Group: Lower
No. of axes checked: 3
Motor power: 3.5 kw
CE marked safety regulation yes
Safety system Safety photocells
Total installed power 22.3 KW
X-axis working area 3000 mm
Y-axis working area 1200 mm
Main electrospindle power 3.5 KW
Number of axes controlled 3 axes
Total number of drilling spindles 35
X-axis working area 3000 mm
Y-axis working area 1200 mm
Maximum workpiece throughput 60 mm
Workpiece holding pliers yes
No. of pliers 2
Automatic panel unloading system yes
With motorized
transfer Drilling operator unit 3
DRILLING OPERATOR UNIT 1
Group: Top
Spindles for vertical drilling: 18
Spindles for horizontal drilling in the X direction: 6
Horizontal drilling spindles in the Y direction: 4
Total number of vertical + horizontal spindles: 28
DRILLING OPERATOR UNIT 2
Group: Lower
Spindles for vertical drilling: 18
Spindles for horizontal drilling in the X direction: 6
Horizontal drilling spindles in the Y direction: 4
Total number of vertical + horizontal spindles: 28
DRILLING OPERATOR UNIT 3
Group: Lower
Spindles for vertical drilling: 9
Milling units 2
MILLING OPERATING UNITS 1
Group: Top
No. of axes checked: 3
Motor power: 3.5 kw
MILLING OPERATING UNITS 2
Group: Lower
No. of axes checked: 3
Motor power: 3.5 kw
CE marked safety regulation yes
Safety system Safety photocells
Total installed power 22.3 KW
Comentarios
Last date for batch collection: 31/07/2026
The machine is sold and supplied in the state of fact and law in which it is ("seen and liked"), on the basis of photographic documentation and technical/commercial material provided exclusively for descriptive purposes. The Buyer has the right to inspect the asset prior to collection and assumes all responsibility relating to the installation, compliance with safety regulations and use of the machinery at the destination site.
