CLOOS QIROX Welding Robot Cell

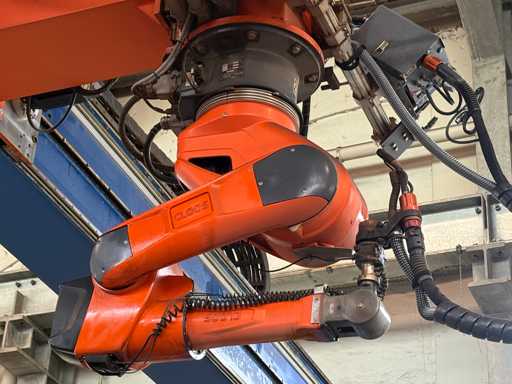

incl. two welding robots from the manufacturer CLOOS
with different welding equipment

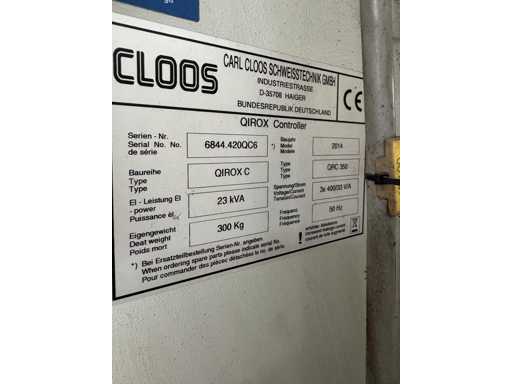

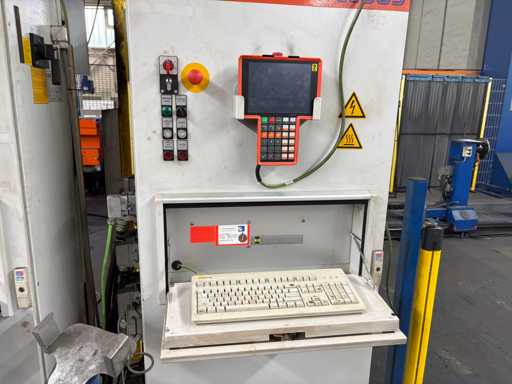

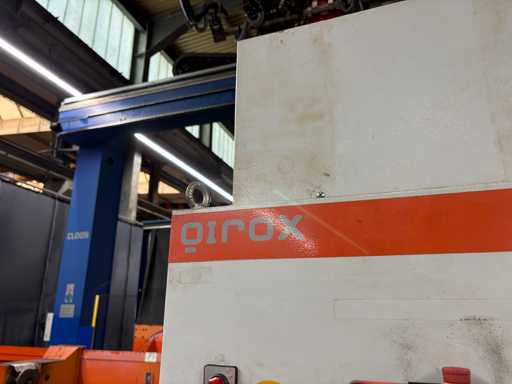

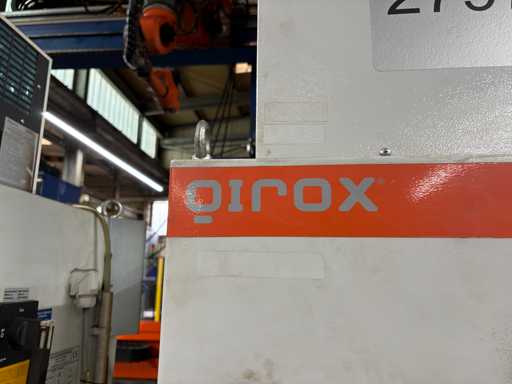

two QIROX control units
one CLOOS QR-CTU-50-09 pipe welding device
Load: 5000 N
Torque: 1000 Nm
Tipping torque: 2400 Nm
Dimensional moment of inertia: 150 kg/m²
Power: 2.8 kW
Load: 10,000 N

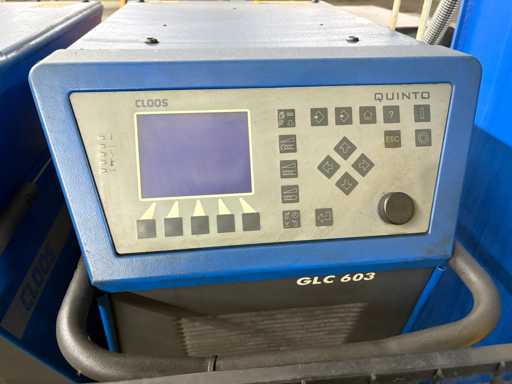

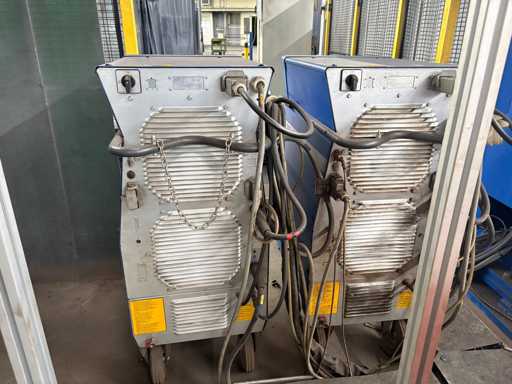

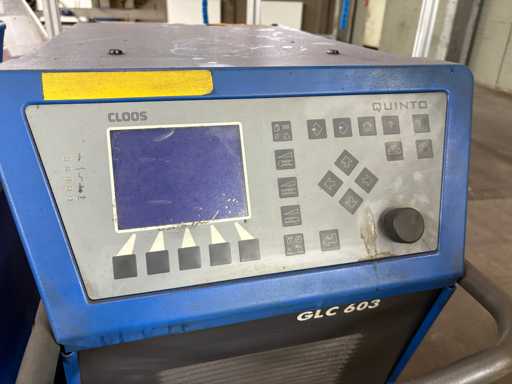

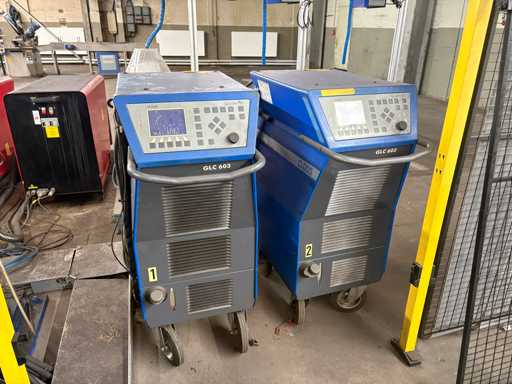

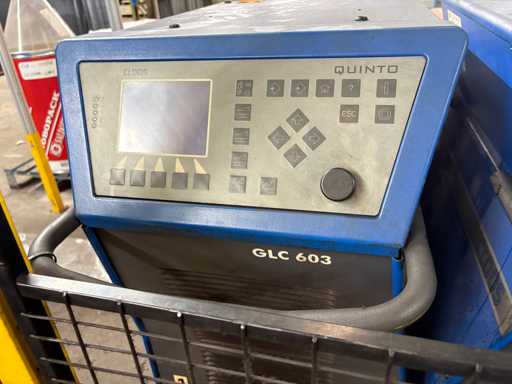

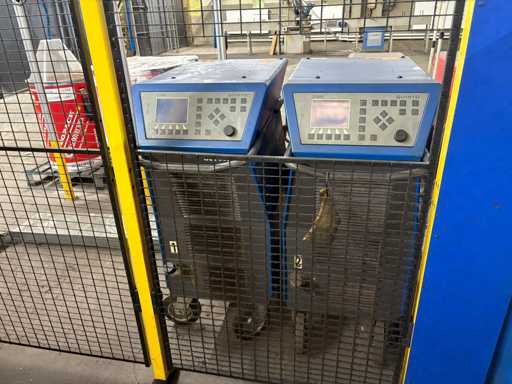

Four CLOOS welding machines
Type: GLC 603
with two tandem burning systems on the left and a single torch on the left and two tandem torches on the right and a single torch on the right

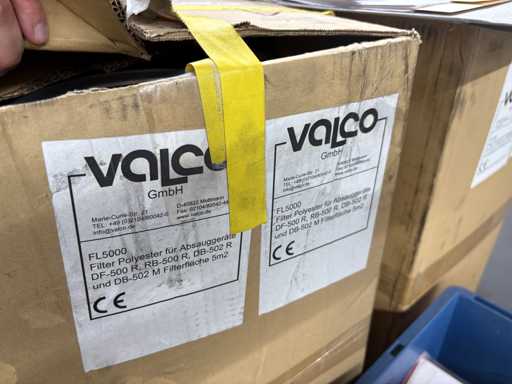

In addition, two welding fume extraction systems from the manufacturer STAUFFER, type: DB-50 2 R
with a turning system, type: CLOOS QR-CTU-50-09

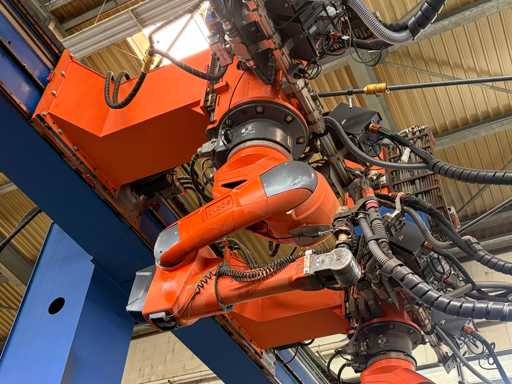

in portal design
Portal length: approx. 14,000 mm

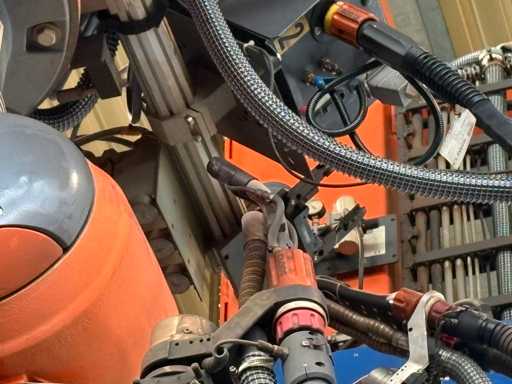

Welding torch holder with connection flange, tandem torch ZMW-640 A-31, robot welding torch for tandem welding
incl. torch cleaning unit CMR 6 T SR
Robot peripherals: workpiece positioning with vertical rotational movement, vertical stroke Load: 30 kN
Rotation radius: 1000 - 2500 mm
Face plate diameter: 1200 mm
Center height: 1000 to 2500 mm
Vertical stroke: 1500 mm
Rotation speed: 8°/sec
Lifting speed: 2 m/min
Rotation range: +- 360°

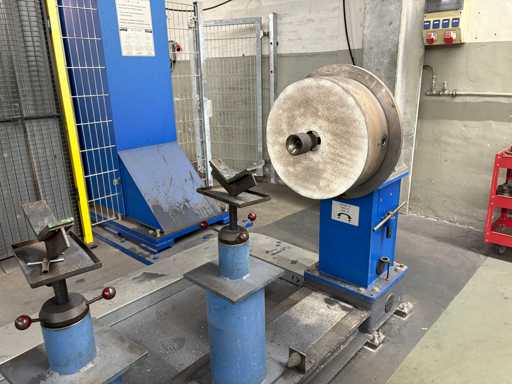

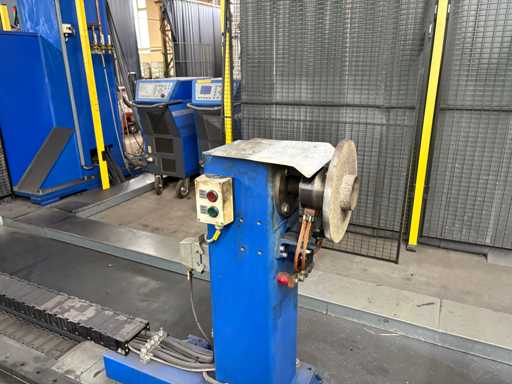

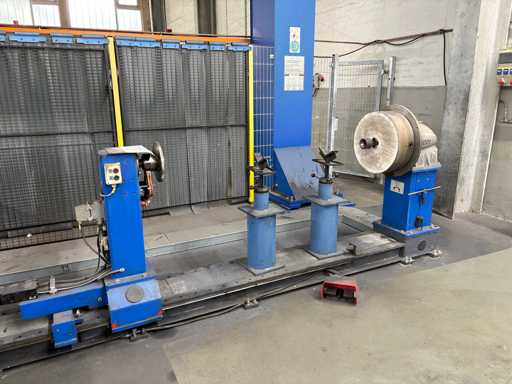

Workpiece positioning with vertical rotation and counter bearing
The drive side and the counter bearing can be moved synchronously
Clamping length: max. 4000 mm
Approximate travel X: approx. 9000 mm
Attention: the machine can be transported on a standard truck!

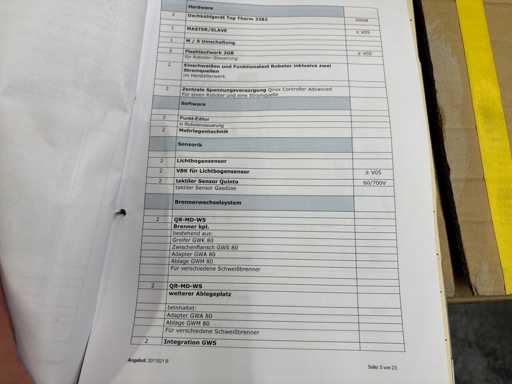

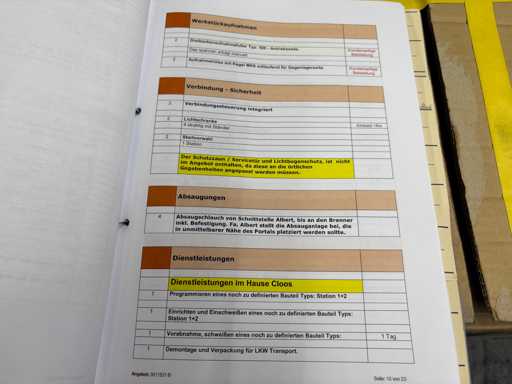

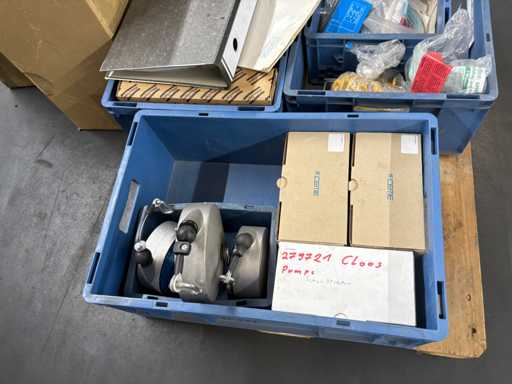

incl. extensive accessories and documentation
