G-Weike LF-3015GAR Sheet & Tube Fiber Laser Cutting Machine, incl. accessories
- Puja actual
- Estado
Importe total de la puja máxima
Ver desglose total
Importe total de la puja máxima
Ver desglose total
Importe de la puja
Ver desglose total
Importe de la puja
Ver desglose total
Especificaciones del lote
- Cantidad
- 1
- Margen
- No
- Marca
- G-WEIKE
- Tipo
- LF-3015GAR
- Longitud de onda
- 1064nm
- Rango de trabajo x
- 3000mm
- Rango de trabajo y
- 1500mm
- Sección mínima
- 20mm
- Sección máxima
- 3000mm
- Velocidad de corte
- 120m/min
- Conexión eléctrica
- 380V
- Dimensión l
- 9500mm
- Dimensión w
- 3760mm
- Dimensión h
- 2520mm
Descripción

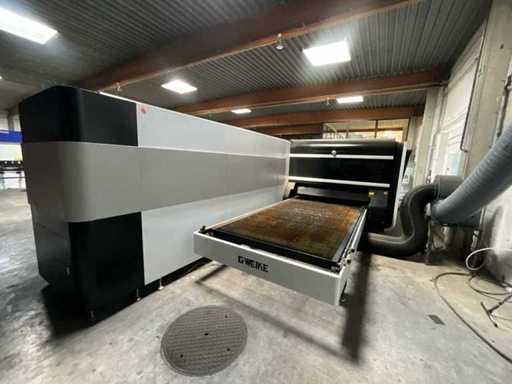

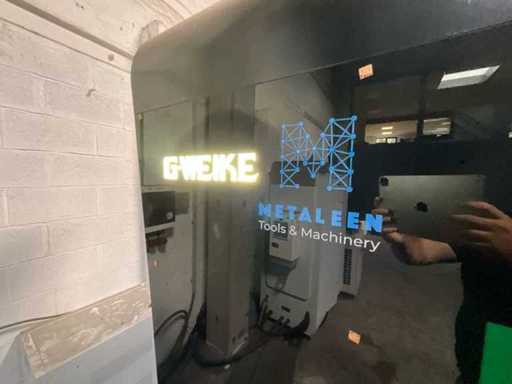

Professional fiber laser cutting machine for both plates and tubes, brand G-Weike, model LF-3015GAR, offered by Metaleen Tools & Machinery.

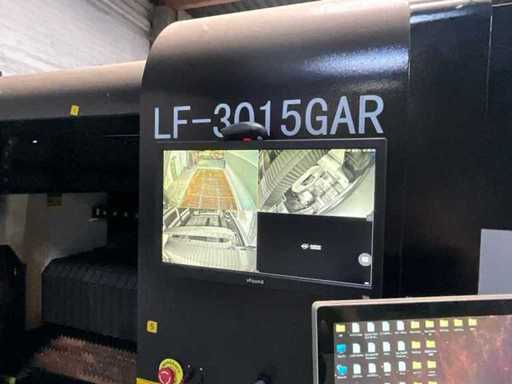

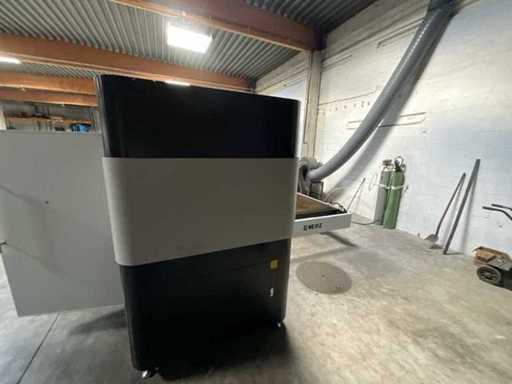

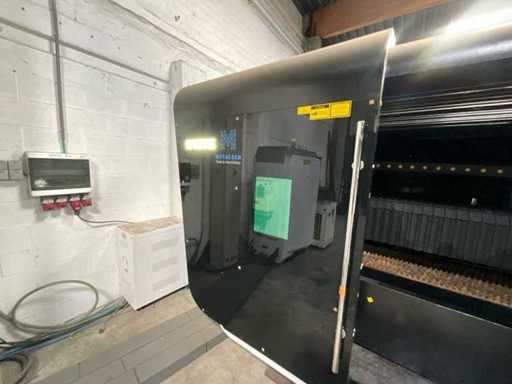

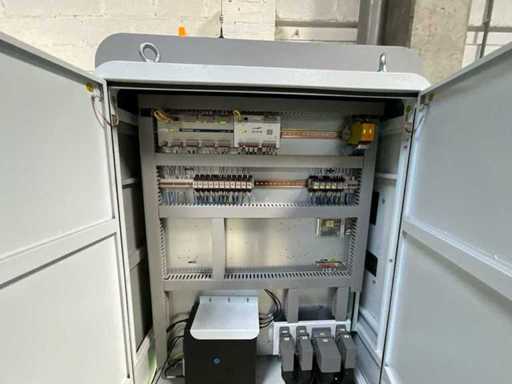

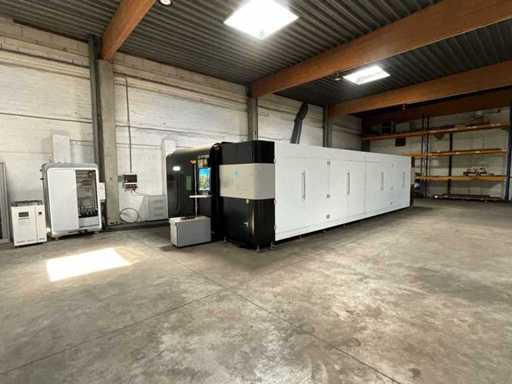

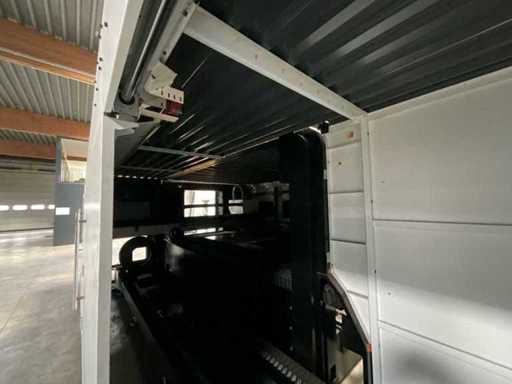

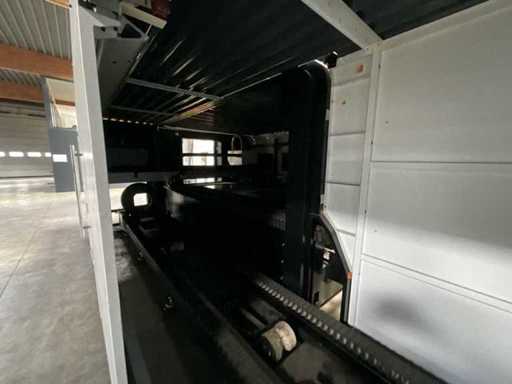

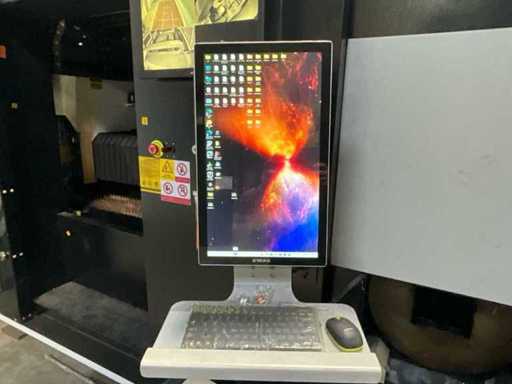

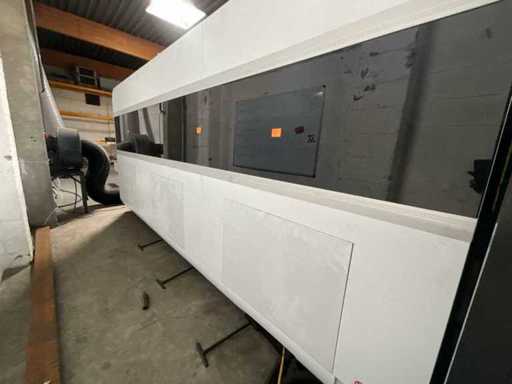

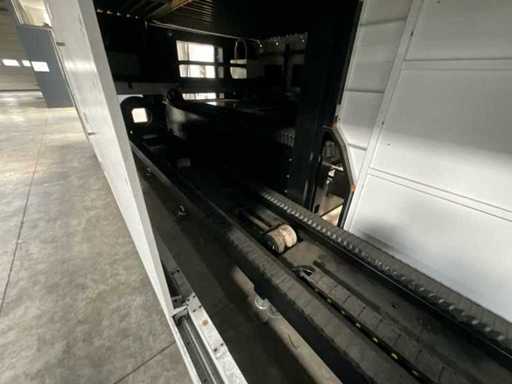

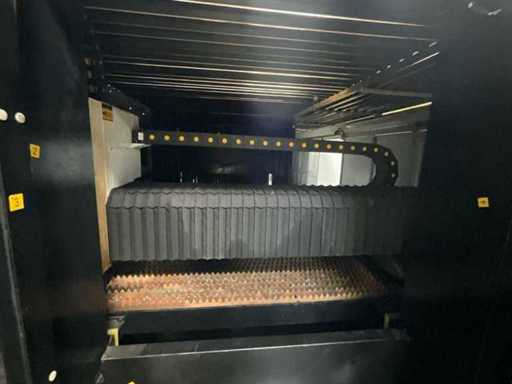

The machine features a fully enclosed safety housing with multiple access doors, a CNC control box with touchscreen, and a rack/rack drive system on the X-axis for high cutting speed and precision.

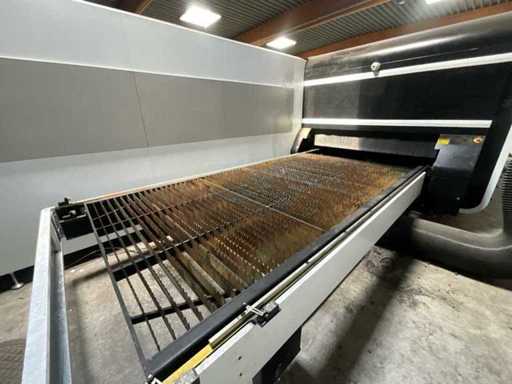

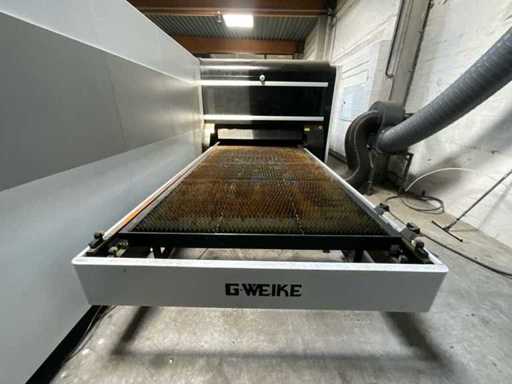

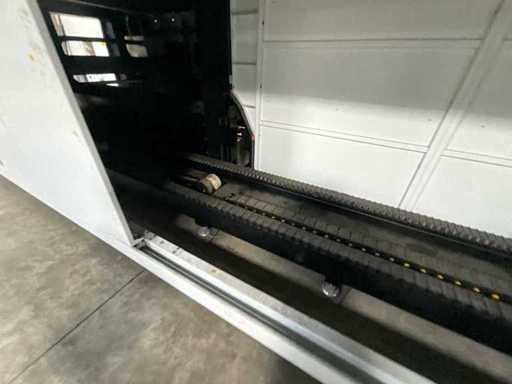

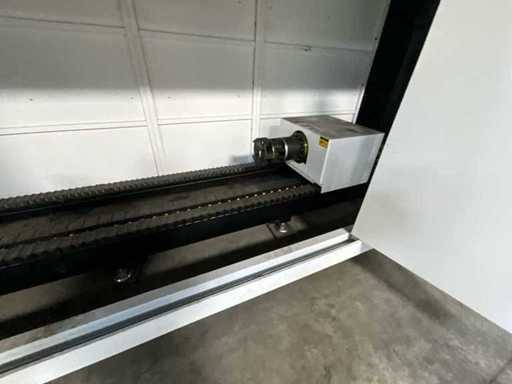

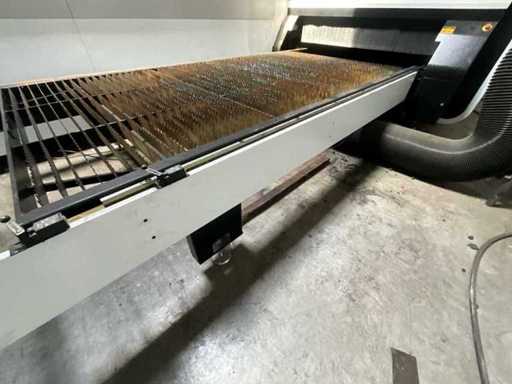

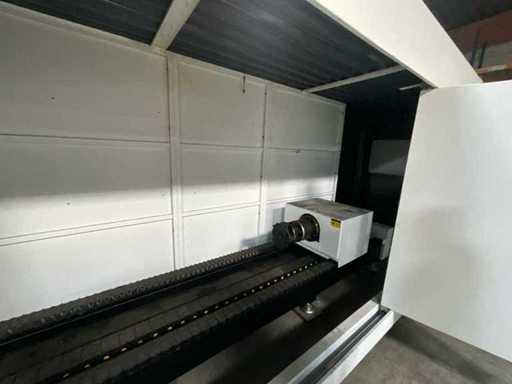

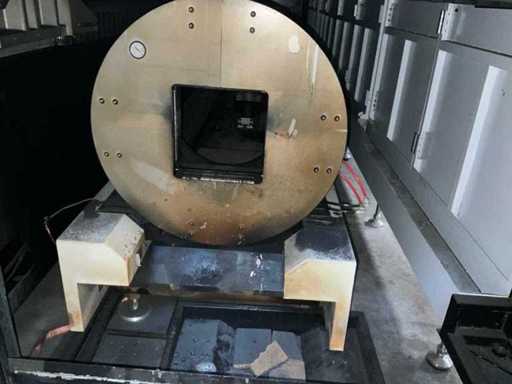

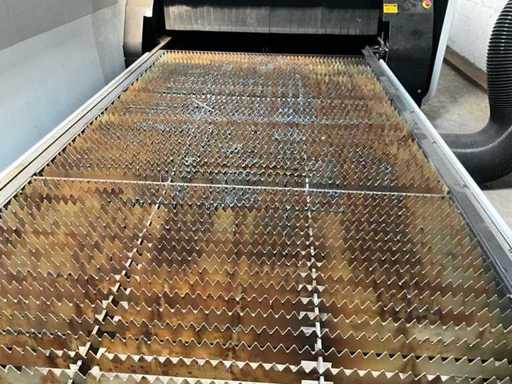

Bed size 3000 x 1500 mm (plate mode), supplemented by an integrated tube support system for cutting round/square profile tubes.
Included accessories (all included in the sale):.

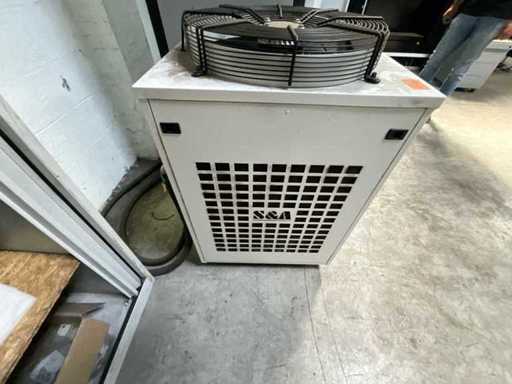

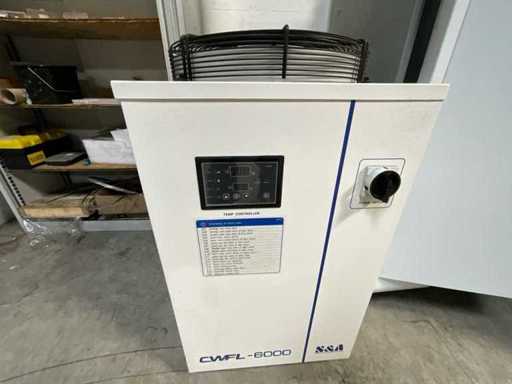

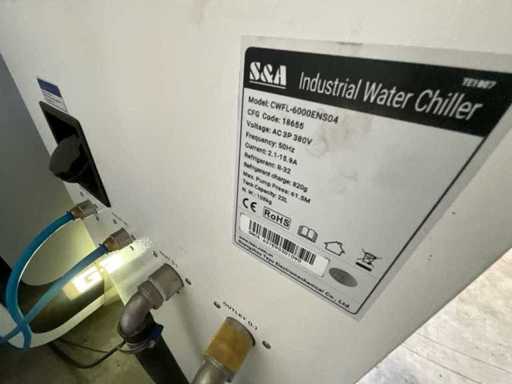

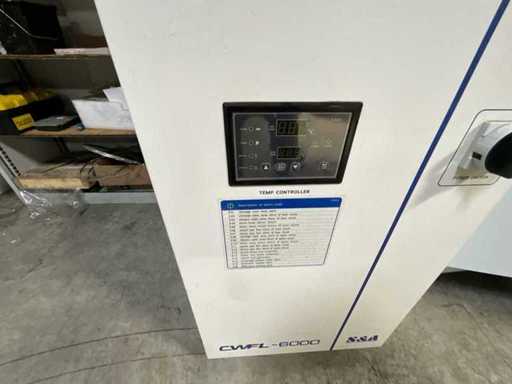

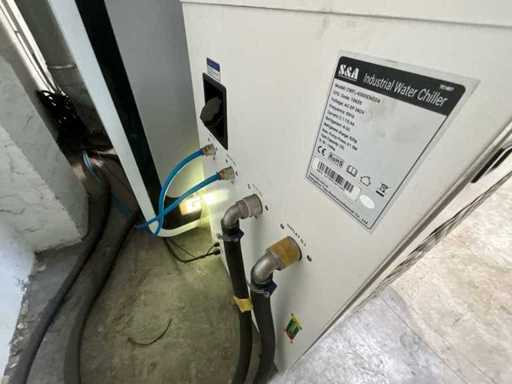

1x S&A Industrial Water Chiller, model CWFL-6000ENS04, CFG code 18655, AC 3P 380V/50Hz, current 2.1-15.9A, refrigerant R-32 (820g), max. pump pressure 61.5M, tank capacity 22L, net weight 108kg, CE/RoHS certified.

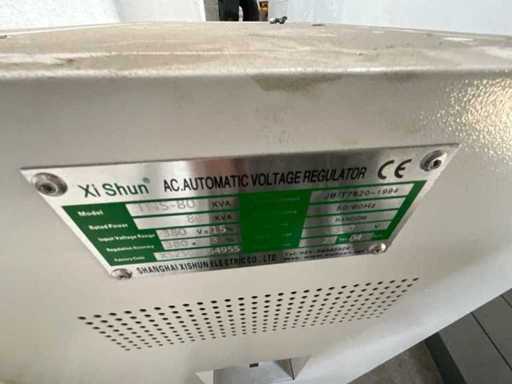

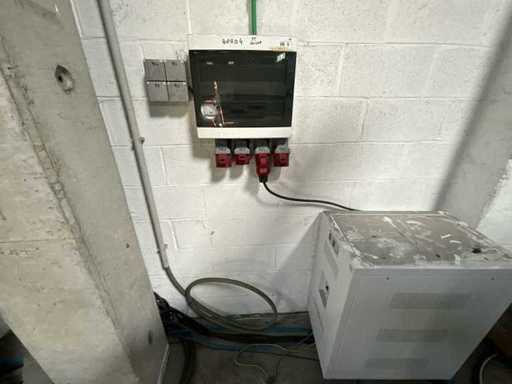

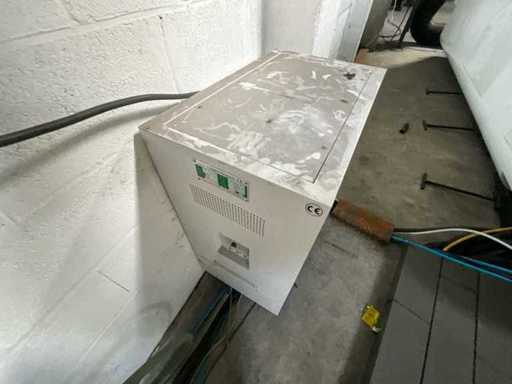

1x Xi Shun AC Automatic Voltage Regulator, model TNS-80, 80 KVA, input voltage 380V ±15%, output voltage 380V, manufacturer Shanghai Xishun Electric Co., CE certified.

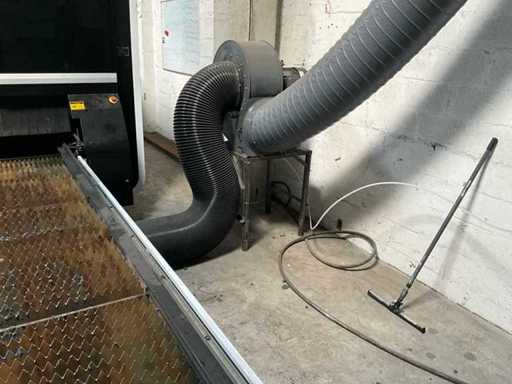

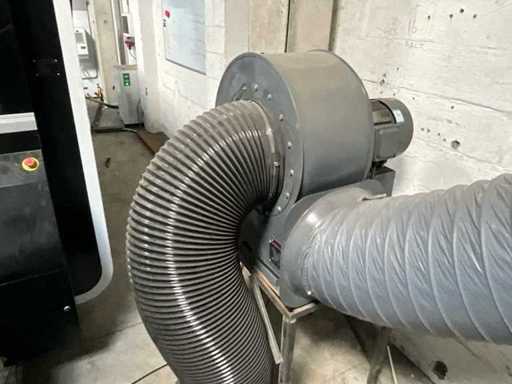

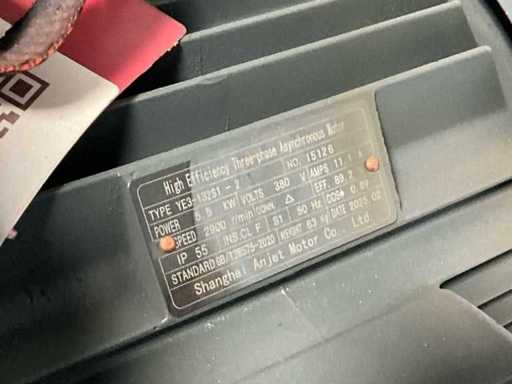

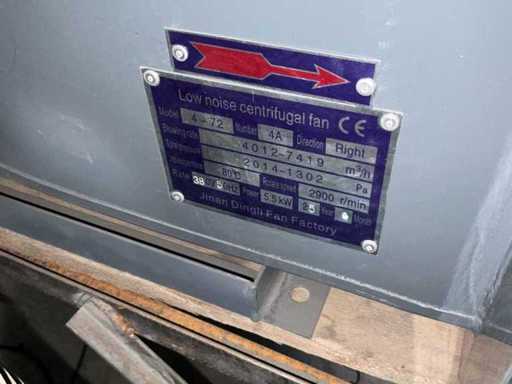

1x Jinan Dingli Low Noise Centrifugal Fan, model 4-72 no. 4A, power supply 380V/50Hz, power 5.5 kW, speed 2900 rpm, CE certified.

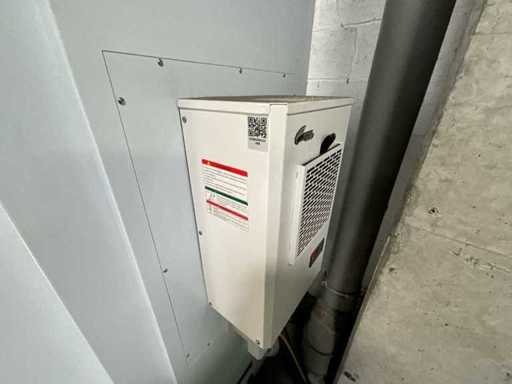

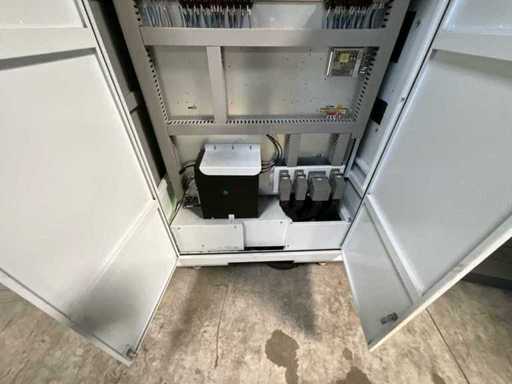

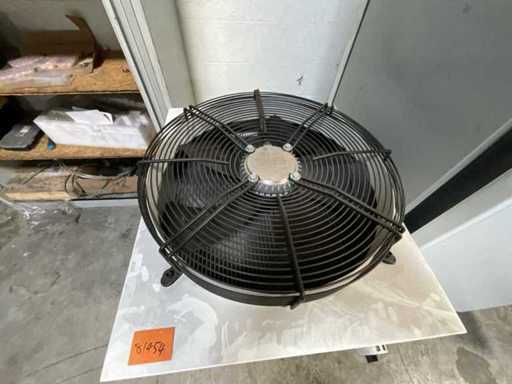

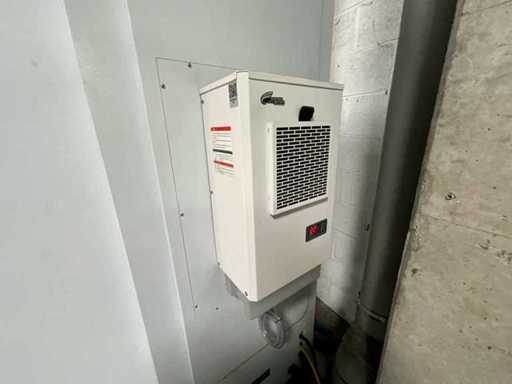

1x Winnel electric cabinet cooler (panel cooling for control cabinet), wall mounting.
Condition: signs of use appropriate for commercial use, machine and accessories functional at the time of photography.
Origin: metalworking company.
