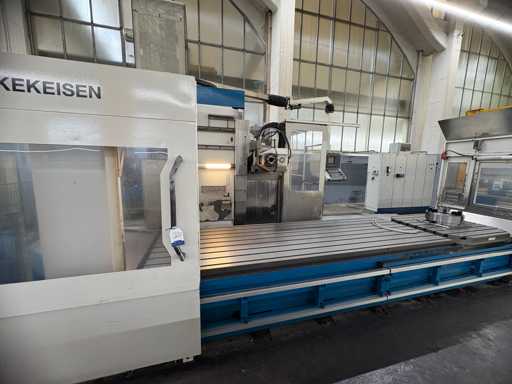

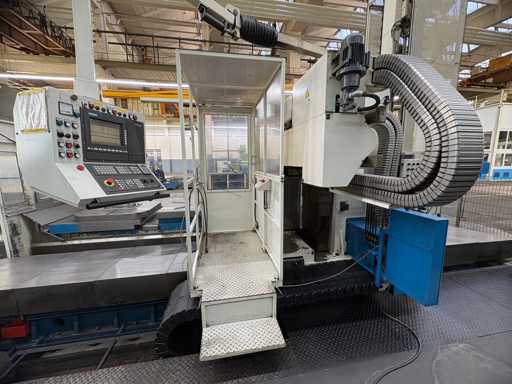

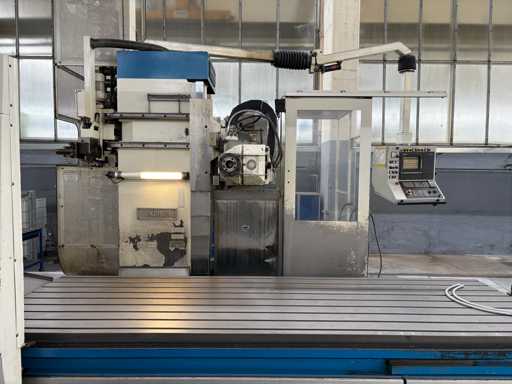

KEKEISEN UFF 5000/10 CNC Bed Milling Machine
- Puja actual
- Estado
Importe total de la puja máxima
Ver desglose total
Importe total de la puja máxima
Ver desglose total
Importe de la puja
Ver desglose total
Importe de la puja
Ver desglose total
Especificaciones del lote
- Cantidad
- 1
- Margen
- No
- Marca
- KEKEISEN
- Tipo
- UFF 5000/10
- Año de construcción
- 1997
- Peso de la máquina
- 20000kg
- Dimensión l
- 16000mm
- Dimensión w
- 6000mm
- Dimensión h
- 4500mm
- Condiciones de entrega
- Cargado en camión
Descripción

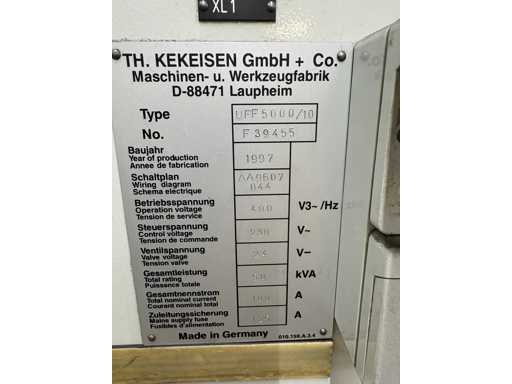

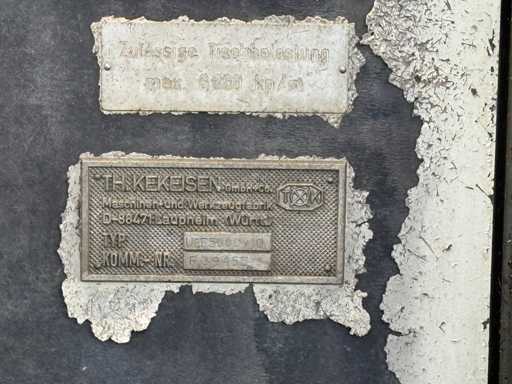

Machine number: F39455
Operating voltage: 400 V
Control voltage: 230 V
Frequency: 50 Hz
Rated current: 100 A
Connection: 50 kVA

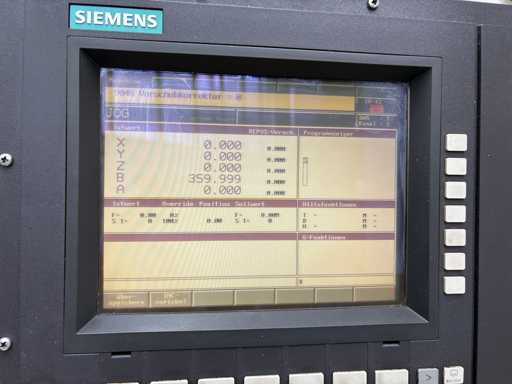

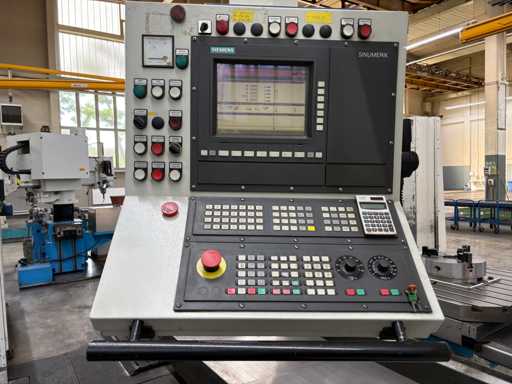

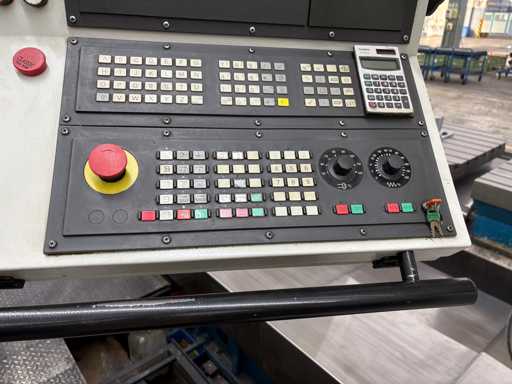

Control: SIEMENS SINUMERIK 840 C
Travel X-axis: 5000 mm
Travel Y-axis: 1200 mm
Travel Z-axis: 1000 mm
Rapid traverse: 0 - 10 m/min
Feed: 0 - 4 m/min
Speed: from 20 to 2800 rpm

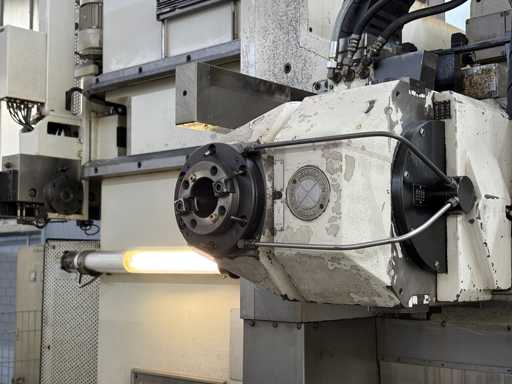

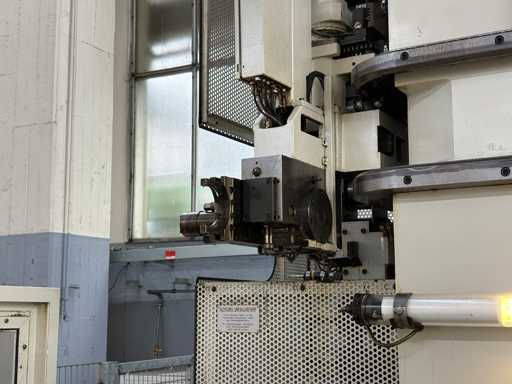

Milling head position vertical/horizontal/middle/horizontal right/horizontal left/horizontal top
Universal milling head particularly suitable for milling with 5-fold spindle positioning Drilling

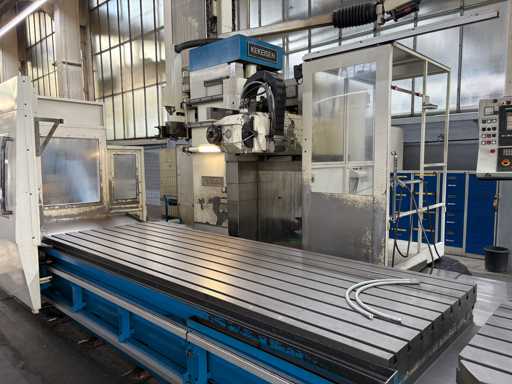

Table dimensions: 3750 x 1250 mm
with 9 grooves
Tool holder: SK 50

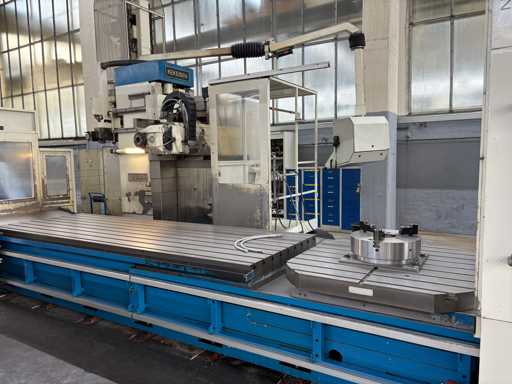

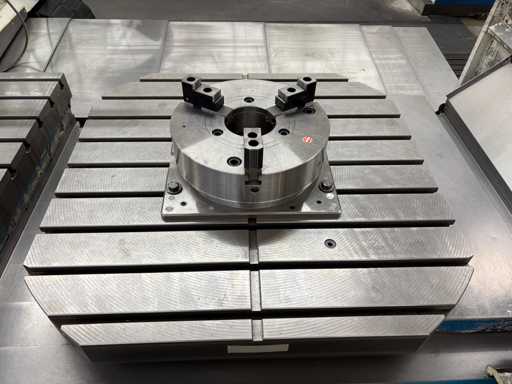

Rotary table dimensions: 1250 x 1250 mm

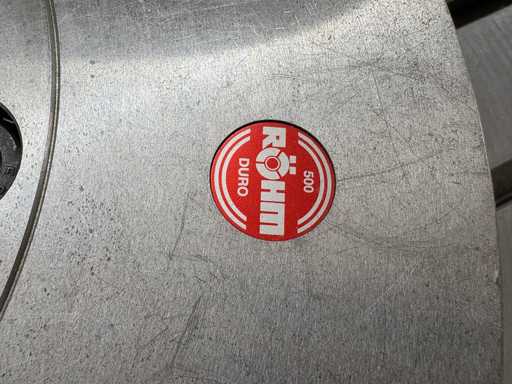

with 9 grooves and an attached RÖHM three-jaw chuck, diameter: 500 mm

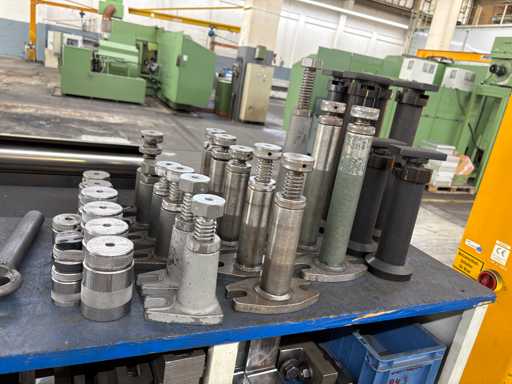

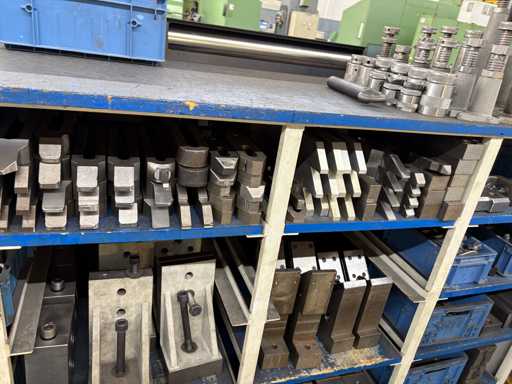

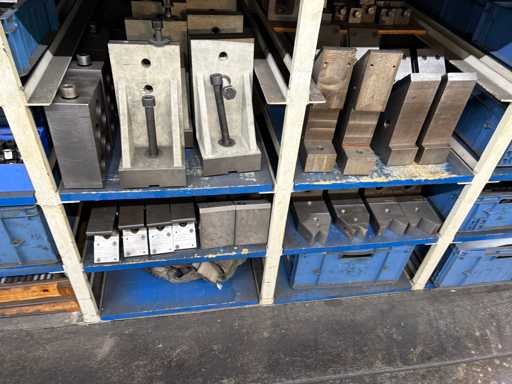

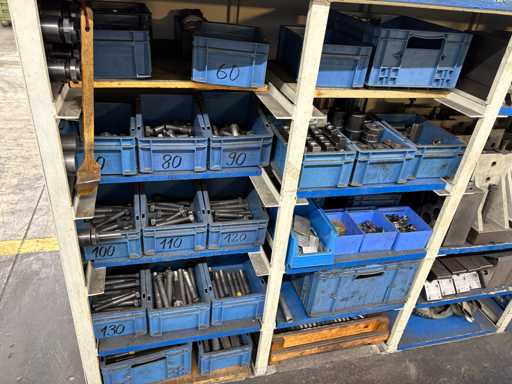

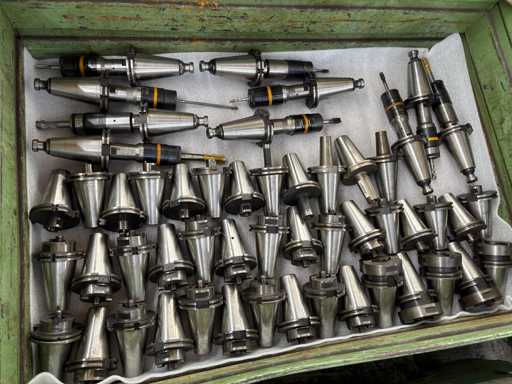

incl. large batch of clamping devices and a large batch of SK 50 tool holders, corresponding carriers

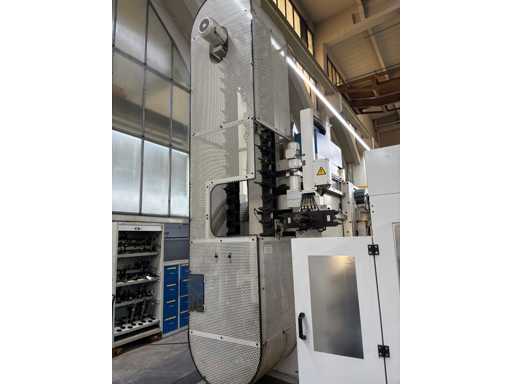

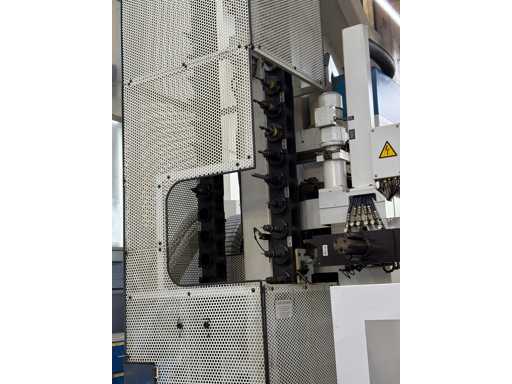

incl. 60-fold tool changer

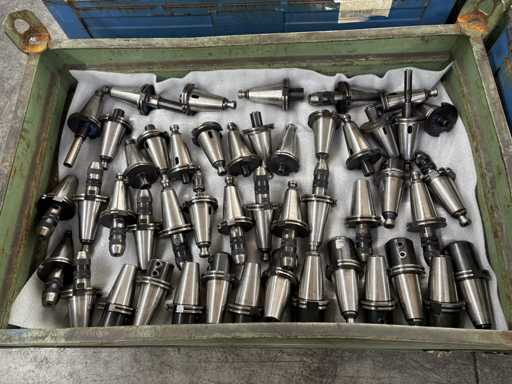

incl. the tool holders in the tool changer shown in the photos
incl. chip conveyor and coolant system
Attention: the machine can be transported on a standard truck with a width of 3000 mm!
Operating voltage: 400 V
Control voltage: 230 V
Frequency: 50 Hz
Rated current: 100 A
Connection: 50 kVA
Control: SIEMENS SINUMERIK 840 C
Travel X-axis: 5000 mm
Travel Y-axis: 1200 mm
Travel Z-axis: 1000 mm
Rapid traverse: 0 - 10 m/min
Feed: 0 - 4 m/min
Speed: from 20 to 2800 rpm
Milling head position vertical/horizontal/middle/horizontal right/horizontal left/horizontal top
Universal milling head particularly suitable for milling with 5-fold spindle positioning Drilling
Table dimensions: 3750 x 1250 mm
with 9 grooves
Tool holder: SK 50
Rotary table dimensions: 1250 x 1250 mm
with 9 grooves and an attached RÖHM three-jaw chuck, diameter: 500 mm

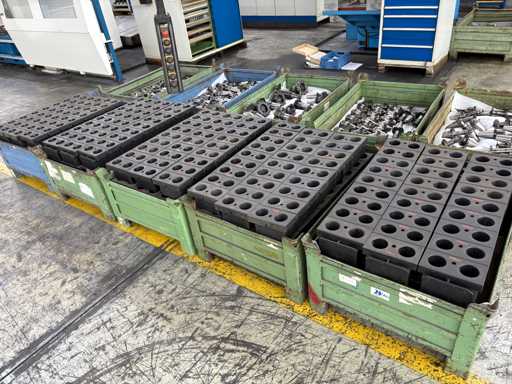

incl. large batch of clamping devices and a large batch of SK 50 tool holders, corresponding carriers
incl. 60-fold tool changer
incl. the tool holders in the tool changer shown in the photos
incl. chip conveyor and coolant system
Attention: the machine can be transported on a standard truck with a width of 3000 mm!
Comentarios
used and untested
Detalles adicionales
Recogida:
02.11. a 04.12.2026 (solo con cita previa)
Visualización:
14.10.2026 a partir de las 9:00
Solo con cita previa en project.de@surplex.com
Ten en cuenta que todos los artículos se venden, usados y no probados, salvo que se indique expresamente lo contrario. La descripción del artículo correspondiente es decisiva.
Para información detallada sobre la garantía y las condiciones de garantía, consulte las condiciones de la subasta.
Nota: La recogida tardía o perdida puede conllevar costes adicionales de almacenamiento, manipulación o desmontaje que son responsabilidad del comprador.
